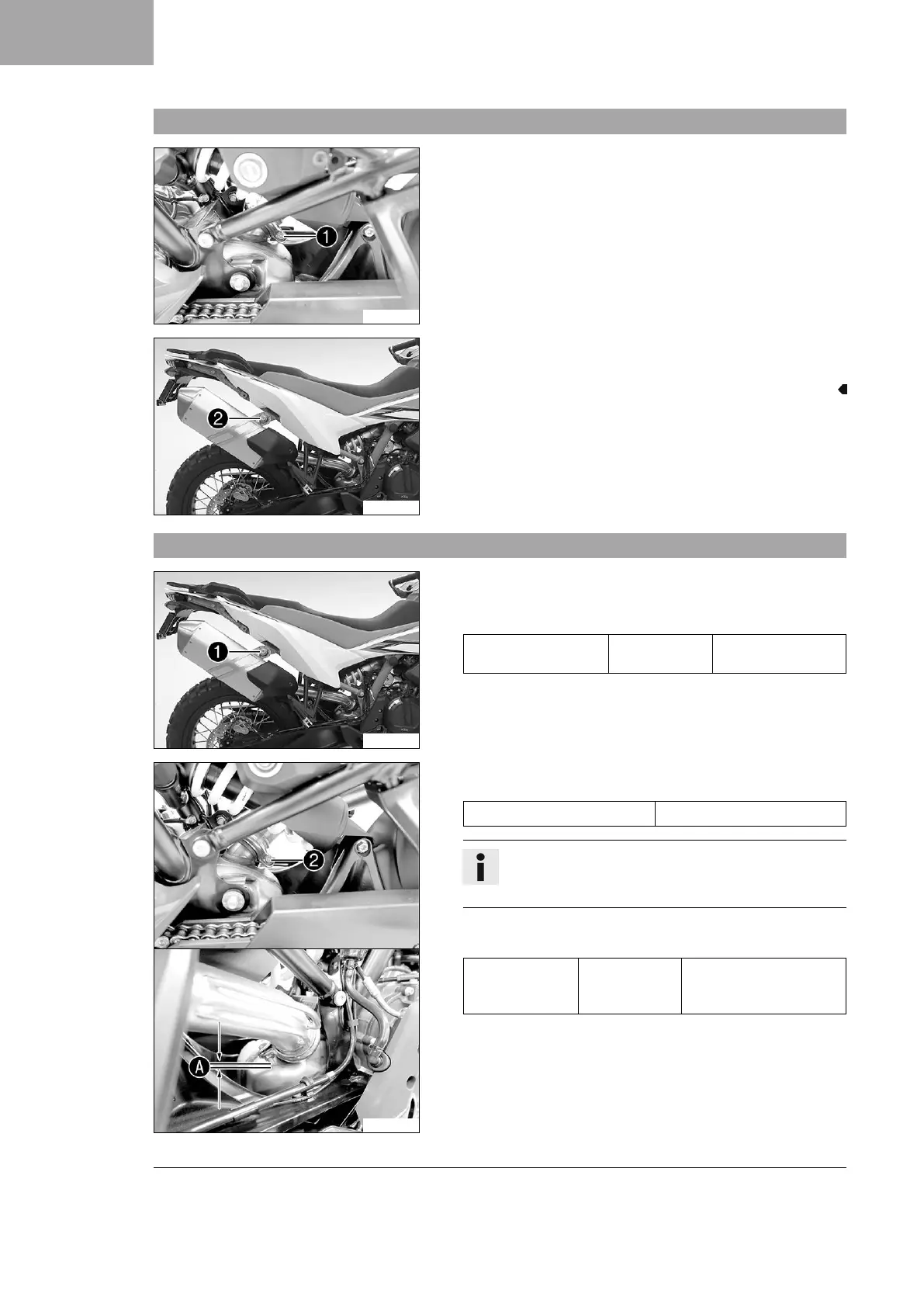

3.12 Removing the main silencer
R06157-10
–
Remove screw
1
.
– Remove the clamp.
R06211-11
–
Remove screw
2
with the washer.
– Take off the main silencer.
3.13 Installing the main silencer
R06211-10
– Position the main silencer with the gasket.
–
Mount screw
1
with the washer, but do not tighten yet.
Guideline
Screw, main silencer
holder
M8 25 Nm (18.4 lbf ft)
R06154-11
– Position the clamp.
Guideline
Distance
A
1 mm (0.04 in)
Info
The clamp must not touch the brake line when the rear
wheel suspension compresses.
–
Mount and tighten screw
2
.
Guideline
Screw, presi-
lencer exhaust
clamp
M6 8 Nm (5.9 lbf ft)
Copper paste
