11 SERVICE WORK ON THE CHASSIS 110
11.27 Removing the underride guard x
Preparatory work
– Raise the vehicle using the center stand. ( p. 86)
100577-10
Main work
– Swing the side stand downward.

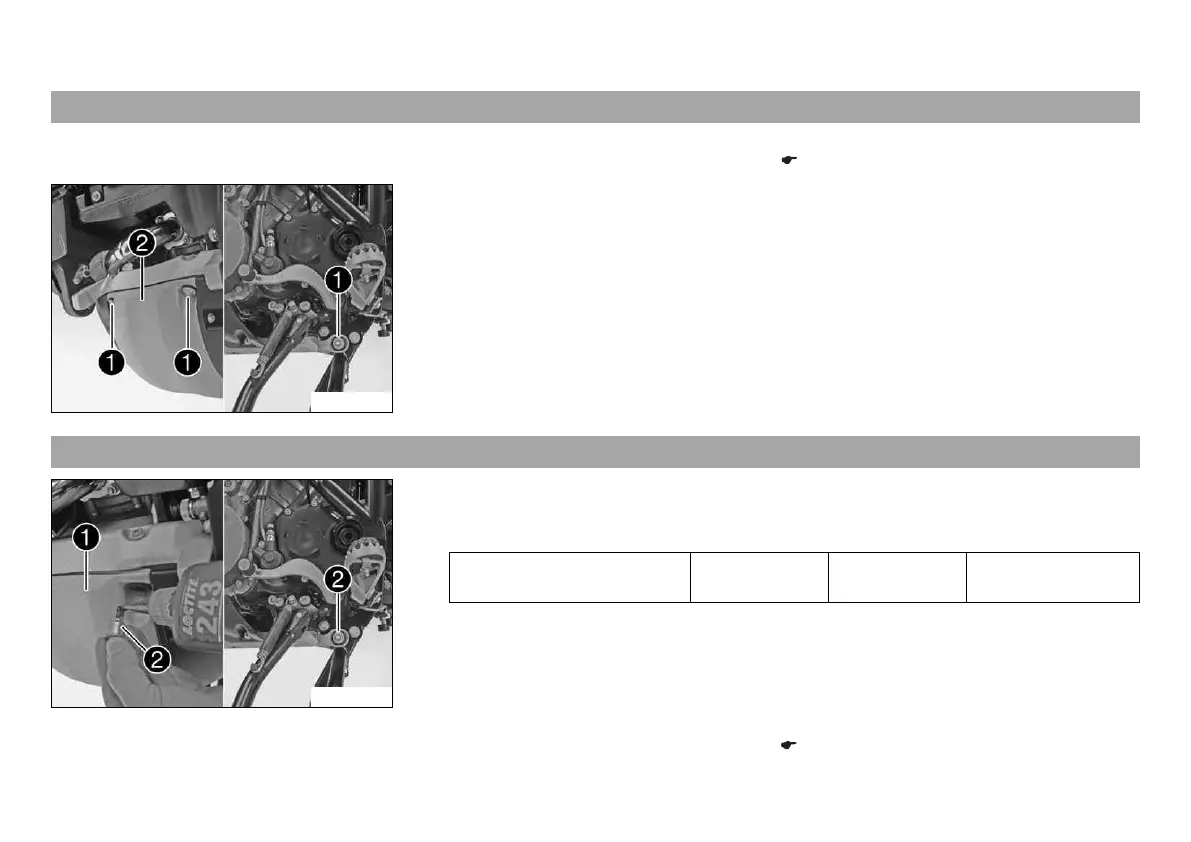

– Remove all four screws 1 and take off underride guard 2.
11.28 Installing the underride guard x
100578-10
Main work
– Position underride guard 1. Mount and tighten screws 2.
Guideline
Screw, underride guard M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Swing up the side stand.
Finishing work
– Raise the vehicle off of the center stand. ( p. 87)
