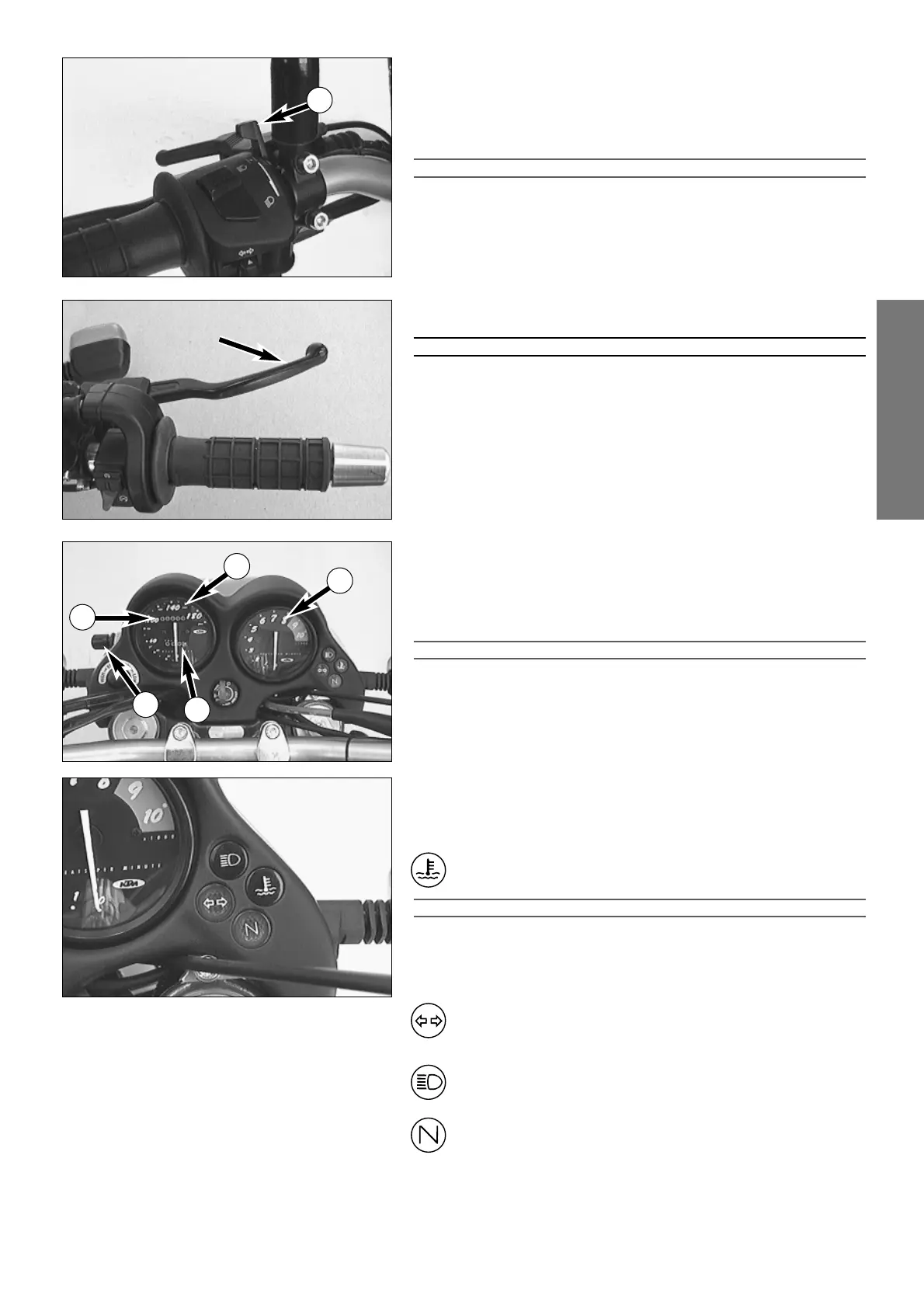

Choke lever
When the choke lever 1 is pulled backwards, a bore is opened in the car-
buretor which enables the engine to draw in additional fuel. This produces
a „rich“ fuel/air mixture necessary for cold start. When the choke lever is
pushed forward as far as it will go, the bore will be closed again. In this
position the choke cable must have a play of approx. 2 mm.
!
CAUTION
!
I
F THERE IS NO PLAY IN THE CHOKE CABLE, THE BORE OF THE COLD STARTER SYSTEM
CANNOT BE COMPLETELY CLOSED
. THIS RESULTS IN HIGH FUEL CONSUMPTION, THE
ENGINE RUNS UNEVENLY WITH EXTREME WEAR OF PISTON AND CYLINDER
.
Hand brake lever
The hand brake lever is mounted on the right side of the handlebar.
WARNING
IF THE RESISTANCE IN THE HAND BRAKE LEVER OR FOOT BRAKE PEDAL FEELS
“SPONGY”
(
NOT ENOUGH RESISTANCE
), THIS IS AN INDICATION THAT SOMETHING IS WRONG WITH
THE BRAKE SYSTEM
. DON’T RIDE YOUR MOTORCYCLE ANYMORE WITHOUT FIRST
HAVING THE BRAKE SYSTEM LOOKED OVER BY A
KTM DEALER.
Speedometer, tachometer
The mileage indicator A in the speedometer 2 indicates overall mileage.
The day mileage indicator B can be set to 0 by means of the setting wheel
C. Turn the setting wheel forward until only zeros can be seen in the display.
The tachometer 3 shows the engine speed in revolutions per minute (rpm).
Do not push the engine into the orange zone, which begins at 8500 rpm.
!
CAUTION
!
–M
AXIMUM RECOMMENDED ROTATION RATE IS 8500 RPM. ROTATION RATES EXCEE-
DING 8500 RPM WILL SHORTEN YOUR ENGINE’S LIFE. REFER ALSO TO THE SECTION
ON RUNNING IN
YOUR MOTORCYCLE TO BE FOUND IN THE
“D
RIVING
I
NSTRUC
-
TIONS
”
CHAPTER
.
–SPEEDOMETER AND TACHOMETER ARE NOT SUPPOSED TO GET IN CONTACT WITH
FUEL
. W
HIPE OFF SPLASHED FUEL ON THE PLASTIC PARTS IMMEDIATELY
, OTHERWISE
THE PLASTIC PARTS MIGHT GET DAMAGED
.
Indicator lamps
The red cooling liquid temperature warning lamp lights up as soon
as the cooling liquid has reached a temperature of approximately
110° C (230° F).
!
CAUTION
!
I
F THE RED COOLING LIQUID TEMPERATURE WARNING LAMP LIGHTS UP WHILE
YOU ARE DRIVING
, THE COOLING SYSTEM IS PROBABLY DEFECT. IMMEDIATELY
STOP THE ENGINE AND CHECK THE COOLING LIQUID LEVEL
(SEE PAGE 26). DRI-
VING WITH THE WARNING LAMP ON WILL CAUSE ENGINE DAMAGE.
The green indicator lamp flashes when the flasher light is working in
the same rhythm as the flasher light. Faster flashing of the flasher
control lamp indicates a defect bulb
The blue indicator lamp lights up when the high beam is on.
The green indicator lamp lights up when the gear is switched to idle
(neutral).
