KTM DUKE 640 e - Ignition Lock, Steering Lock; Combination Switch; Starter Tip Switch, Emergency off Switch

ENGLISH
6

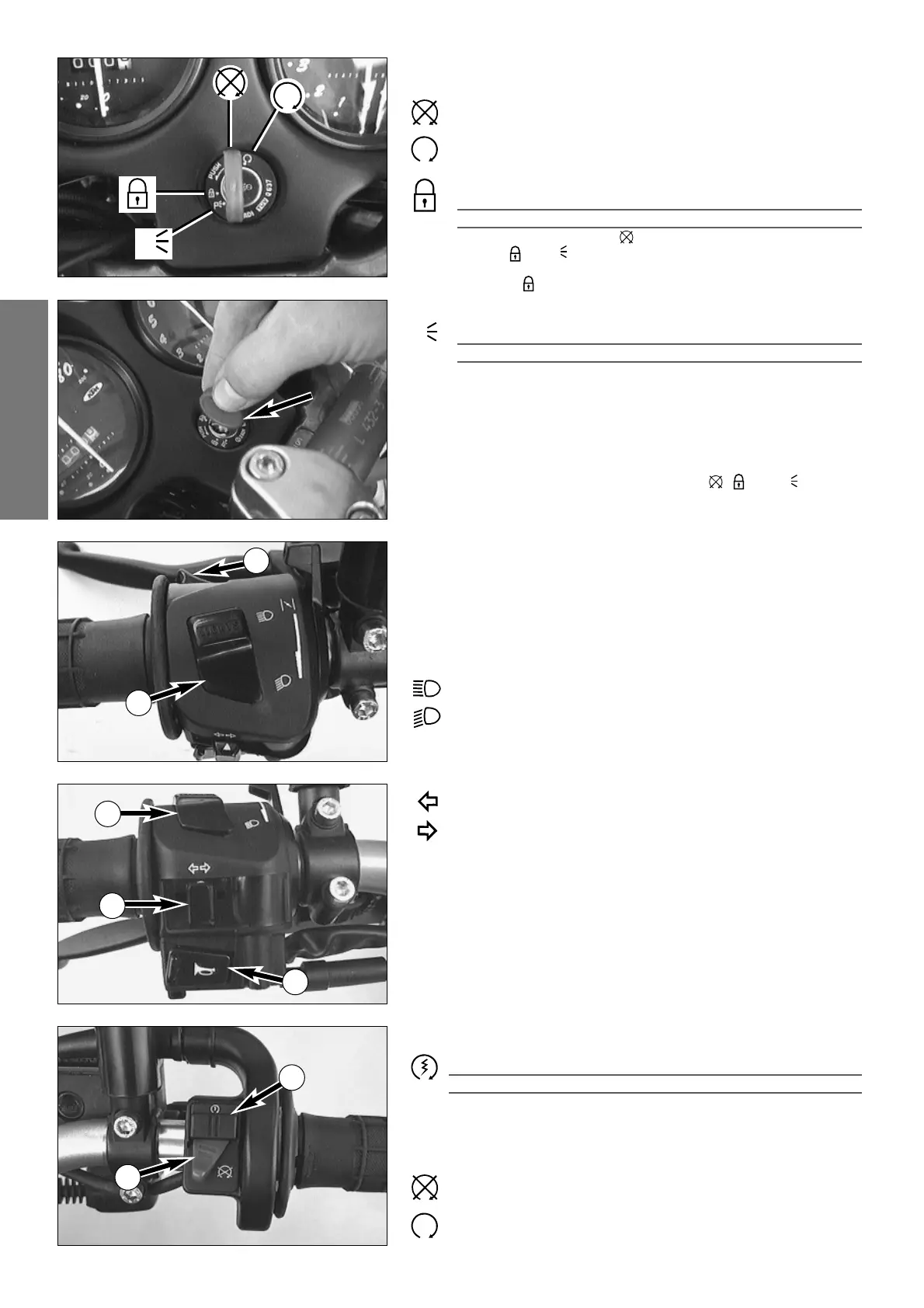

Ignition lock, steering lock
There are four positions to this lock. They are:
= ignition off, light off
= ignition on,– engine turned off: just parking light is on
– engine running: parking light and headlight on
= ignition off, light off, handlebar locked
!
CAUTION
!
BRIEFLY PRESS THE KEY IN THE POSITION IN ORDER TO TURN THE IGNITION
LOCK TO OR
. THE HANDLEBAR CAN BE LOCKED BY TURNING IT FIRST
INTO THE EXTREME LEFT OR RIGHT POSITION AND THEN TURNING THE IGNITION
KEY TO THE POSITION
.
IMPORTANT: Do not push the ignition key into the keyhole while
switching positions.
= ignition off, parking light on, handlebar locked
!
CAUTION
!
D
O NOT LEAVE THE PARKING LIGHT ON FOR MORE THAN THREE HOURS WITH
THE ENGINE OFF
. OTHERWISE YOU WILL NOT BE ABLE TO START THE ENGINE
WITH THE ELECTRIC STARTER
.
A
DDITIONALLY, THE BATTERY IS DISCHARGED BELOW THE NORMAL LEVEL AND
THEREBY DAMAGED
. IN THIS CASE, THE BATTERY SHOULD BE RECHARGED AS
SOON AS POSSIBLE
.
The ignition key can be removed in the positions , , and .
Combination switch
The rocker switch 1 actuates the high beam and low beam.
= High-beam light
= Low-beam light
The switch
2 returns to central position after actuation. Press flasher
switch towards switch housing to switch off the flasher.
= Flasher left
= Flasher right
The horn is sounded with button
3.
The light signal (high beam) is actuated with button
4.
NOTE: The engine must be running in order to be able to check that all
current consumers are functioning correctly.
Starter tip switch, emergency OFF switch
Use the starter tip switch 5 to operate the electric starter.
!
CAUTION
!
M
AXIMUM PERIOD FOR CONTINUOUS STARTING: 5 SECONDS. WAIT AT LEAST 5
SECONDS BEFORE TRYING AGAIN.
The emergency off switch
6 is mainly a safety and emergency switch and
should normally be on.
If this symbol is visible on the switch, the engine can be started (i.e.
the ignition circuit and the starter circuit are switched on).
If this symbol is visible on the switch, the engine can not be started
(i.e. the ignition circuit and the starter circuit are interrupted).
