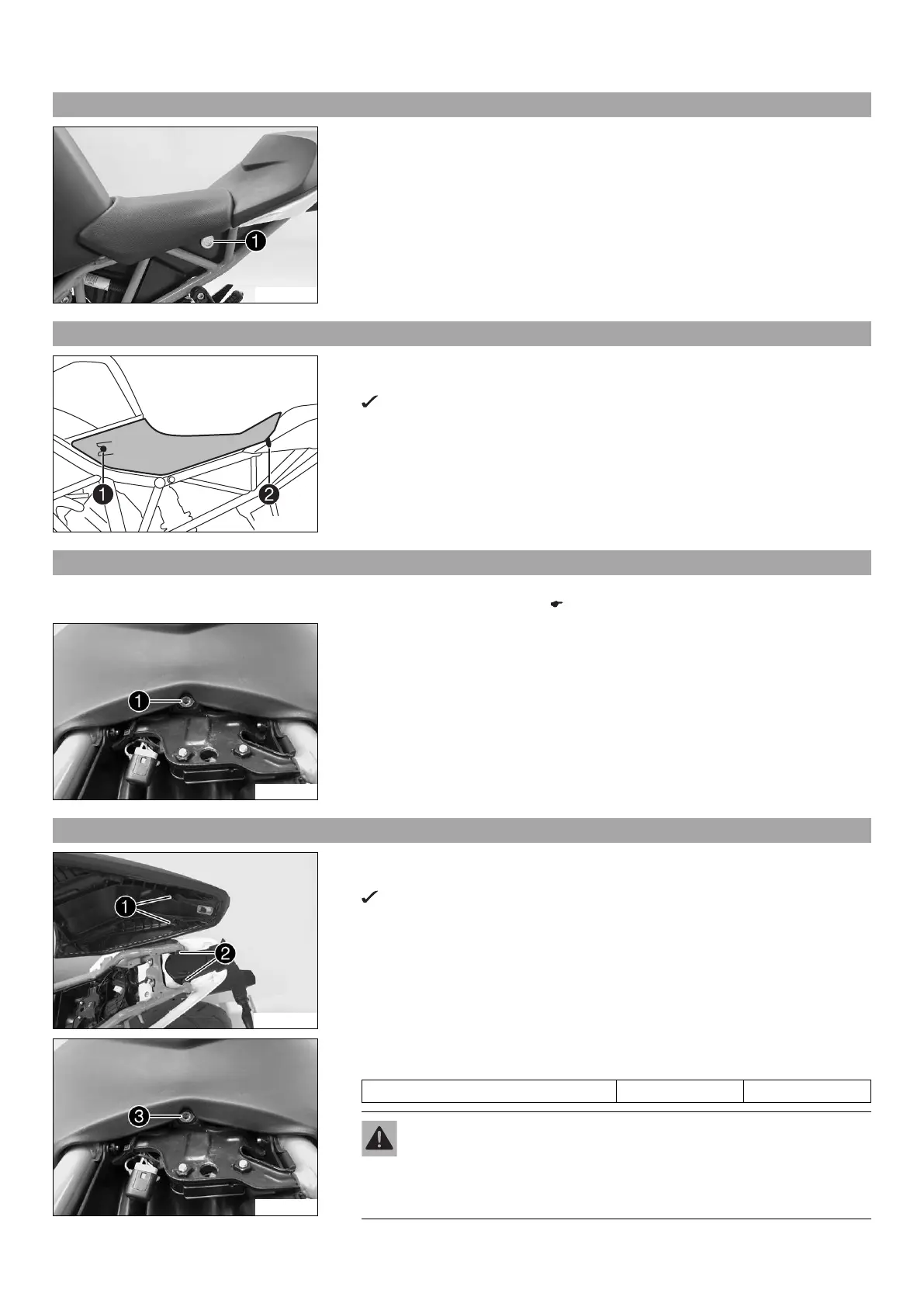

3 WORK 5
3.1 Removing the front rider's seat
L02118-10
–
Insert the ignition key in seat lock
and turn it clockwise.
– Raise the rear of the front rider's seat, pull it toward the rear, and remove it
upward.
– Remove the ignition key from the seat lock.
3.2 Mounting the front rider's seat
401921-10
–
Attach recesses
on the front rider's seat to the fuel tank, push the front rider's
seat forward, and lower at the rear.
Catch
engages in the recess.
– Check that the front rider's seat is correctly mounted.
3.3 Removing the passenger seat
Preparatory work
– Remove the front rider's seat. ( p. 5)
L02191-10
Main work
–
Remove screw
with the washer.
– Lift and take off the passenger seat.
3.4 Mounting the passenger seat
G01073-10
Main work
– Position the passenger seat.
Both hooks
engage in the holders
.
– Lower the passenger seat and push back.
L02191-11
–
Mount and tighten screw
with the washer.
Guideline
Screw, passenger seat M6 7 Nm (5.2 lbf ft)
Warning
Danger of accidents The passenger seat can come loose from the anchoring
if it is not mounted correctly.
– After mounting the passenger seat, check that it is locked correctly by
pulling up.
