KTM Supermoto 690 User Manual

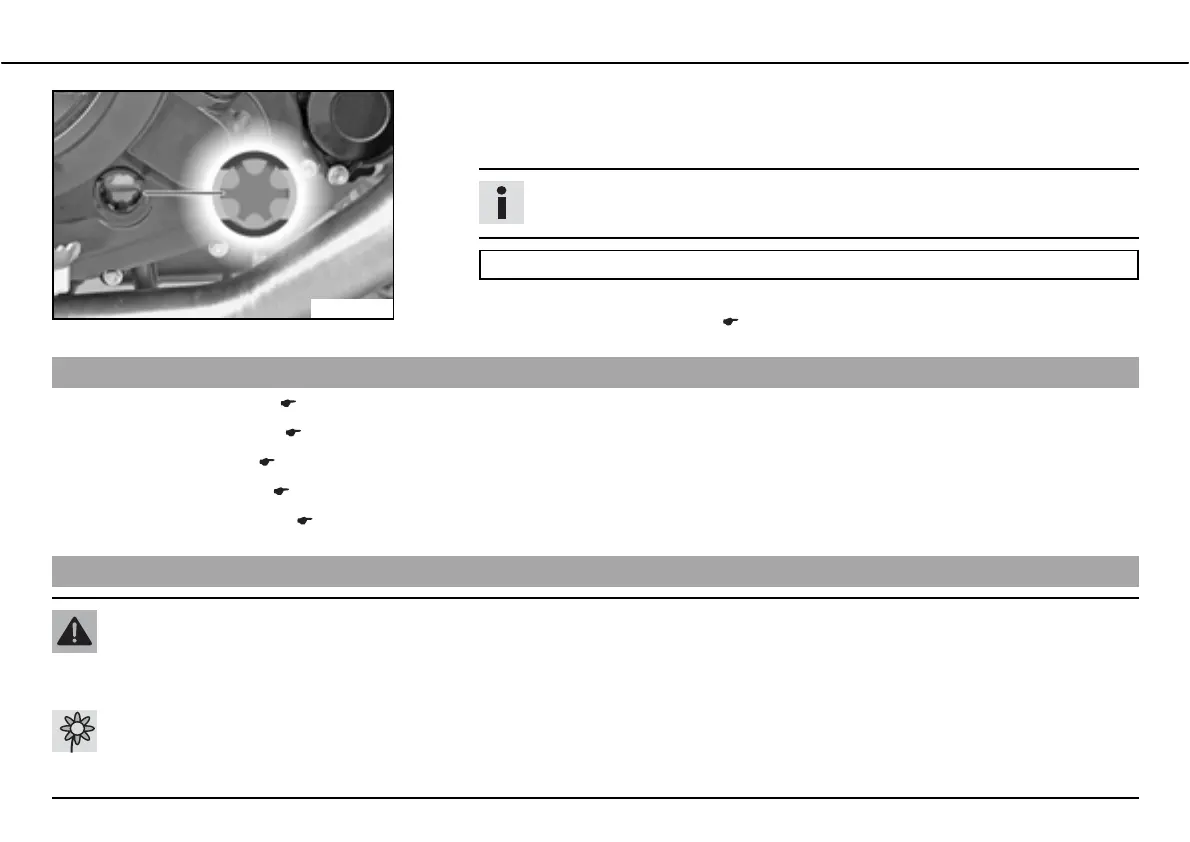

MAINTENANCE WORK ON CHASSIS AND ENGINE 118
700113-01
Condition
The engine is at operating temperature.
ದ Check the engine oil level.
Info
After switching off the engine, wait for one minute and then check.
The engine oil must be between the lower and upper edge of the oil level viewer.
» If the engine oil level is not at the specified level:
ದ Top up the engine oil. ( P. 124)
Changing engine oil and oil filter, cleaning oil screensbx
ದ
Drain the engine oil.b
x ( P. 118)
ದ
Remove the oil filter.b
x ( P. 120)
ದ
Clean oil screens.b
x ( P. 121)
ದ
Mount the oil filter.b
x ( P. 121)
ದ
Fill up with engine oil.bx ( P. 123)
Draining engine oilbx
Warning
Danger of scaldingಘEngine oil and gear oil get very hot when the motocycle is driven.
ದ Wear suitable protective clothing and gloves. If you scald yourself, hold the affected area under cold water immediately.
Warning
Environmental hazardಘProblem materials cause environmental damage.
ದ Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.

KTM Supermoto 690 Specifications

General

Compression Ratio	12.7:1
Transmission	6-speed
Engine Type	Single cylinder, 4-stroke
Power Output	74 hp (55 kW) @ 8000 rpm
Torque	73.5 Nm @ 6, 500 rpm
Starter	Electric
Rear Suspension	WP monoshock
Front Brake	320 mm disc, 4-piston caliper
Rear Brake	240 mm disc, single-piston caliper
Front Wheel	17 inch
Rear Wheel	17 inch
Seat Height	890 mm
Fuel Tank Capacity	13.5 l
Fuel System	Electronic fuel injection
Frame	Chrome-molybdenum trellis frame, powder coated
