MAINTENANCE WORK ON CHASSIS AND ENGINE 57

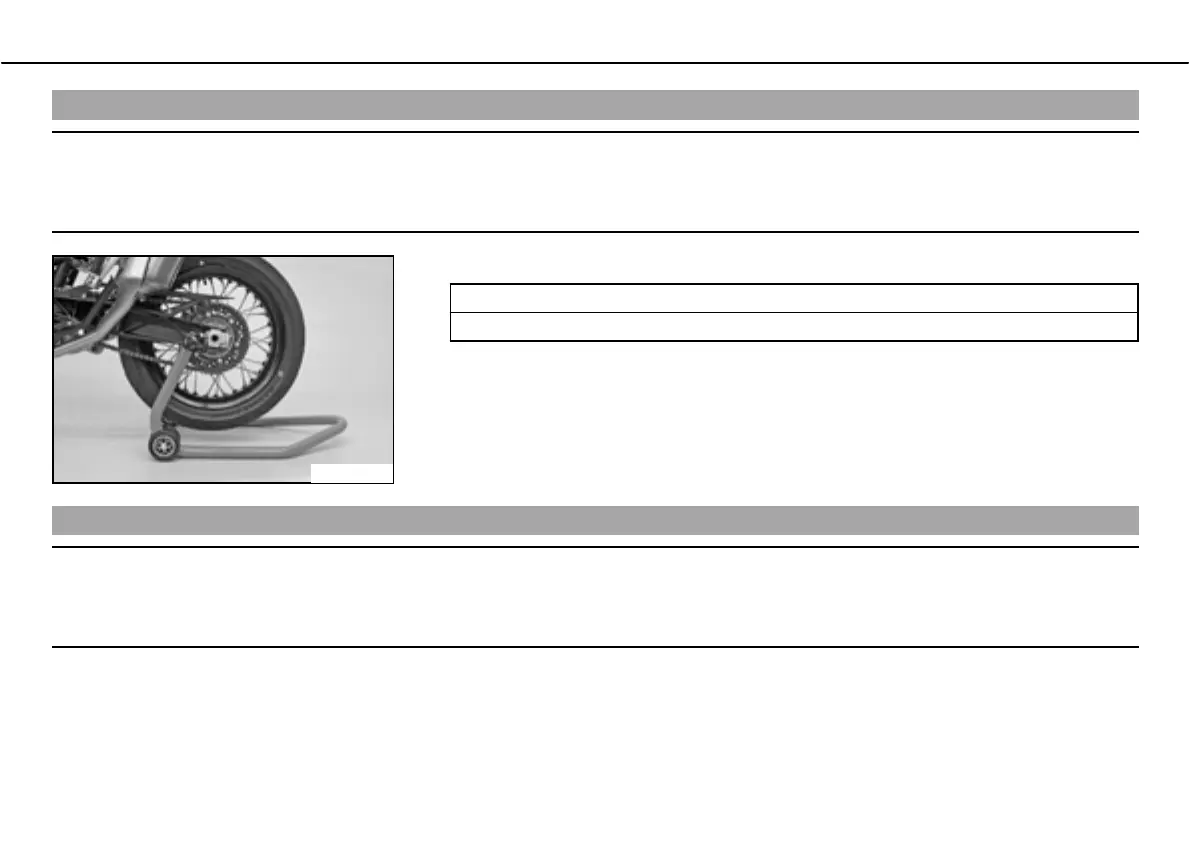

Jacking up rear of motorcycle
Note
Danger of damageಘDanger of damage by the vehicle running away or falling over.
ದ Always place the vehicle on a firm and even surface.
500095-01
ದ Insert the work stand adapter in the work stand and screw it into the link forks.
Work stand adapter (61029055110)
Work stand rear (61029055100)
ದ Stand the motorcycle upright, align the work stand to the rear, and jack up the motorcy-
cle.
Take the rear from the work stand.
Note
Danger of damageಘDanger of damage by the vehicle running away or falling over.
ದ Always place the vehicle on a firm and even surface.
ದ Secure the motorcycle against falling over.
ದ Remove the work stand from the rear and lean the vehicle on the side stand.

KTM Supermoto 690 Specifications

General

Compression Ratio	12.7:1
Transmission	6-speed
Engine Type	Single cylinder, 4-stroke
Power Output	74 hp (55 kW) @ 8000 rpm
Torque	73.5 Nm @ 6, 500 rpm
Starter	Electric
Rear Suspension	WP monoshock
Front Brake	320 mm disc, 4-piston caliper
Rear Brake	240 mm disc, single-piston caliper
Front Wheel	17 inch
Rear Wheel	17 inch
Seat Height	890 mm
Fuel Tank Capacity	13.5 l
Fuel System	Electronic fuel injection
Frame	Chrome-molybdenum trellis frame, powder coated
