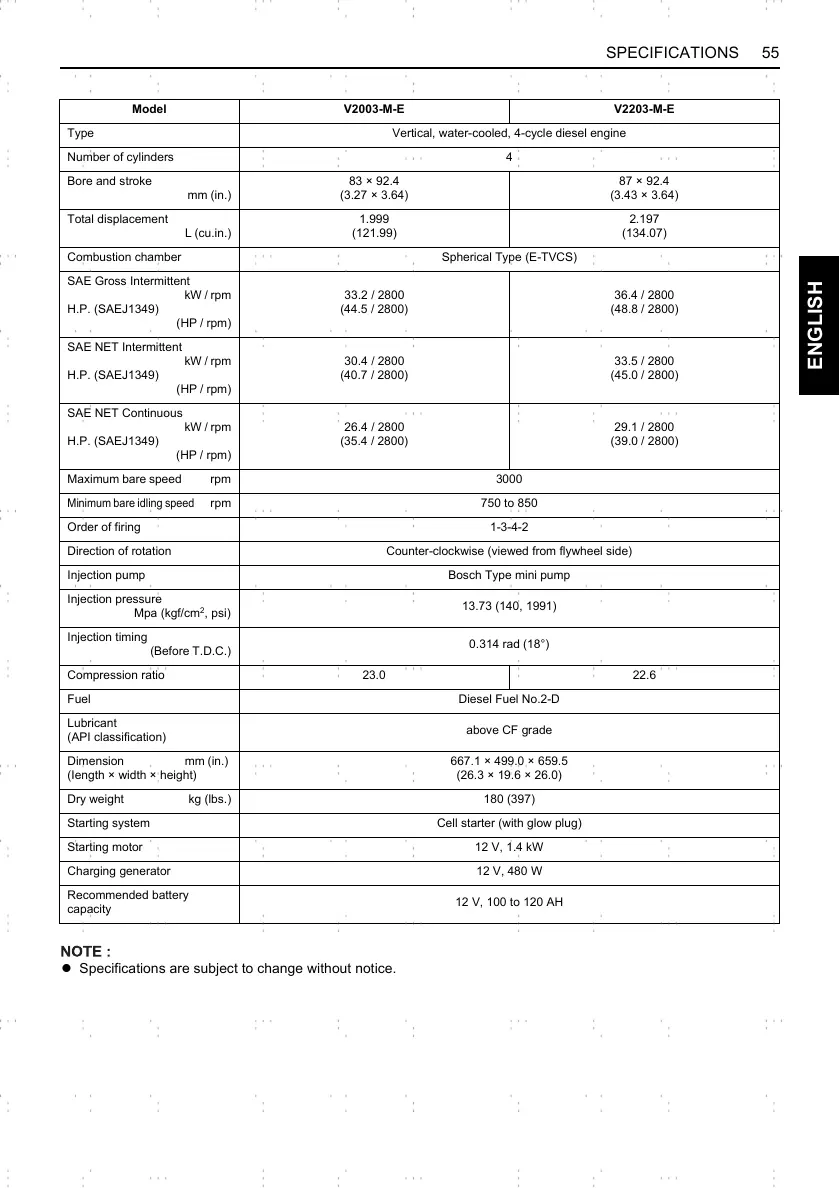

55SPECIFICATIONS
ENGLISH
A Specifications are subject to change without notice.
Model V2003-M-E V2203-M-E
Type Vertical, water-cooled, 4-cycle diesel engine
Number of cylinders 4
Bore and stroke
mm (in.)
83 × 92.4
(3.27 × 3.64)
87 × 92.4
(3.43 × 3.64)
Total displacement
L (cu.in.)
1.999
(121.99)
2.197
(134.07)
Combustion chamber Spherical Type (E-TVCS)
SAE Gross Intermittent
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
33.2 / 2800
(44.5 / 2800)
36.4 / 2800
(48.8 / 2800)
SAE NET Intermittent
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
30.4 / 2800
(40.7 / 2800)
33.5 / 2800
(45.0 / 2800)
SAE NET Continuous
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
26.4 / 2800
(35.4 / 2800)
29.1 / 2800
(39.0 / 2800)
Maximum bare speed rpm 3000
Minimum bare idling speed rpm 750 to 850
Order of firing 1-3-4-2
Direction of rotation Counter-clockwise (viewed from flywheel side)
Injection pump Bosch Type mini pump
Injection pressure
Mpa (kgf/cm
2
, psi)
13.73 (140, 1991)
Injection timing
(Before T.D.C.)
0.314 rad (18°)
Compression ratio 23.0 22.6
Fuel Diesel Fuel No.2-D
Lubricant
(API classification)
above CF grade
Dimension mm (in.)
(Iength × width × height)
667.1 × 499.0 × 659.5
(26.3 × 19.6 × 26.0)
Dry weight kg (lbs.) 180 (397)
Starting system Cell starter (with glow plug)
Starting motor 12 V, 1.4 kW
Charging generator 12 V, 480 W
Recommended battery
capacity
12 V, 100 to 120 AH
