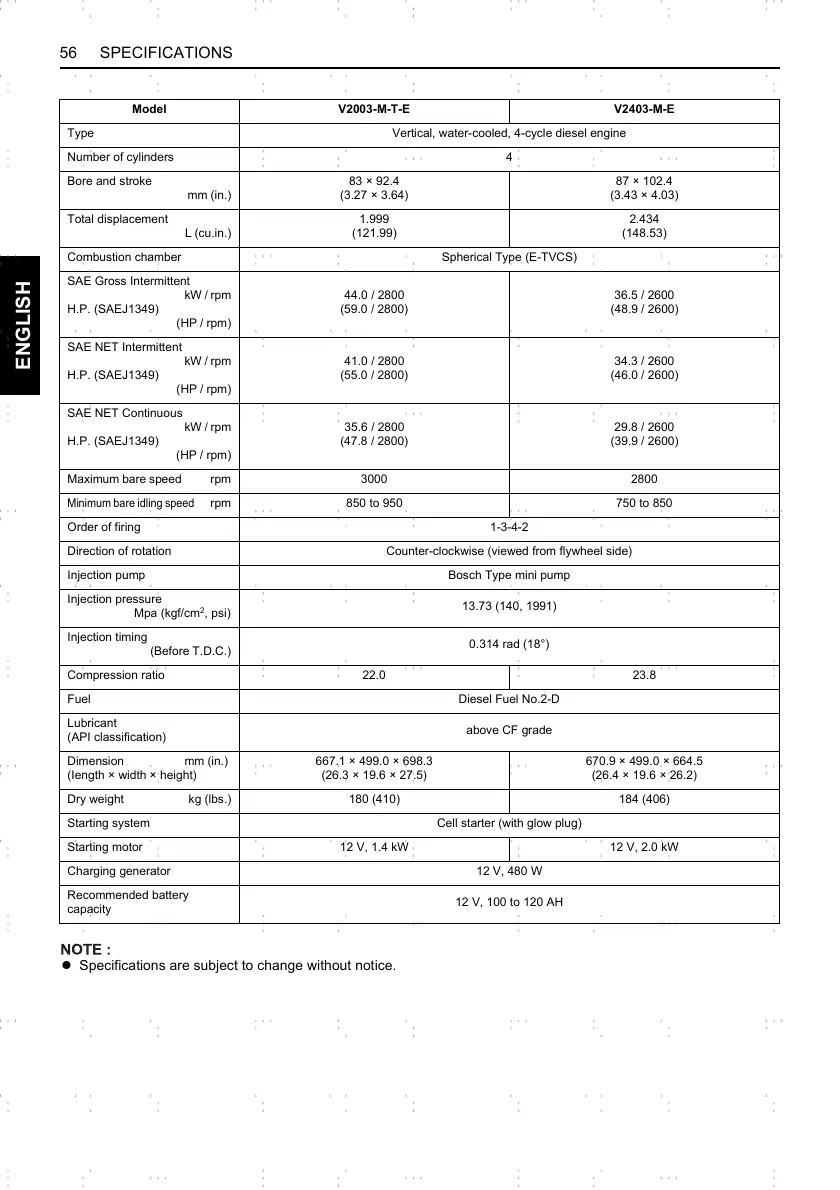

56 SPECIFICATIONS
ENGLISH
A Specifications are subject to change without notice.
Model V2003-M-T-E V2403-M-E
Type Vertical, water-cooled, 4-cycle diesel engine
Number of cylinders 4
Bore and stroke
mm (in.)
83 × 92.4
(3.27 × 3.64)
87 × 102.4
(3.43 × 4.03)
Total displacement
L (cu.in.)
1.999
(121.99)
2.434
(148.53)
Combustion chamber Spherical Type (E-TVCS)
SAE Gross Intermittent
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
44.0 / 2800
(59.0 / 2800)
36.5 / 2600
(48.9 / 2600)
SAE NET Intermittent
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
41.0 / 2800
(55.0 / 2800)
34.3 / 2600
(46.0 / 2600)
SAE NET Continuous
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
35.6 / 2800
(47.8 / 2800)
29.8 / 2600
(39.9 / 2600)
Maximum bare speed rpm 3000 2800
Minimum bare idling speed rpm 850 to 950 750 to 850
Order of firing 1-3-4-2
Direction of rotation Counter-clockwise (viewed from flywheel side)
Injection pump Bosch Type mini pump
Injection pressure
Mpa (kgf/cm
2
, psi)
13.73 (140, 1991)
Injection timing
(Before T.D.C.)
0.314 rad (18°)
Compression ratio 22.0 23.8
Fuel Diesel Fuel No.2-D
Lubricant
(API classification)
above CF grade
Dimension mm (in.)
(Iength × width × height)
667.1 × 499.0 × 698.3
(26.3 × 19.6 × 27.5)
670.9 × 499.0 × 664.5
(26.4 × 19.6 × 26.2)
Dry weight kg (lbs.) 180 (410) 184 (406)
Starting system Cell starter (with glow plug)
Starting motor 12 V, 1.4 kW 12 V, 2.0 kW
Charging generator 12 V, 480 W
Recommended battery
capacity
12 V, 100 to 120 AH
