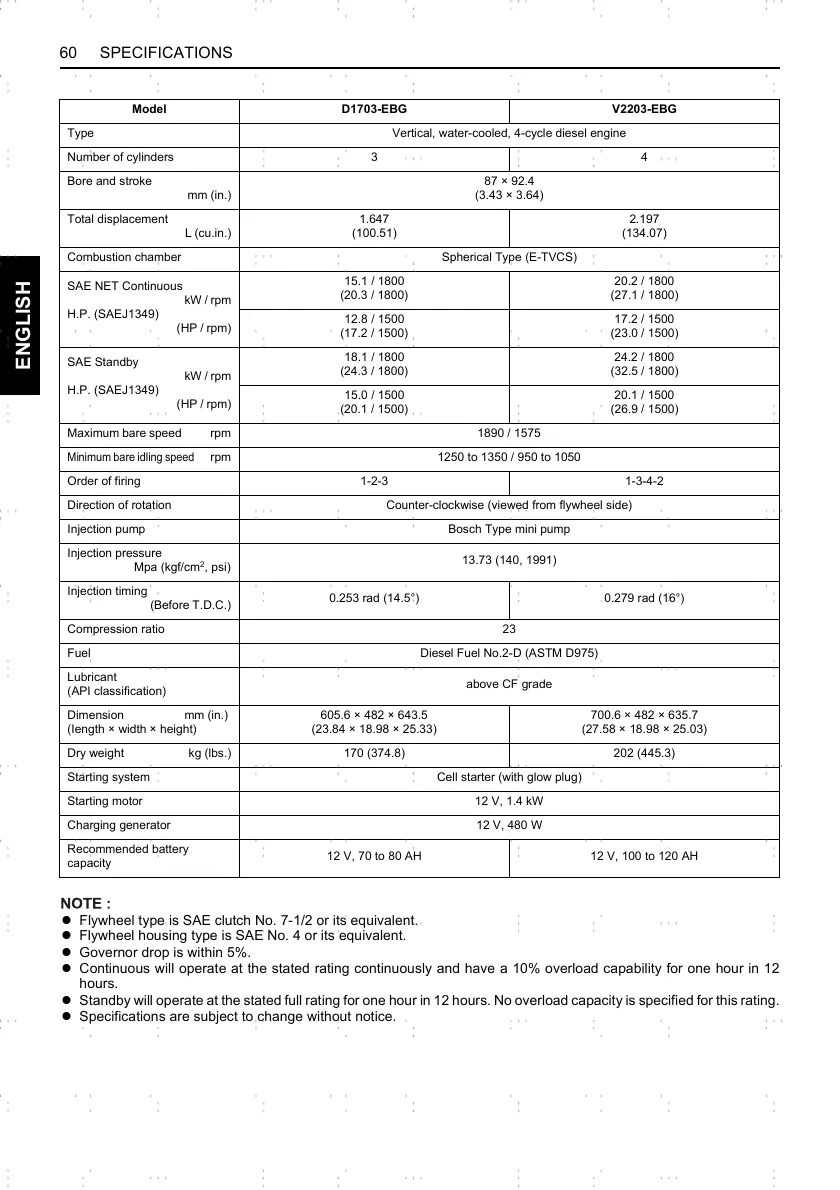

60 SPECIFICATIONS
ENGLISH
A Flywheel type is SAE clutch No. 7-1/2 or its equivalent.
A Flywheel housing type is SAE No. 4 or its equivalent.
A Governor drop is within 5%.
A Continuous will operate at the stated rating continuously and have a 10% overload capability for one hour in 12
hours.
A Standby will operate at the stated full rating for one hour in 12 hours. No overload capacity is specified for this rating.
A Specifications are subject to change without notice.
Model D1703-EBG V2203-EBG
Type Vertical, water-cooled, 4-cycle diesel engine
Number of cylinders 3 4
Bore and stroke
mm (in.)
87 × 92.4
(3.43 × 3.64)
Total displacement
L (cu.in.)
1.647
(100.51)
2.197
(134.07)
Combustion chamber Spherical Type (E-TVCS)
SAE NET Continuous
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
15.1 / 1800
(20.3 / 1800)
20.2 / 1800
(27.1 / 1800)
12.8 / 1500
(17.2 / 1500)
17.2 / 1500
(23.0 / 1500)
SAE Standby
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
18.1 / 1800
(24.3 / 1800)
24.2 / 1800
(32.5 / 1800)
15.0 / 1500
(20.1 / 1500)
20.1 / 1500
(26.9 / 1500)
Maximum bare speed rpm 1890 / 1575
Minimum bare idling speed
rpm 1250 to 1350 / 950 to 1050
Order of firing 1-2-3 1-3-4-2
Direction of rotation Counter-clockwise (viewed from flywheel side)
Injection pump Bosch Type mini pump
Injection pressure
Mpa (kgf/cm
2
, psi)
13.73 (140, 1991)
Injection timing
(Before T.D.C.)
0.253 rad (14.5°) 0.279 rad (16°)
Compression ratio 23
Fuel Diesel Fuel No.2-D (ASTM D975)
Lubricant
(API classification)
above CF grade
Dimension mm (in.)
(Iength × width × height)
605.6 × 482 × 643.5
(23.84 × 18.98 × 25.33)
700.6 × 482 × 635.7
(27.58 × 18.98 × 25.03)
Dry weight kg (lbs.) 170 (374.8) 202 (445.3)
Starting system Cell starter (with glow plug)
Starting motor 12 V, 1.4 kW
Charging generator 12 V, 480 W
Recommended battery
capacity
12 V, 70 to 80 AH 12 V, 100 to 120 AH
