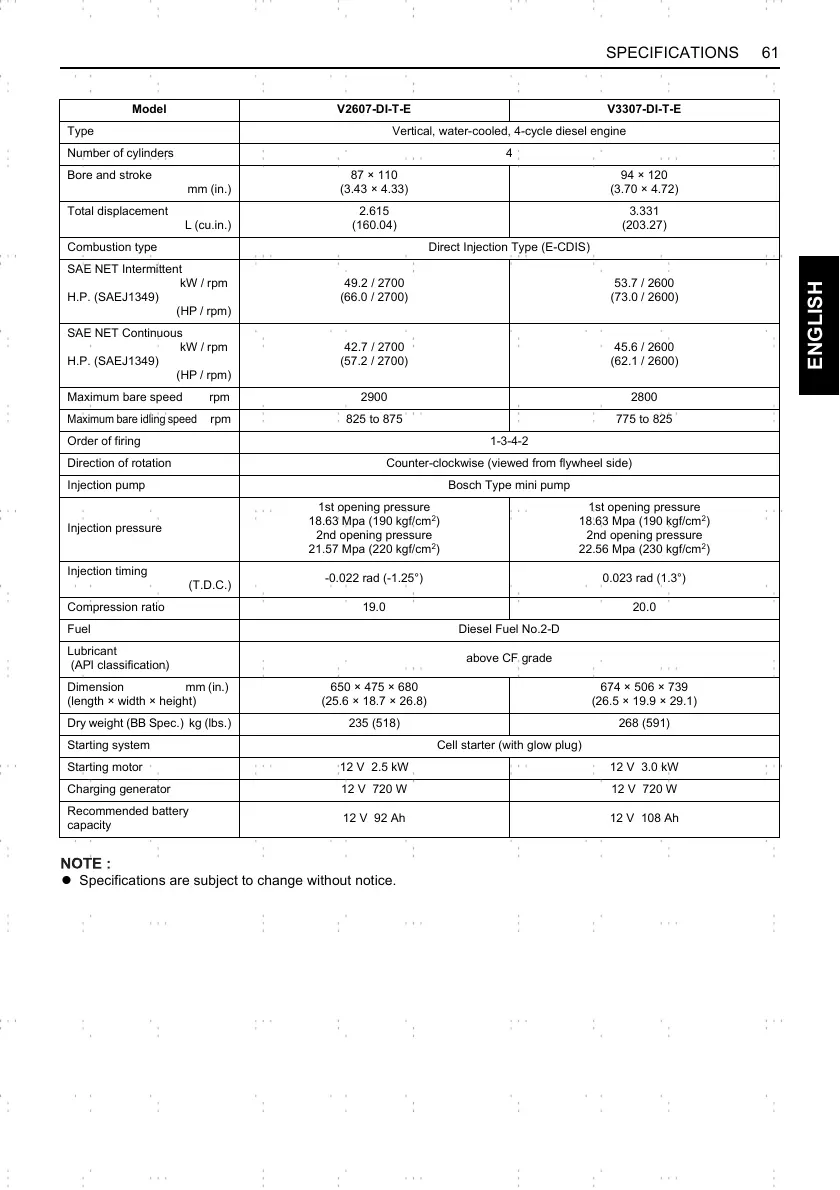

61SPECIFICATIONS
ENGLISH
A Specifications are subject to change without notice.
Model V2607-DI-T-E V3307-DI-T-E
Type Vertical, water-cooled, 4-cycle diesel engine
Number of cylinders 4
Bore and stroke
mm (in.)
87 × 110
(3.43 × 4.33)
94 × 120
(3.70 × 4.72)
Total displacement
L (cu.in.)
2.615
(160.04)
3.331
(203.27)
Combustion type Direct Injection Type (E-CDIS)
SAE NET Intermittent
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
49.2 / 2700
(66.0 / 2700)
53.7 / 2600
(73.0 / 2600)
SAE NET Continuous
kW / rpm
H.P. (SAEJ1349)
(HP / rpm)
42.7 / 2700
(57.2 / 2700)
45.6 / 2600
(62.1 / 2600)
Maximum bare speed rpm 2900 2800
Maximum bare idling speed rpm 825 to 875 775 to 825
Order of firing 1-3-4-2
Direction of rotation Counter-clockwise (viewed from flywheel side)
Injection pump Bosch Type mini pump
Injection pressure
1st opening pressure
18.63 Mpa (190 kgf/cm
2
)
2nd opening pressure
21.57 Mpa (220 kgf/cm
2
)
1st opening pressure
18.63 Mpa (190 kgf/cm
2
)
2nd opening pressure
22.56 Mpa (230 kgf/cm
2
)
Injection timing
(T.D.C.)
-0.022 rad (-1.25°) 0.023 rad (1.3°)
Compression ratio 19.0 20.0
Fuel Diesel Fuel No.2-D
Lubricant
(API classification)
above CF grade
Dimension m m (in.)
(length × width × height)
650 × 475 × 680
(25.6 × 18.7 × 26.8)
674 × 506 × 739
(26.5 × 19.9 × 29.1)
Dry weight (BB Spec.) kg (lbs.) 235 (518) 268 (591)
Starting system Cell starter (with glow plug)
Starting motor 12 V 2.5 kW 12 V 3.0 kW
Charging generator 12 V 720 W 12 V 720 W
Recommended battery
capacity
12 V 92 Ah 12 V 108 Ah
