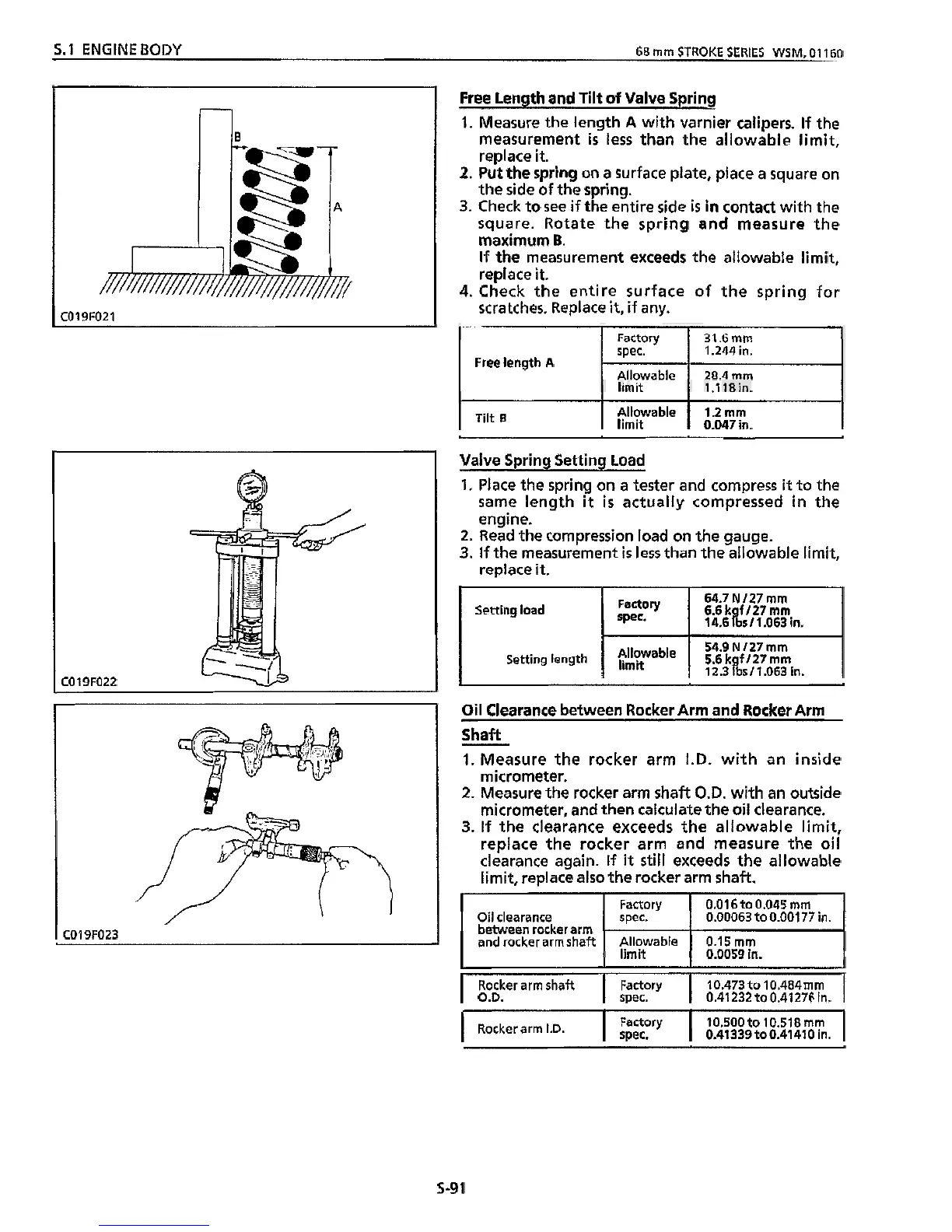

S.1
ENGINE
BODY
68
mm
STROKE
SERIES
WSM,
01 160
I
C019F021
C019F022
I
C019F023
Free Length and
Tilt
of
Valve Spring
1.
Measure the length
A
with varnier calipers.
If
the
measurement
is
less
than
the allowable limit,
replace
it.
2.
Put the spring on
a
surface plate, place
a
square on
the
side
of
the spring.
3.
Check to
see
if
the entire side
is
in contact with the
square. Rotate
the
spring and measure the
maximum
B.
If
the measurement exceeds
the
allowable limit,
replace
it.
4.
Check the entire surface of the spring
for
scratches. Replace
it,
if any.
Freelength
A
limit 1.1 18 in.
I
1
Allowable 1.2
mm
limit
I
0.047 in.
I
Tilt
B
~~
Valve Spring Setting Load
1.
Place the spring on a tester and compress
it
to the
same length
it
is
actually compressed
in
the
engine.
2.
Read
the
compression load on
the
gauge.
3.
If
the measurement
is
less
than
the allowable limit,
replace
it.
Factory 64.7
N
127
mm
spec.
6.6k
f127mm
14.6bs11.063 in,
54.9
N
127
mm
Setting length
tZyble
5.6 kgf 127
mrn
t-H
12.3 lbs11.063 in.
Setting load
Oil Clearance between Rocker Arm and Rocker
Arm
Shaft
1.
Measure
the
rocker arm
I.D.
with
an inside
micrometer.
2.
Measure the rocker arm shaft
O.D.
with an outside
micrometer, and then calculate the
oil
clearance.
3.
If
the clearance exceeds the allowable limit,
replace the rocker arm and measure the oil
clearance again.
If
it
still
exceeds the allowable
limit, replace also the rocker arm
shaft.
Oil clearance
between rocker arm
limit 0.0059 in.
Rocker arm shaft Factory 10.473
to
10.484mm
O.D.
spec. 0.41232
to
0.41276
in.
I
I
Factory
I
10.500to 10.518
mm
spec. 0.41339 to0.41410 in.
I
Rocker arm
I.D.
s-9
1
