G-26
M6800 · M6800S · M8200 · M9000, WSM
G GENERAL

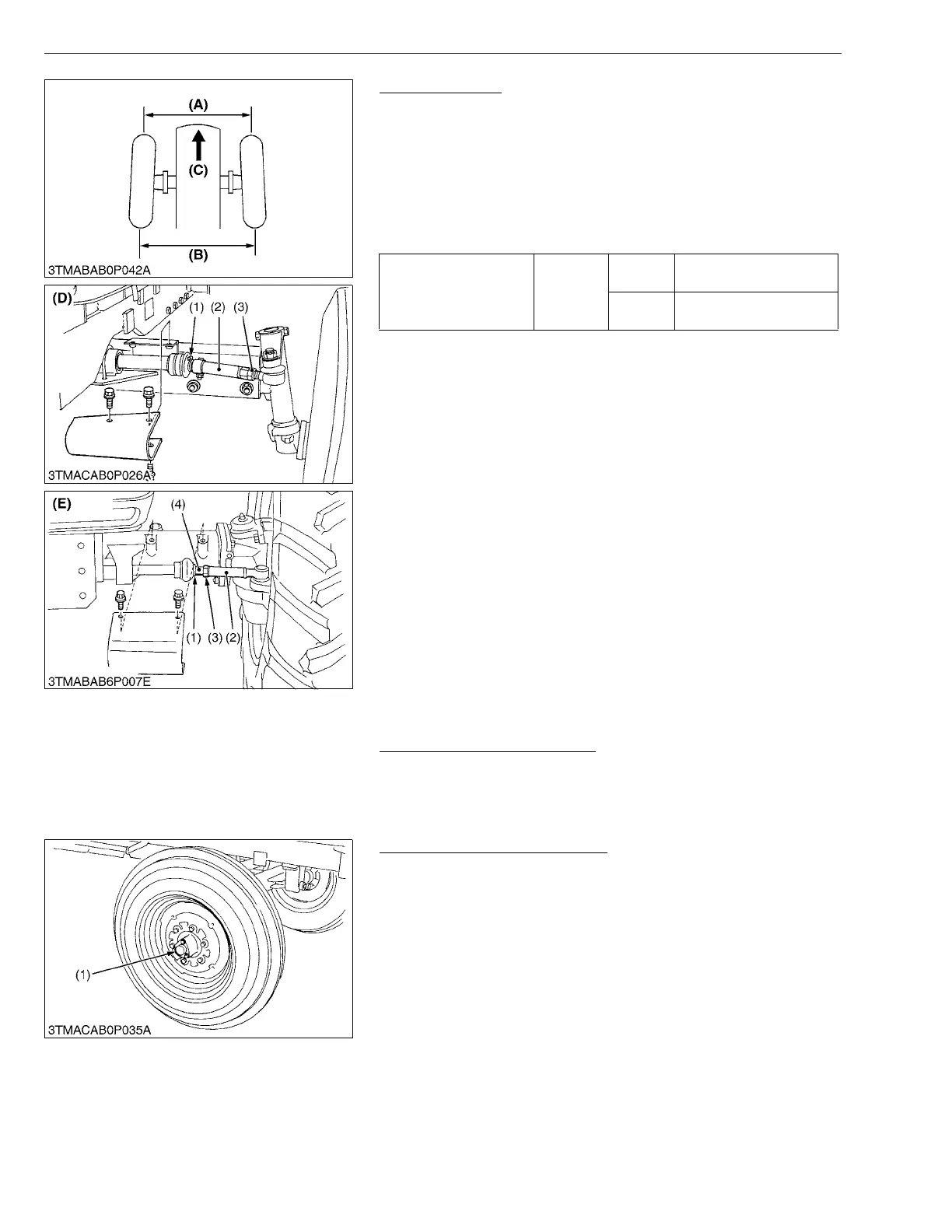

Adjusting Toe-in
1. Park tractor on a flat place.
2. Turn steering wheel so front wheels are in the straight ahead
position.
3. Lower the implement, lock the park brake and stop the engine.
4. Measure distance between tire beads at front of tire, hub height.
5. Measure distance between tire beads at rear of tire, hub height.
6. Front distance should be shorter than rear distance.
7. If not, adjust tie-rod length.
Q Toe-in Adjustment
1. Detach the snap ring (1).
2. Loosen the tie-rod nut (3).
3. Turn the tie-rod joint (2) to adjust until the proper toe-in
measurement is obtained. (2WD)
Turn the rod end (4) to adjust until the proper toe-in measurement
is obtained. (4WD)
4. Retighten the tie-rod nut (3).
5. Attach the snap ring (1) of the tie-rod joint.
W1026029
[6] CHECK POINTS OF EVERY 300 HOURS
Replacing Hydraulic Oil Filter
• See page G-17.
W1026536
[7] CHECK POINTS OF EVERY 400 HOURS
Lubricate Grease Fitting (2WD)
1. Detach the front wheel hub cover (1), and apply bearing grease.
W1027029
Toe-in (B–A)
Factory
spec.
2WD
1.0 to 5.0 mm
0.04 to 0.20 in.
4WD
2.0 to 8.0 mm
0.08 to 0.31 in.
(1) Snap Ring
(2) Tie-rod Joint
(3) Tie-rod Nut
(4) Rod End
(A) Wheel-to-wheel distance at front
(B) Wheel-to-wheel distance at rear
(C) “FRONT”
(D) 2WD
(E) 4WD
(1) Front Wheel Hub Cover
