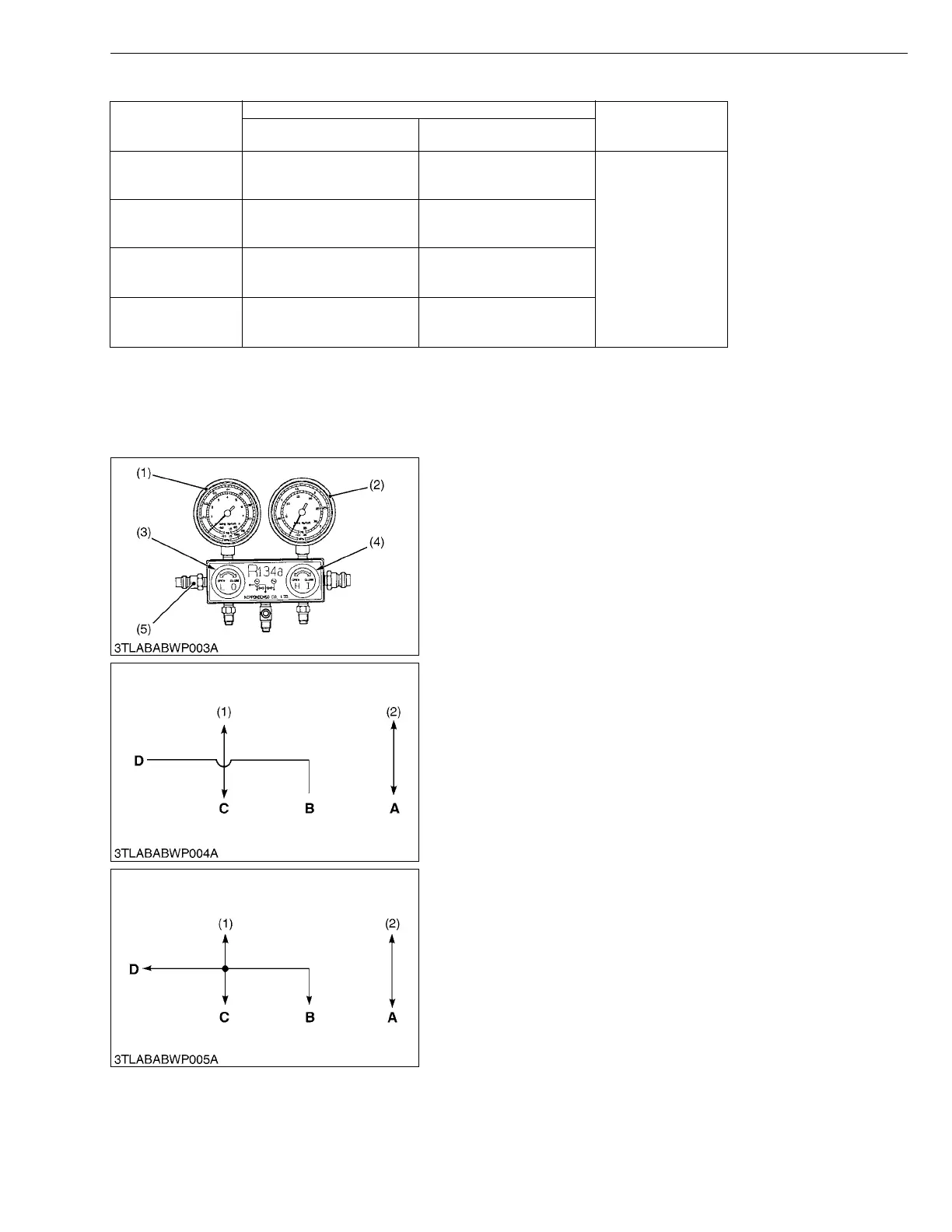

[1] HANDLING OF SERVICE TOOLS
(1) Manifold Gauge Set
The hand valves on the manifold gauge set are used to open and
close the valve. The hand valve inscribed LO is for the low pressure
side valve (3) and HI is for the high pressure side valve (4). By
opening or closing the high and low pressure hand valves, the
following circuits are established.
W1013107
Q When LO Pressure Side Valve and HI Pressure Side Valve
are Closed
Two circuits are established.
Port (C) → LO pressure gauge (1)
Port (A) → HI pressure gauge (2)
NOTEQ
• Schrader valve (D) must be opened.
W1013376
Q When LO Valve is Opened and HI Valve is Closed
Two circuits are established.
Port (C) → LO pressure gauge (1)
→ Port (B)
→ Port (D)
Port (A) → HI pressure gauge (2)
NOTEQ
• Schrader valve (D) must be opened.
W1013454
Replacing Parts
Replenish Quantity
Brand Name
Type 1 (swashplate Type)
Type 2 and 3
(Scroll Type Compressor)
Condenser
40 cc
0.042 U.S.qts.
0.036 Imp.qts.
20 cc
0.021 U.S.qts.
0.018 Imp.qts.
DENSO CO.
ND-OIL 8
<PAG* oil>
Evaporator
40 cc
0.042 U.S.qts.
0.036 Imp.qts.
20 cc
0.021 U.S.qts.
0.018 Imp.qts.
Receiver
10 cc
0.011 U.S.qts.
0.009 Imp.qts.
10 cc
0.011 U.S.qts.
0.009 Imp.qts.
Hose
10 cc
0.011 U.S.qts.
0.009 Imp.qts.
10 cc
0.011 U.S.qts.
0.009 Imp.qts.
(1) LO Pressure Gauge
(2) HI Pressure Gauge
(3) LO Pressure Side Valve
(4) HI Pressure Side Valve
(5) Schrader Valve
