Kubota M8200 User Manual

9-M16
M6800 · M6800S · M8200 · M9000, WSM
ELECTRICAL SYSTEM
3. ENGINE KEY SWITCH SHUT-OFF SYSTEM
The fuel cut-off solenoid is located at the top of the
injection pump (3).
When the main switch is turned to START position,
the push rod (2) is pulled to top side by solenoid (1) for
control rack (4) to starting position.
When the main switch is turned to OFF position, the
push rod (2) is moved back to down side by the spring in
the solenoid (1) for control rack to stop position.
W1013842

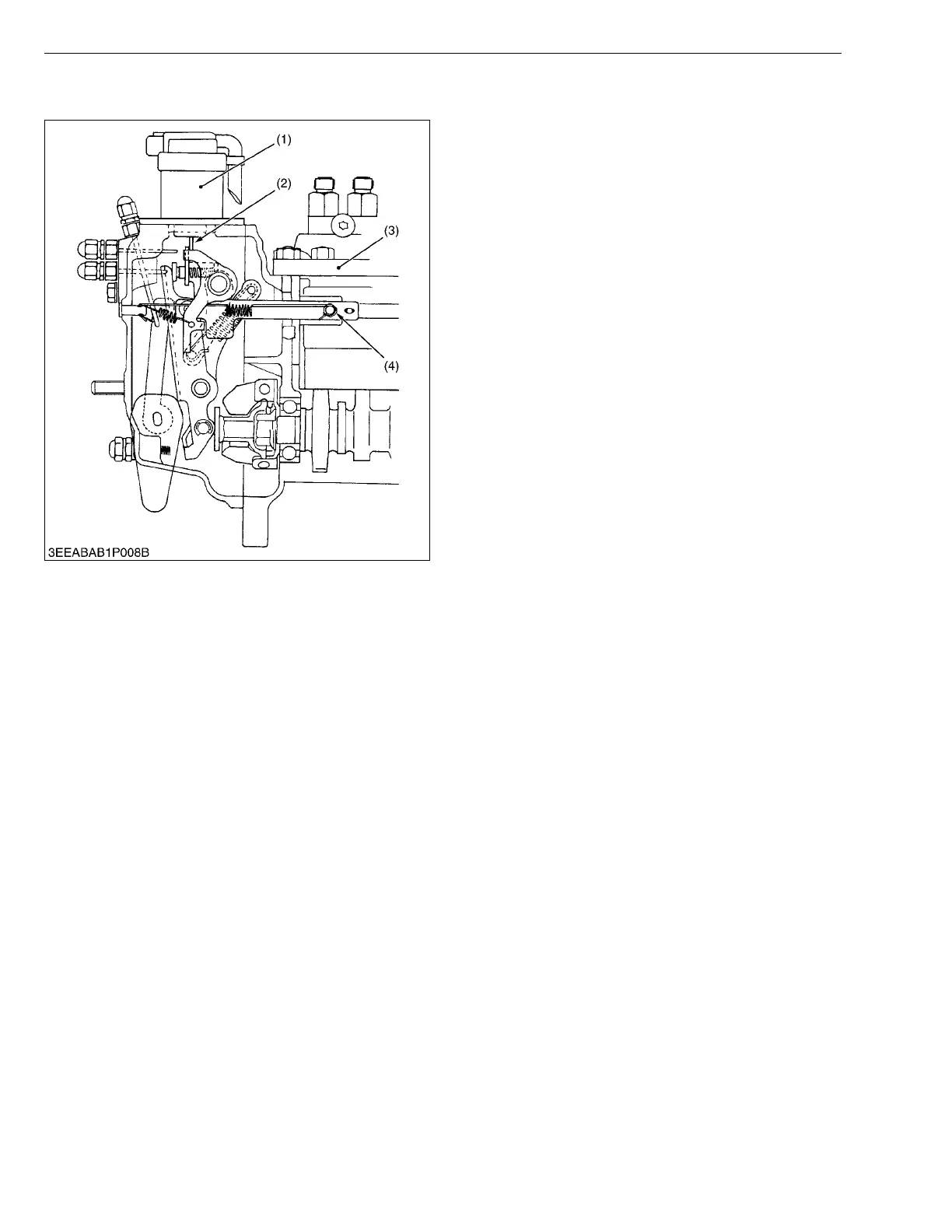

(1) Fuel Cut-off Solenoid
(2) Push Rod
(3) Injection Pump
(4) Control Rack
KiSC issued 03, 2008 A
