10-S23
M6800 · M6800S · M8200 · M9000, WSM
CABIN
6. CHECKING, DISASSEMBLING AND SERVICING

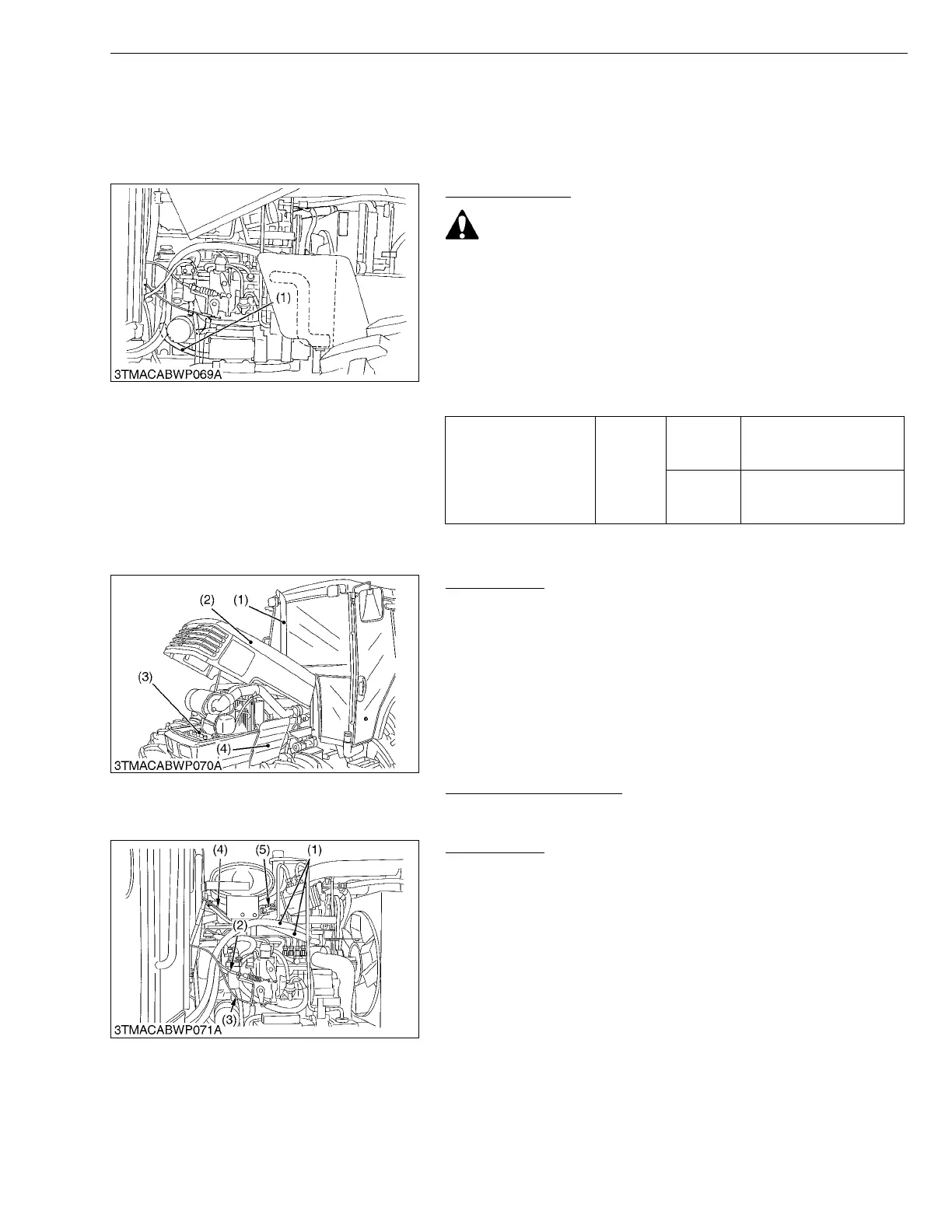

[1] SEPARATING CABIN FROM TRACTOR BODY
(1) Disassembling and Assembling
Draining Coolant
CAUTION
• Never remove the radiator cap until coolant temperature is
well below its boiling point. Then loosen cap slightly to the
stop to relieve any excess pressure before removing cap
completely.
1. Stop the engine and let cool down.
2. Remove the radiator hose (1) from the engine side to drain the
coolant.
3. Remove the radiator cap to completely drain the coolant.
4. After all coolant is drained, reinstall the radiator hose.
W1010799
Preparation 1
1. Remove the muffler (1).
2. Remove the bonnet (2).
3. Disconnect the battery’s cable.
4. Remove the side cover (4).
W1010954
Discharging Refrigerant
1. Refer to “Discharging the System”. (See page 10-S18.)
W1020852
Preparation 2
1. Disconnect the heater hoses (1).
2. Disconnect the accelerator wire (2) and engine stop wire (3).
3. Disconnect the hour meter cable (4).
4. Pull out the steering joint (5).
(When reassembling)
• Connect the heater hose with blue paint one which comes from
cabin to the radiator lower hose side.
W1020910
Coolant Capacity
M6800SQ
8.5 L
9.0 U.S.qts.
7.5 Imp.qts.
M8200Q
M9000Q
9.0 L
9.51 U.S.qts.
7.9 Imp.qts.
(1) Radiator Hose
(1) Muffler
(2) Bonnet
(3) Battery
(4) Side Cover
(1) Heater Hose
(2) Accelerator Wire
(3) Engine Stop Wire
(4) Hour Meter Cable
(5) Steering Joint
To Next Page
