46 W9232-8135-6
12/2015

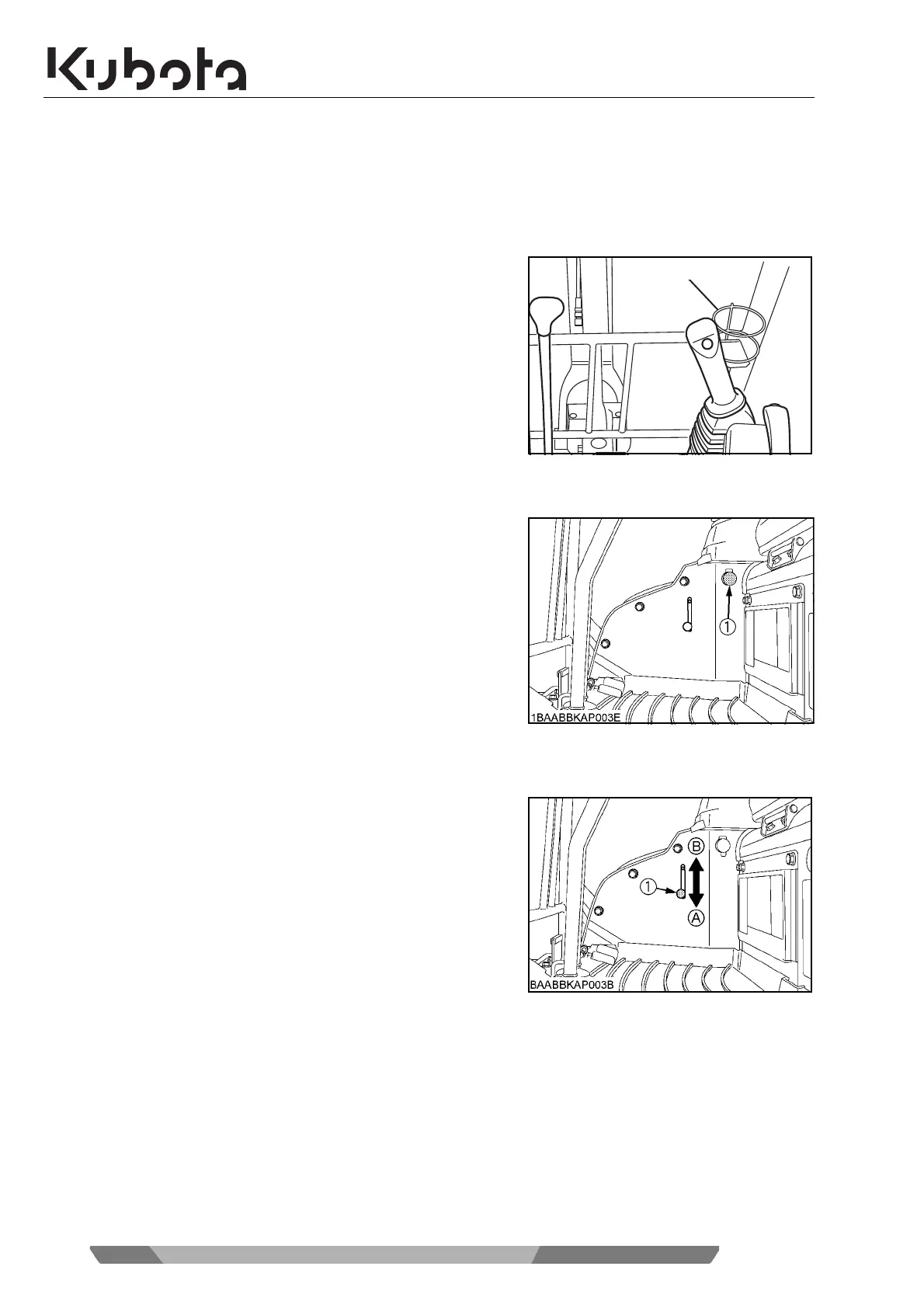

Assembly and functions
Other equipment at the operator's place
Other equipment located at and around the operator's place is described below.
Cup holder
A cup holder (1) is located on the right-hand rail of the canopy.
12-V socket
A 12-V electrical outlet (1) for the connection of an external electric
device is located on the right-hand side control console.
Dozer/extendable track width selector lever
Before operating the dozer or the extendable track width, the corre-
sponding hydraulic function must be set on the dozer control lever.
The dozer/extendable track width selector lever (1) can be used to
sw
itch the hydraulic function.
To operate the dozer:
z Push the dozer/extendable track width selector lever all the
way down (A).
z Operate the dozer using the dozer control lever (page 79).
To adjust the track width:
z Push the dozer/extendable track width selector lever all the way up (B).
z Adjust the track width using the dozer control lever (page 71).
