(10)Injection Nozzle
Nozzle Holder
1. Secure the nozzle holder body (9) with a vise.
2. Remove the nozzle holder (1), and take out parts inside.
(When reassembling)
A
Assemble the nozzle in clean fuel oil.
A
Install the push rod, noting its direction.
A
Since the nozzle piece is precision finished, a piece of
wood must be used to remove carbon deposit. Do not use
pieces of metal.
A
After assembling the nozzle, be sure to adjust the fuel
injection pressure.
Tightening torque
Nozzle holder body
and nut
97 to 116
10 to 12
73 to 88 ft-lbs

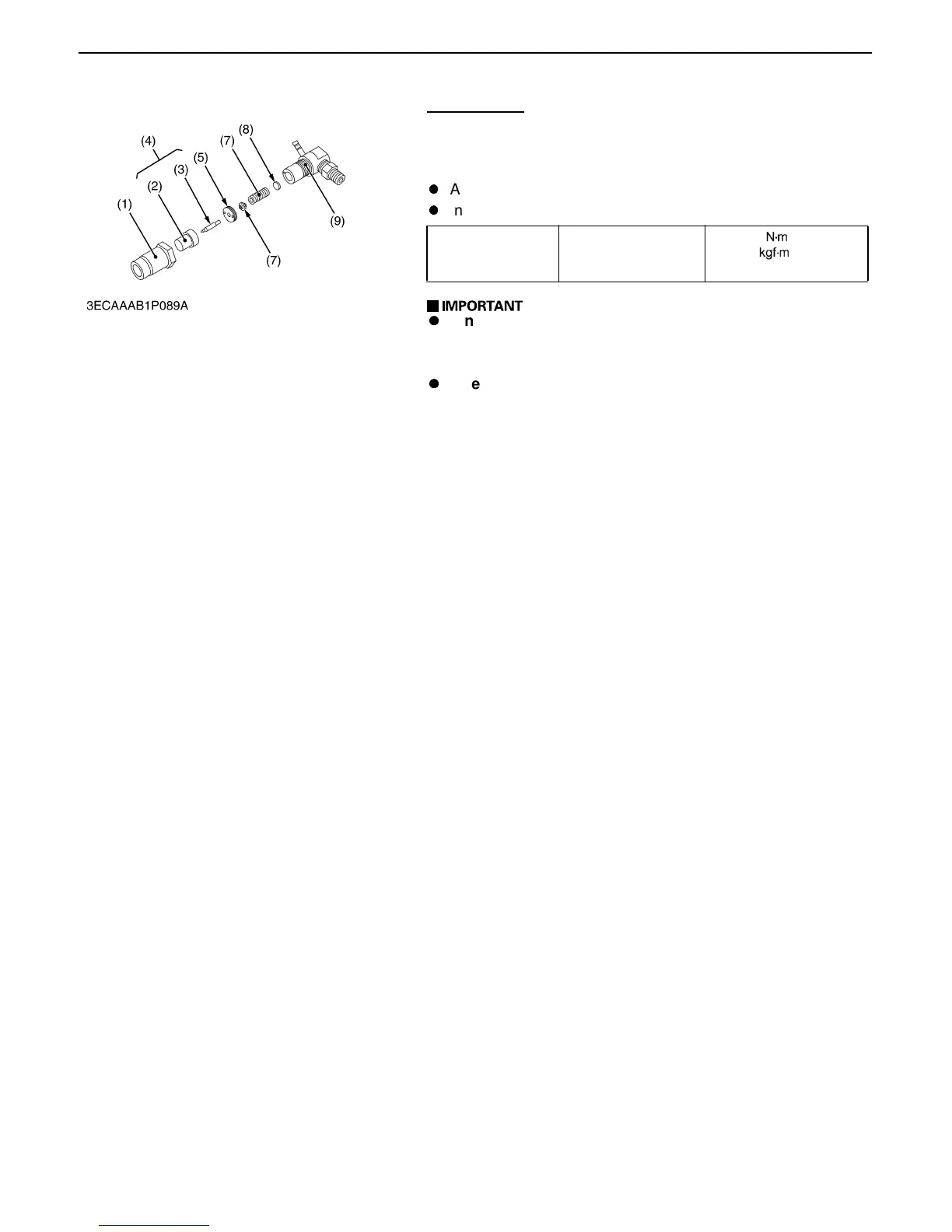

(1) Nozzle Holder (6) Push Rod
(2) Nozzle Body (7) Nozzle Holder
(3) Needle Valve (8) Adjusting Washer
(4) Nozzle Piece (9) Nozzle Holder Body
(5) Distance Piece
