Kubota WSM OC95-E2 - Starter

OC60-E2, OC95-E2, WSM ENGINE
S-37
(11)Starter

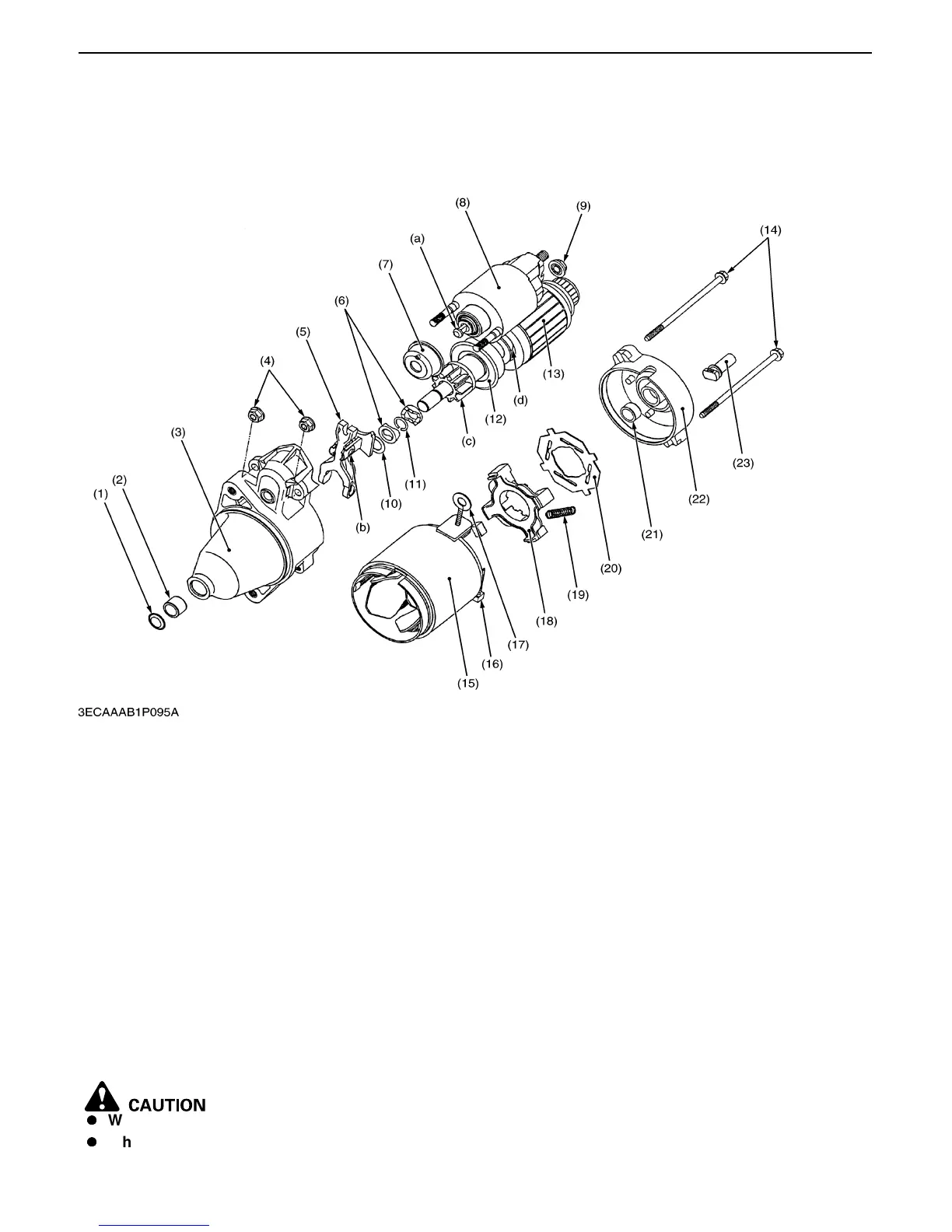

Disassembling Starter (OC60-E2)
(1) Plug (6) Pinion Stop Nut (12) Overrunning Clutch (18) Brush Holder
(2) Bushing (7) Gasket (13) Armature (19) Brush Spring
(3) Starter Drive Housing (8) Magnet Switch (14) Through Bolt (20) Insulator
(4) Magnet Switch Mounting (9) Nut (15) Yoke (21) Bushing
Nut (10) Washer (16) Brush (22) End Frame
(5) Drive Lever (11) Snap Ring (17) Connecting Lead (23) Cover
1. Unscrew the mounting nut (9), and disconnect the connecting lead (17).
2. Unscrew the magnet switch mounting nut (4).
3. Remove the magnet switch (8) by sliding it up so that it is disconnected from the drive lever (5).
4. Unscrew the two through bolts (14).
5. Remove the end frame (22).
6. Remove the insulator (20).
7. Remove the brush (16) and brush spring (19), and pull out the brush holder (18).
8. Draw out the yoke (15) from the starter drive housing (3).
9. Draw out the armature (13) with the drive lever (5).
A When removing the insulator (20), from popping out like a bullet.
A When removing the brush (16), prevent the brush spring (19) from popping out like a bullet.
