8. - Instructions for work
KN281CGB_L
Mower conditioner
 Right side:

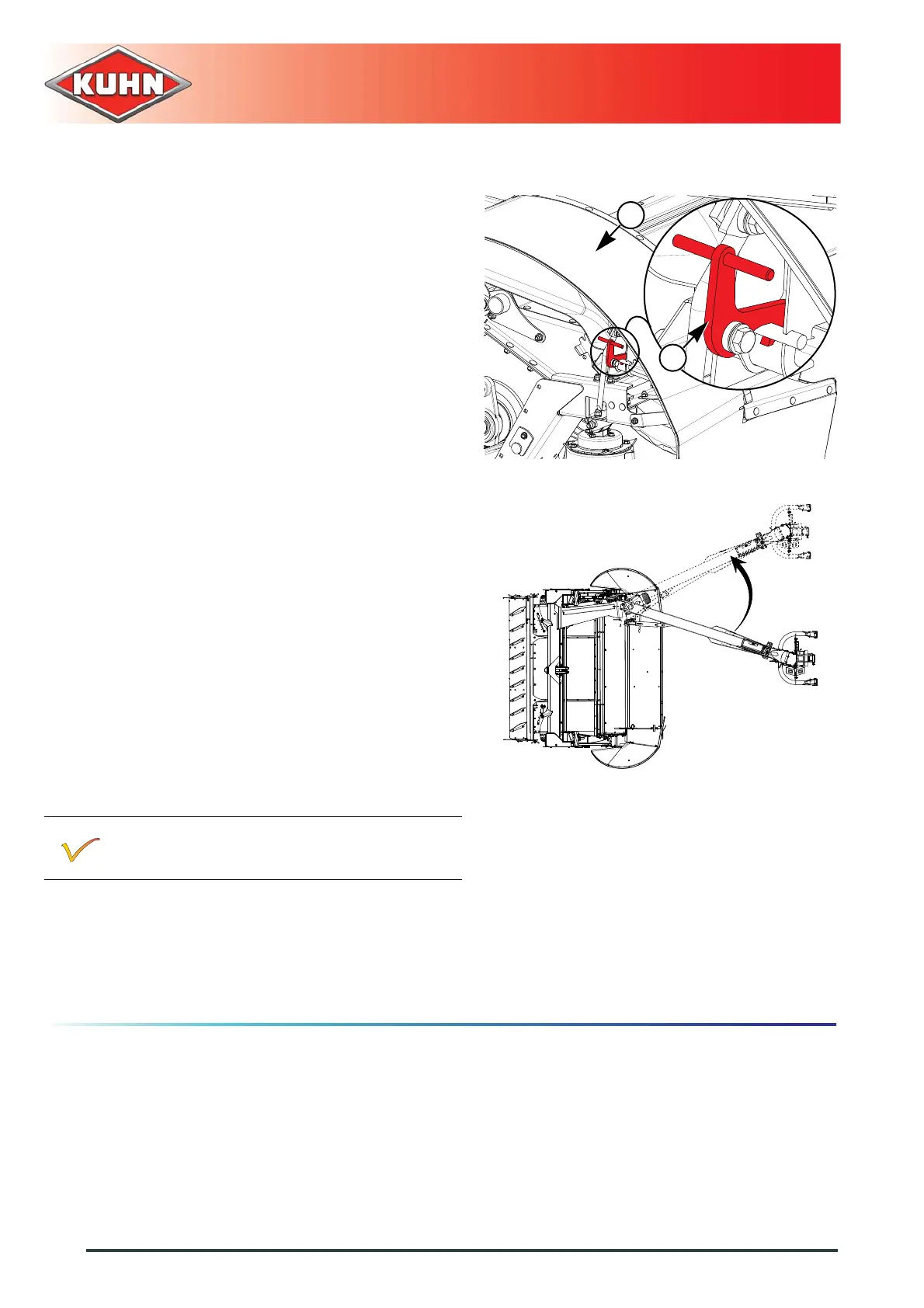

- Pull handle (1) to unlock right side guard (2).
- Lower side guard.
• The side guard is automatically locked in the
lowered position.
- Open drawbar shift cylinder lock valve.
- Open the mowing unit lift cylinder lock valves.
- Activate the double acting valve to pivot the
drawbar in work position.
- Wait until cylinder is fully extended.
- Activate single acting valve to lower the mowing
unit on the ground.
The machine is in working position.
