11. - Maintenance and storage
FC2860TLD-3160TLD-3560TLD
73
KN281CGB_L
Mower conditioner

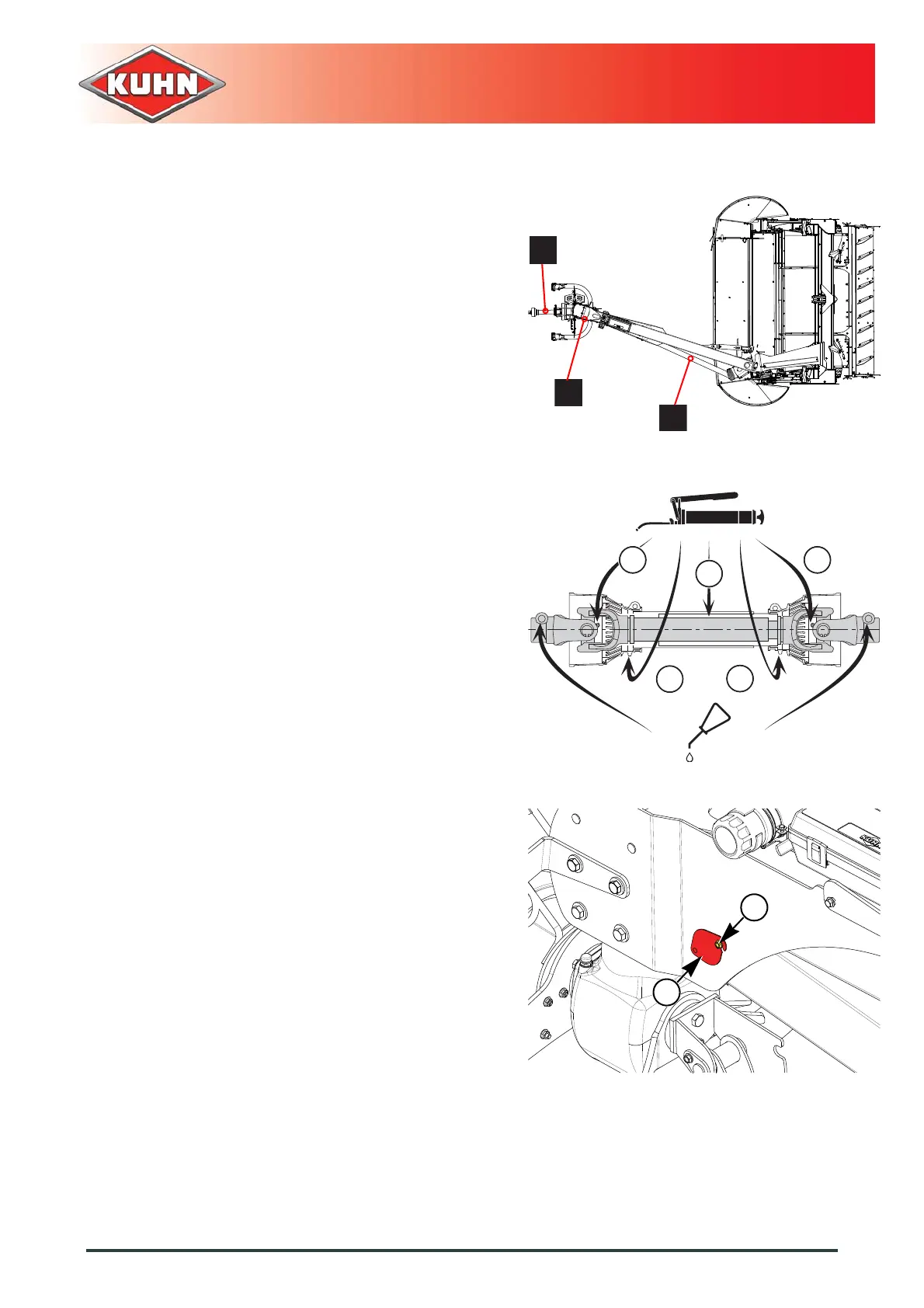

 Primary PTO shaft (a)
- Every 50 hours:
• universal joints (1).
• transmission tube (2).
• Guide rings (3).

Universal joint assembly (b)
- Every 50 hours:
• universal joints (1).

Intermediate PTO shaft 1 (c)
- Every 20 hours:
• universal joints (1).
• transmission tube (2).
• Guide rings (3).
Primary PTO shaft
Universal joint assembly (b):
- Loosen screw (1).
- Pivot cover (2) to access greaser.
- Grease PTO shaft U-joint.
- Reinstall guard.
