Instructions for work
Mower conditioner
FC313 RF
43

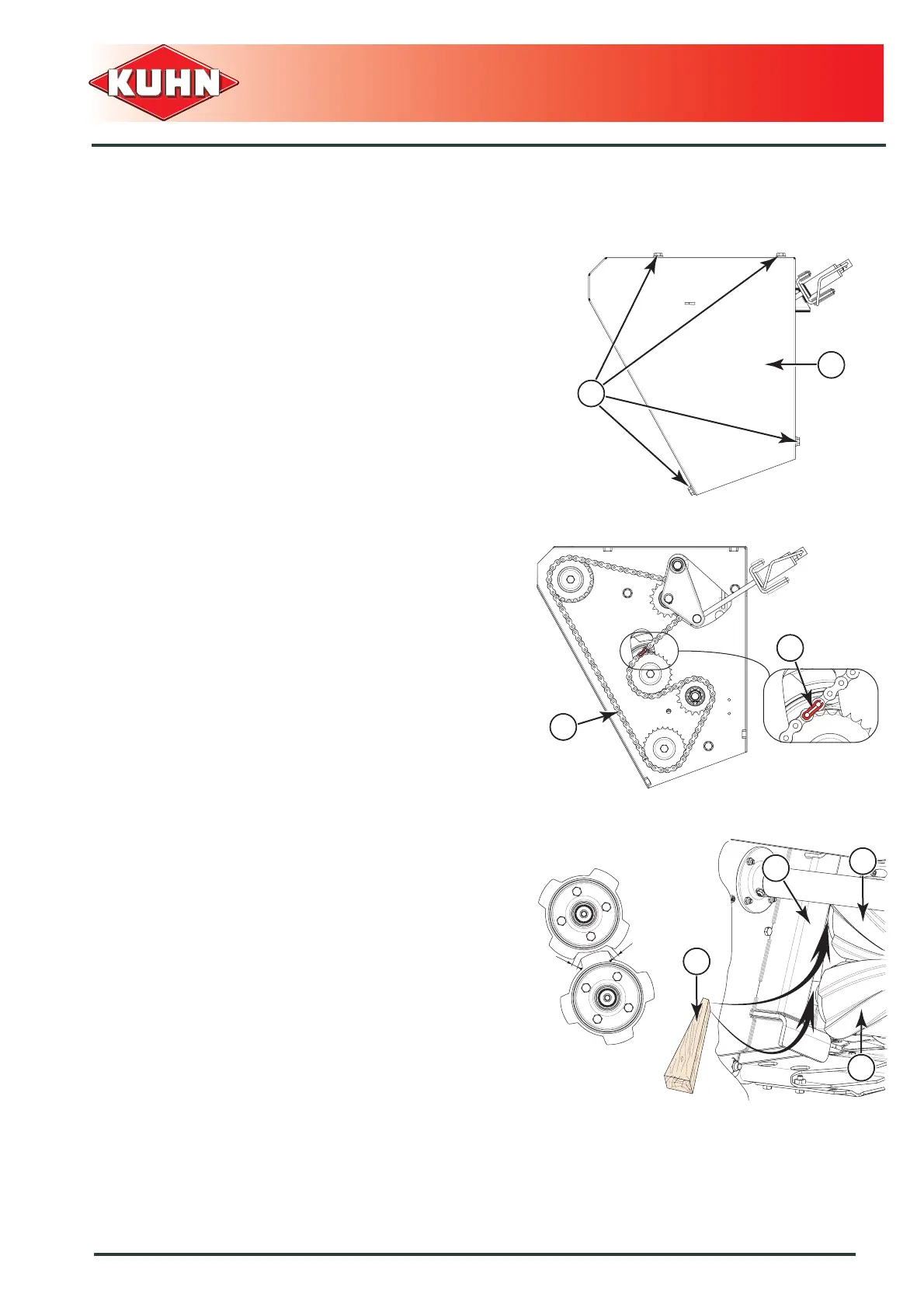

Chain replacement and roller
synchronization
To replace the chain:
- Remove 4 bolts (1).
- Remove chain guard (2).
- Loosen chain.
- Remove quick release link (1) and then chain (2).
- Place wedge (1) between upright (2) and roller (3).
- Rotate upper roller to balance the play on each side of
the lower roller.
- Place wedge (1) between upright (2) and roller (4).
1
2
1
2
=
=
3
4
1
2
