10. - Maintenance and storage
KN142BGB G
Gyrotedder
- Activate hydraulic valve that pressurizes the
transport/work cylinders in the work position
direction until cylinders reach travel end.

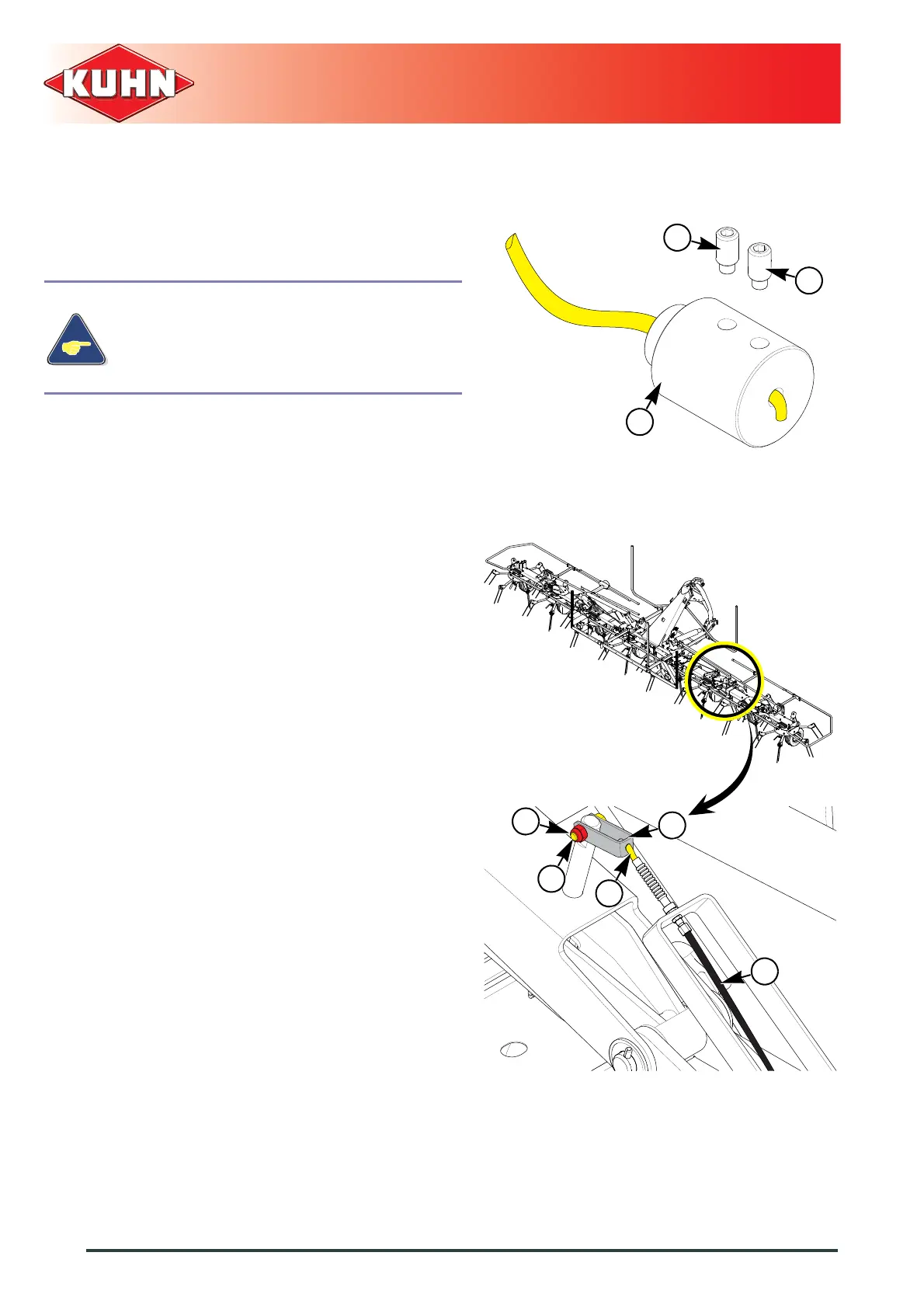

If the cable is broken:
- Remove 2 bolts (1).
- Remove cable grip (2).
- Remove nut (1).
- Remove screw (2).
- Remove cable (3) and its guide (4).
- Remove sheath (5).
- Reinstall sheath.
- Remove cable (3) and its guide (4).
- Reinstall bolt (2) and nut (1):
• Do not tighten them.
2
1
1
2
1
4
3
5
