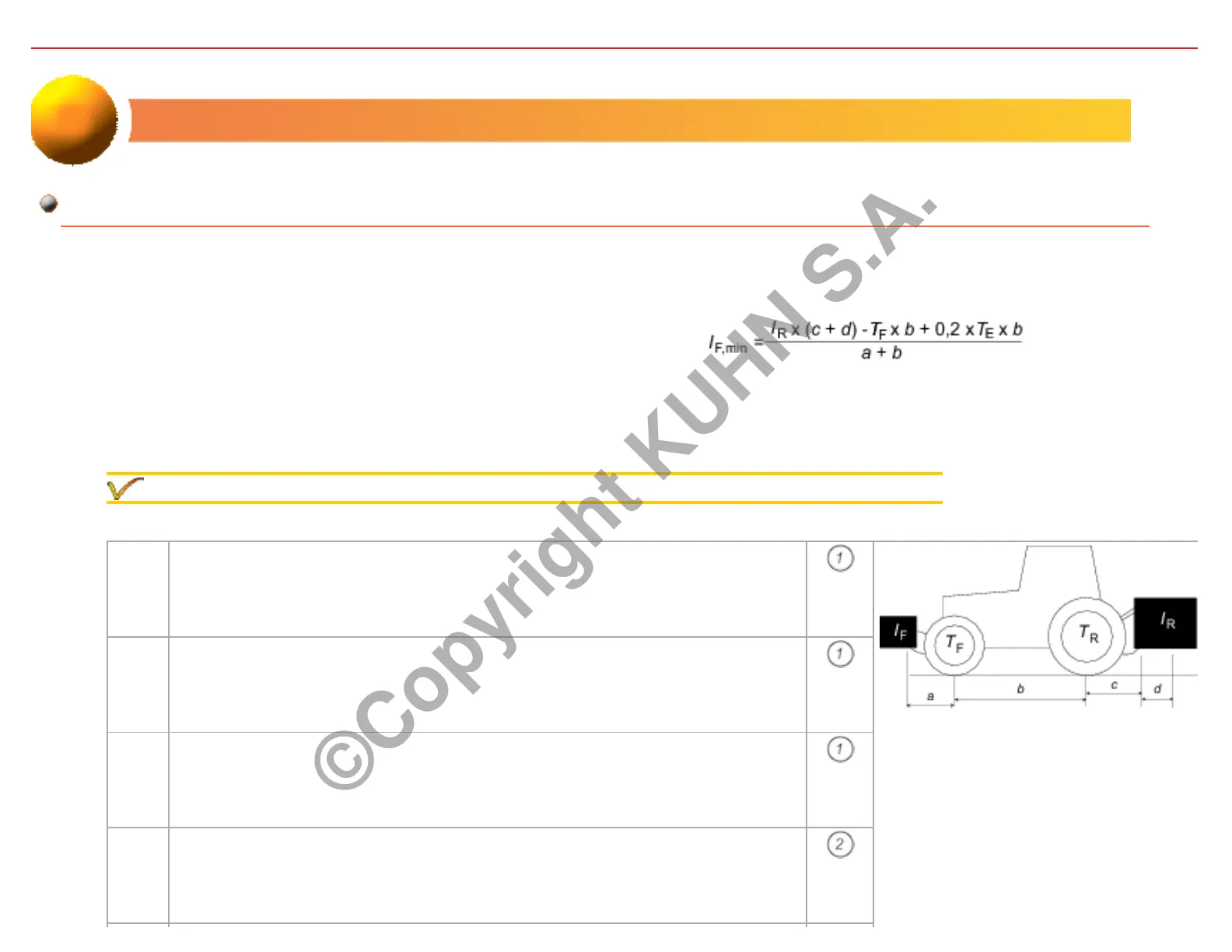

Stability of the tractor-spreader unit (Appendix A EN 14017)
Introduction
The example refers to a solid fertilizer spreader mounted on a tractor.
Due to the machine's mass and products
contained in the hopper, the tractor - spreader
unit can become unstable. In order to check the
total stability, the following relation can be applied to calculate the minimum ballasting at the front IF, min ,
which enables obtaining a weight on the front axle equal to 20 % of the tractor's tare:
The calculation takes into account the rear mounted equipment and the front - rear combinations.
T
E
[kg]
Tractor tare
T
F
[kg]
Load on the front axle of the weight empty tractor
T
R
[kg]
Load on the rear axle of the weight empty tractor
I
R
[kg]
Combined weight of the rear fitted equipment ant the rear
ballasting
