KUHN GMD44 - Disk Synchronization

GMD44 _760001 _xxxxxx
Disk synchronization

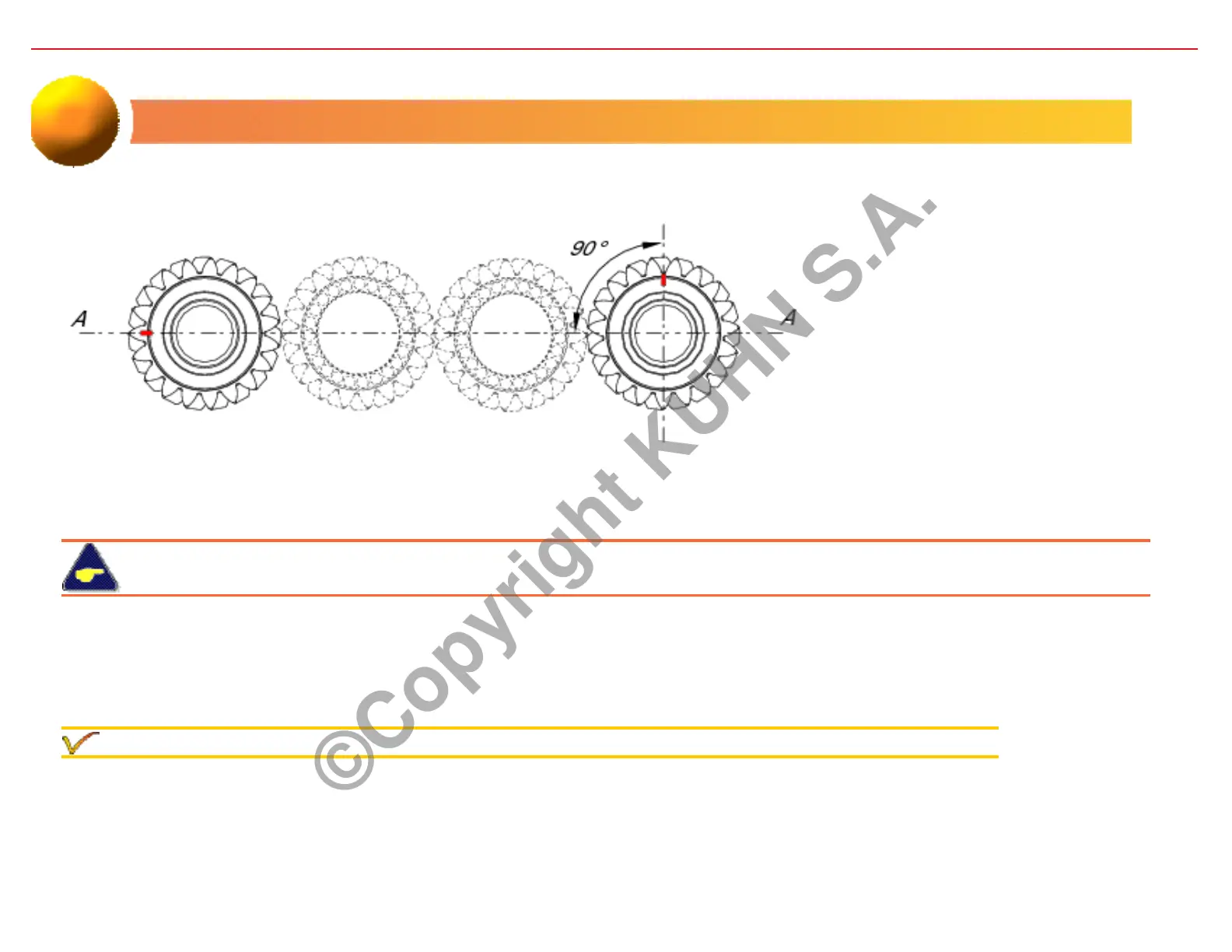

Position first helical pinion mark on (A - A) axis and the second helical pinion mark at 90 degrees with regards to (A - A) axis.
Position the other helical pinions alternately.
Copyright 2012 KUHN S.A.
Before reinstalling the intermediate pinions, position helical pinions making sure to respect the disk
synchronization.
Marks on tooth and in between teeth must be positioned alternately from one helical pinion to the next one.
Page 53/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
