Putting into service
Power harrow
HR6004DR
39

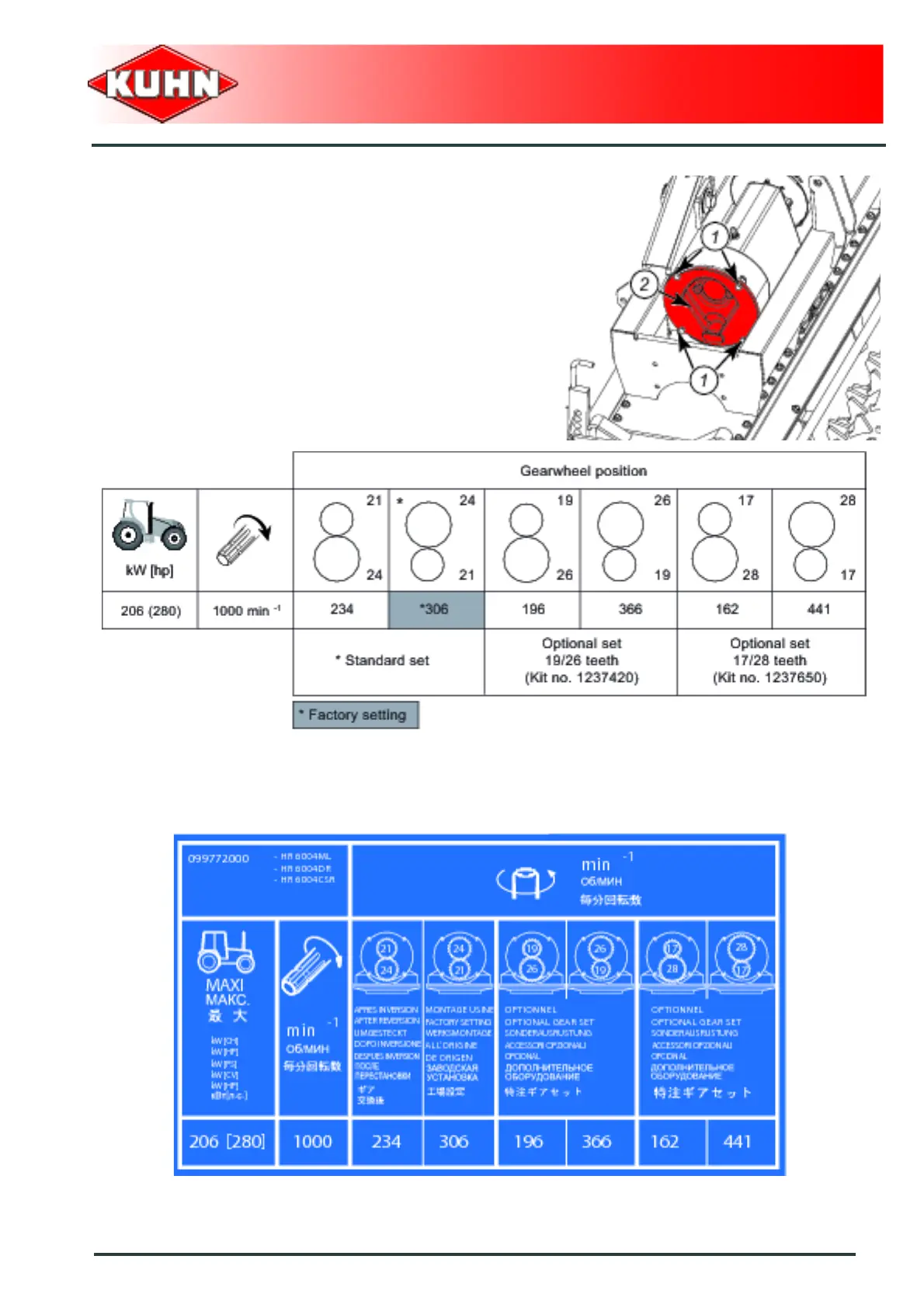

Adjusting the rotor speed.
The rotor speed can be adjusted by inverting the
standard gearwheels or by using optional gearwheel
sets.
.From the working position:
- Remove screws (1) and gearbox cover (2).
Position gearwheels according to the chart:
Refer to the decal fitted on the machine .
