CAUTION
Please observe the following information:
When exchanging the flash lamp, the chip card must also be exchanged.
The old chip card is expired and may be wasted.
In the case of complaint the flash lamp must always be sent back / returned together with the chip card.
In case of noncompliance Kulzer GmbH reserves the right to refuse warranty service.
The integrated fan runs during each polymerisation process and is necessary to ensure trouble-free polymerisation
and to protect the unit. The unit must not be operated if proper function of the fan is not ensured.
The unit must not be operated without filter disc.
7.6 Checking the device
Unit safety check must be executed by owner/operator in regular sequence (e.g. weekly).
7.6.1 Control panel
Is the operating film in perfect condition?
Switch the device on, all LED rings light up briefly for the functional check.
Are the LED status control or respective LED ring lit in the polymerisation mode?
7.6.2 Drawer for polymerisation products
Has the light reflector been inserted and is it in perfect condition (is it clean)?
Are there any blocked holes in the light reflector?
Check the correct function of limit switch. Start 6 second cycle and open drawer during process (abnormal use).
Flashing must stop immediately. If not, please contact your local service (see paragraph 15 Service.
The device may not be operated in this case.
7.6.3 Filter drawer
Has the filter been inserted?
Clean or replace very dirty filters.
Do not clean the filter with compressed air in the building!
7.6.4 Inside the device
Has the flash lamp been inserted as far as it will go?
Has the chip card been correctly inserted into the card reader?
Is the filter disc in position and clean?
CAUTION
The device must not be operated if one of the
above mentioned conditions is not fulfilled.
8 Appliance
8.1 Working with the device
Connect the device to the power supply and switch it on.
NOTE
Make sure that the object is placed in the device on the supplied
object holder (if possible!) and not with the whole plaster model.
The large light reflector allows this to be done, but it significantly
prevents the cooling capability.

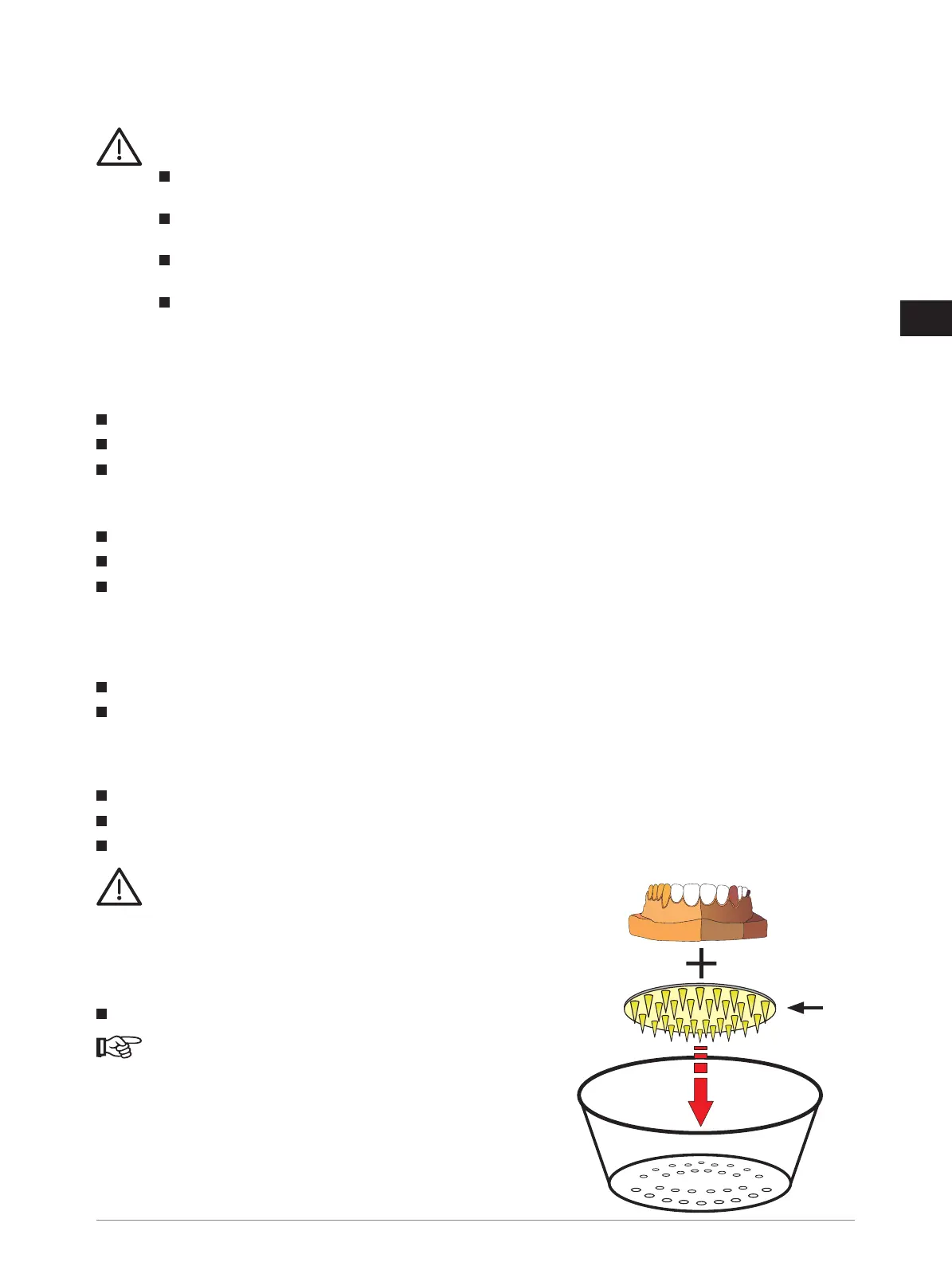

Warming can be reduced with the “Model tray” spacer when the
long polymerisation cycle is used frequently. For this purpose, the
model resp. 3D print object must be placed on the tray with
the feet pointing downwards in order to achieve better ventilation.
Delivery form: 2 pieces “Model tray” REF 66017525
Model tray
