Ceramic hob & Induction hob
INSTALLATION
SELECTION OF INSTALLATION EQUIPMENT

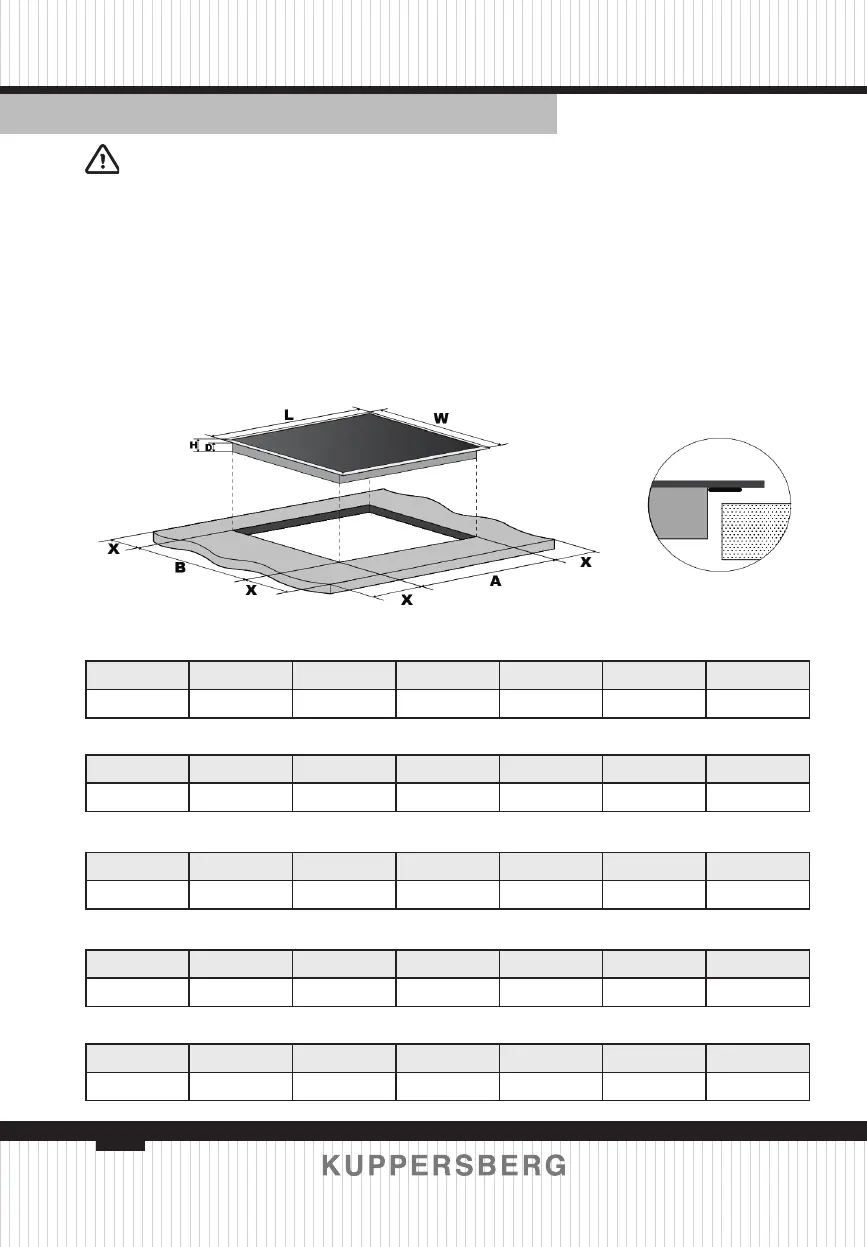

Cut out the work surface according to
the sizes shown in the drawing.
For the purpose of installation and
use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work
surface is at least 30 mm. Please se-
lect heatresistant work surface material
to avoid larger deformation caused by
the heat radiation from the hotplate. As
shown below:
Seal
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 52 48 560 490 50 mini
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 60 56 565 495 50 mini
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
770 520 60 56 745 495 50 mini
Мodel: ICS 804
Мodel: ICS 607 / ICS 617 / ICS 627 / ICS 644 / ICS 645 F / ICD 601 / ICI 622 W
Мodel: ECS 627 / ECS 630
Мodel: ECO 411 / ECS 403
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
900 520 60 56 875 495 50 mini
Мodel: ICS 905 / ICD 901
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
450 520 52 48 420 490 50 mini
To Next Page
