Service Manual EKI 11
For internal use only
3. Control and function elements
3.1 Control elements
♦ 1 Main switch button ON
♦ 1 Main switch button OFF
♦ 4 Plus buttons
♦ 4 Minus buttons
♦ 1 Power button (booster)
♦ 1 Key-lock button
3.2 Displays
♦ 4 7-segment displays (actuator displays)
♦ 1 LED for main switch
♦ 1 LED for power button (booster)
♦ 1 LED for key-lock button
3.3 Acoustic signal
♦ 1 Buzzer
3.4 Temperature measurement
♦ 1 NTC sensor on the heat sink
♦ 4 PT sensors on the cooking zones
3.5 Cooling
♦ 1 Fan

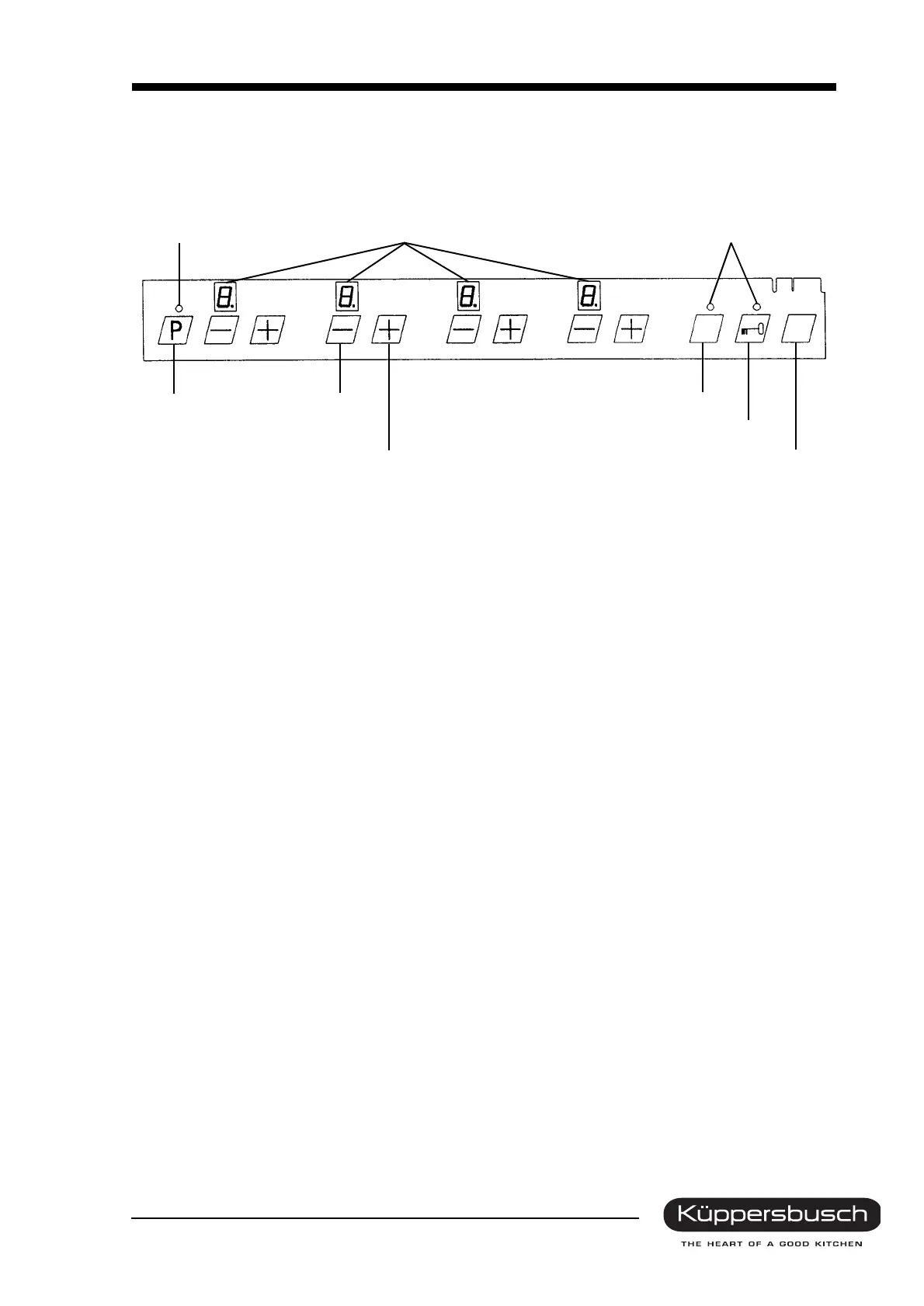

Cooking zone 1 Cooking zone 2 Cooking zone 3 Cooking zone 4
LED 7-segment display LED
Power button Minus button
Plus button
Main switch button ON
Key-lock button
Main switch button OFF
21 2))
