Service Manual EKI 7
For internal use only
1.6 Dimensions and ratings
The following cooking zones are available:
Nom. Ø 145 mm 1.4kW
Nom. Ø 180 mm 1.8kW
Nom. Ø 210 mm 2.2kW
The diameter 210 mm can only be combined with the smallest cooking zone owing to the connected load
which is limited to 3.6 kW.
1.7 Important notes on installation
Induction hobs are supplied ready to install. They may only be used after proper installation.
The unit must be installed on resilient supports to prevent damage to the induction system and the glass
ceramic.
Induction hobs are only fully operable if they are adequately cooled by air in the finished appliance.
Appropriate precautions must be taken to satisfy this requirement.

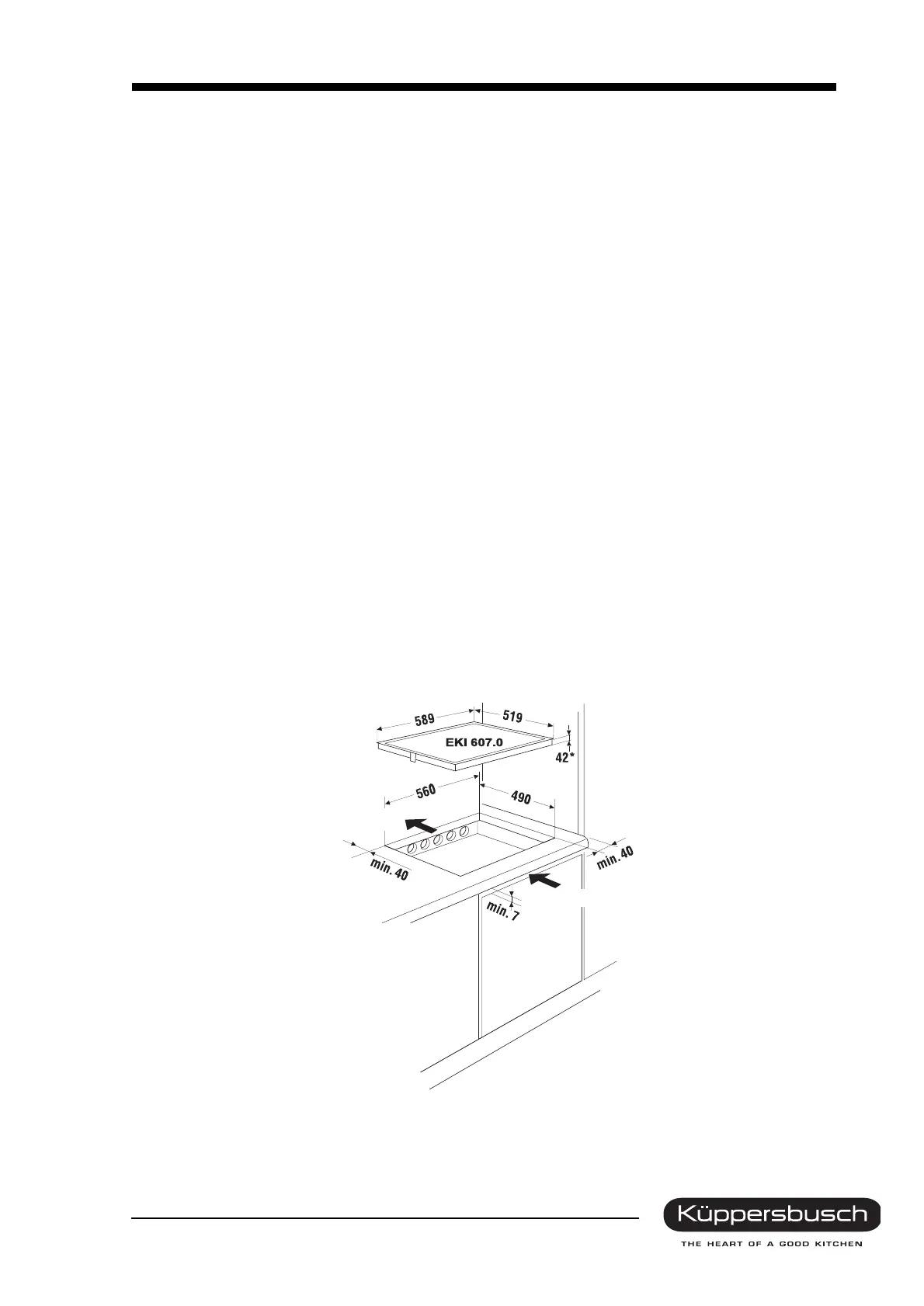

1.7.1 Dimensional drawing for installation of the induction hob
A ventilation slit of at least 7 mm mustbe provided above the panel in every method of installation.
Ventilation openings are to be provided in the back of the cupboard. Cold air is drawn in through the front
ventilation slit. The heated air escapes through the ventilation openings in the rear.
An air channel to be installed (see following descriptions) prevents the heated airflowing back to the cold
air intake side.
front slit
ventilation
