1.7.2 Installation on a cover board
If the hob is installed on a fitted cupboard, a cover board must be installed in the kitchen cupboard.
♦ .Install the cover board under the worktop as follows:
with a 40 mm worktop 50 mm underneath the worktop,
with a 30 mm worktop 60 mm underneath the worktop,
with a 50 mm worktop 40 mm underneath the worktop.

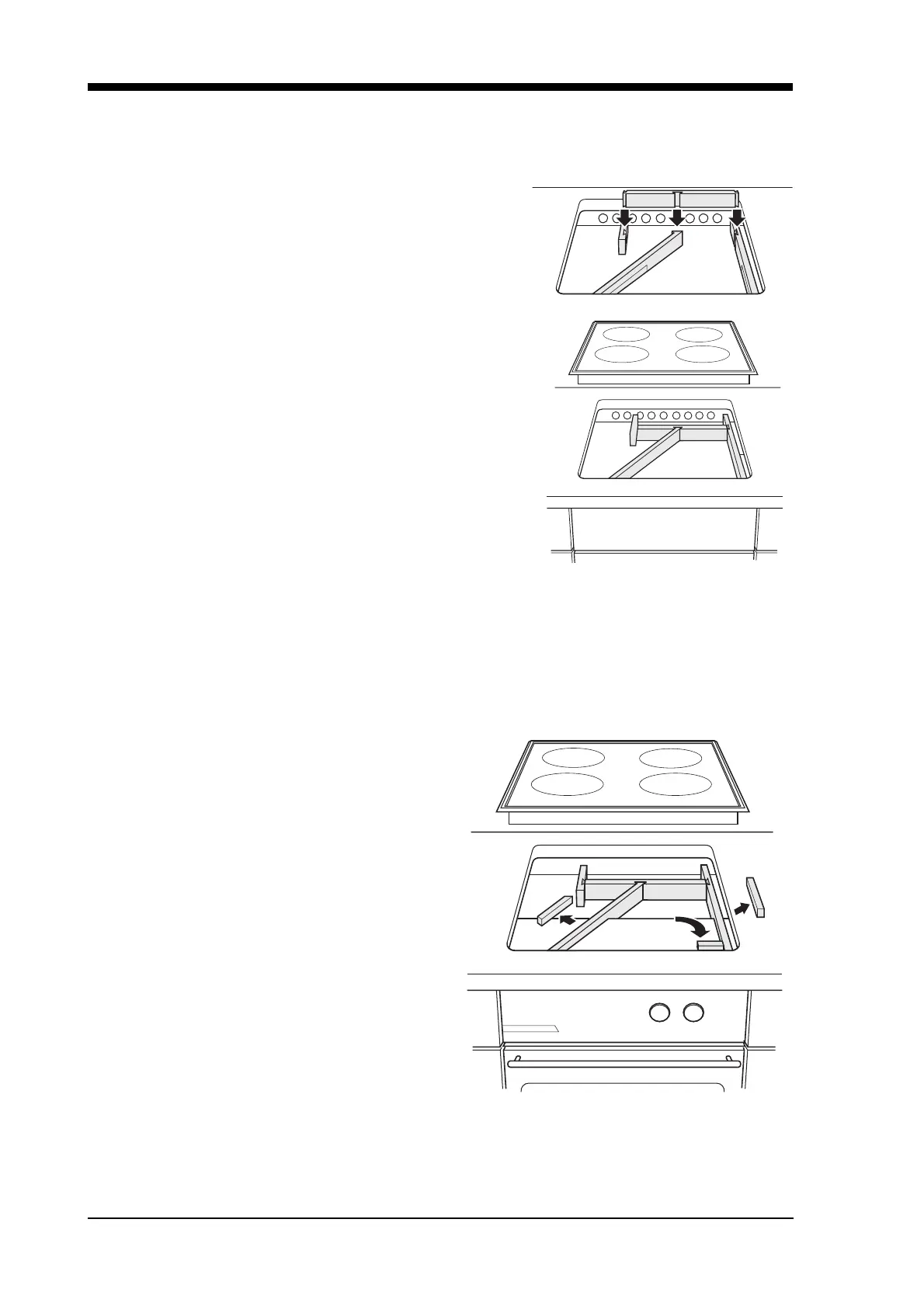

♦ Assemble the enclosed foam mouldings as illustrated and
place on the cover board. This prevents the heated air from
flowing back to the cold air intake side. This is important for
proper functioning!
♦ Insert the protruding foam under the worktop and install the
hob.
1.7.3 Installation above a Küppersbusch built-in electric oven
The induction cooking hob may only be installed above a Küppersbusch built-in electric oven with
housing cooling. A ventilation slit of at least 7 mm must be provided at the front above the oven so that
cold air can be drawn in.
Place the foam mouldings on the oven. The enclosed
mouldings are slit. Parts of the foam are to be torn off
so that the step created by the oven is offset, see
next illustration.
♦ Also seal the front right with a torn-off piece of
foam moulding, see next illustration.
♦ Insert the protruding foam between the cooker
and the worktop and
♦ Install the hob.
Important: Ensure good sealing so that no air short-
circuit can occur between the intake side and the
discharge side. For the same reason openings in the
intake area of the ventilator in the oven top are to be
closed with enclosed strips of adhesive tape.
