1.7.4 Installation above a drawer (with accessory No. 136)
Components: 1 air channel, foam strips, 12 pan-head tapping screws, 1 protective mesh for fan
Important: The cupboard rear must be closed. The warm cooling air must not be able to return to the
fan intake opening. Inadequate cooling of the power electronics results in a power eduction of the hob.

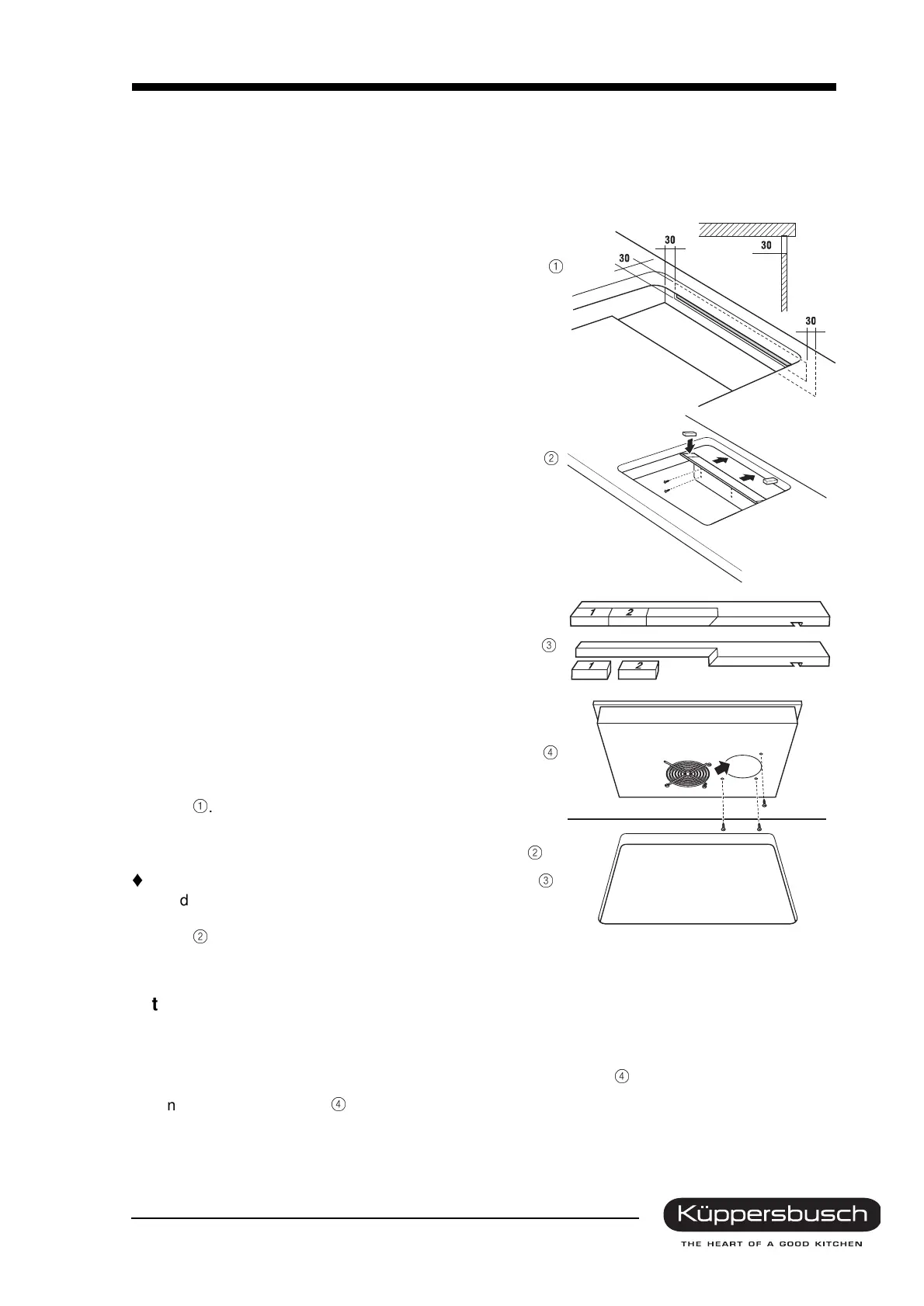

1 View of the cupboard rear from inside
2 Cupboard view from the side
3 Foam strips
4 View of the hob from below
Installation of the air channel
♦ Make recess in cupboard rear according to dimensions in
Fig.
1
.
♦ Attach air channel sheet on the cupboard rear with the en-
closed pan-head tapping screws as illustrated in Fig.
2
.
♦ Tear off the foam strips with the hob as shown in Fig.
3
and stick onto the self-adhesive tape on the both sides of
the sheet in order to produce a sela at the side (see
Fig.
2
.
Attaching the protective mesh for fan
♦ Turn hob over and undo the 3 screws beside the fan opening out of the bottom of the hob. When
turning the hob over, protect it agianst being scratched.
♦ Mount the protective mesh and fasten with the 3 screws (see Fig.
4
).
♦ Insert the hob (see Fig.
4
).
1
2
3
4
