Single Mixer Channel

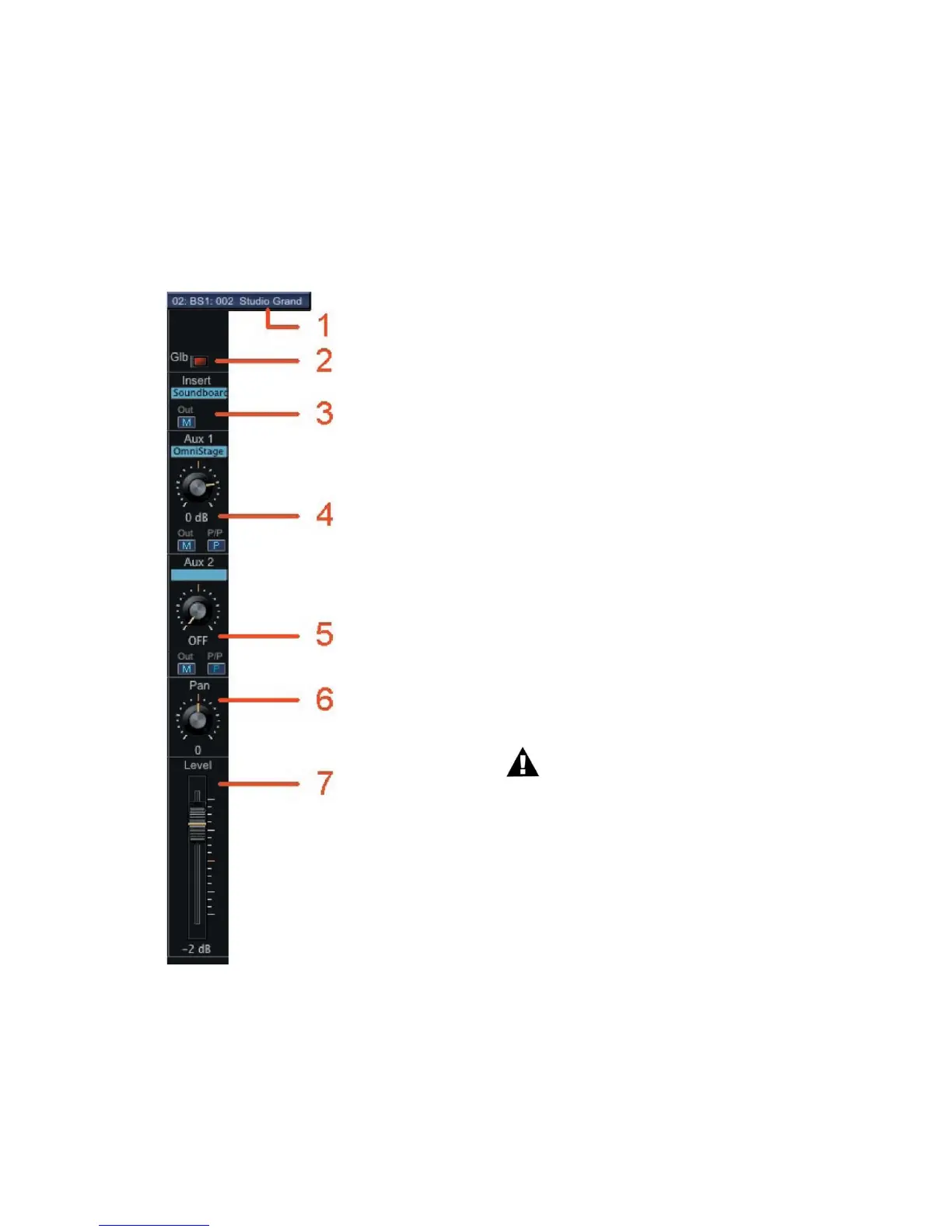

SoundEditor‟s Channel Mixer features 16 identical channels, one for each MIDI channel. The
figure below shows the components that make up a single mixer channel.
1. The MIDI Channel and PC3 Program
assignment
2. Global switch
3. Insert Effect and Main/Secondary
Output switch
4. Auxiliary 1 Send with Pre/Post
control and Main/Secondary Output
switch. Then the Pre/Post button is
lit, „Pre‟ is selected
5. Auxiliary 2 Send with Pre/Post
control and Main/Secondary Output
switch. When the Pre/Post button is
lit, „Pre‟ is selected
6. Pan (Panorama) control
7. Level fader
The parameter values displayed in a Mixer
Channel reflect the Common and FX values
for the Program that is assigned to that
channel.
Clicking on the Aux1 or Aux2 fields opens
the FX Chains window, allowing you to
select a new effect.
