KVANT Atom Series Model Specific Operation Manual

22 | 38
Atom series - v160120
Kvant Lasers s.r.o.
EN

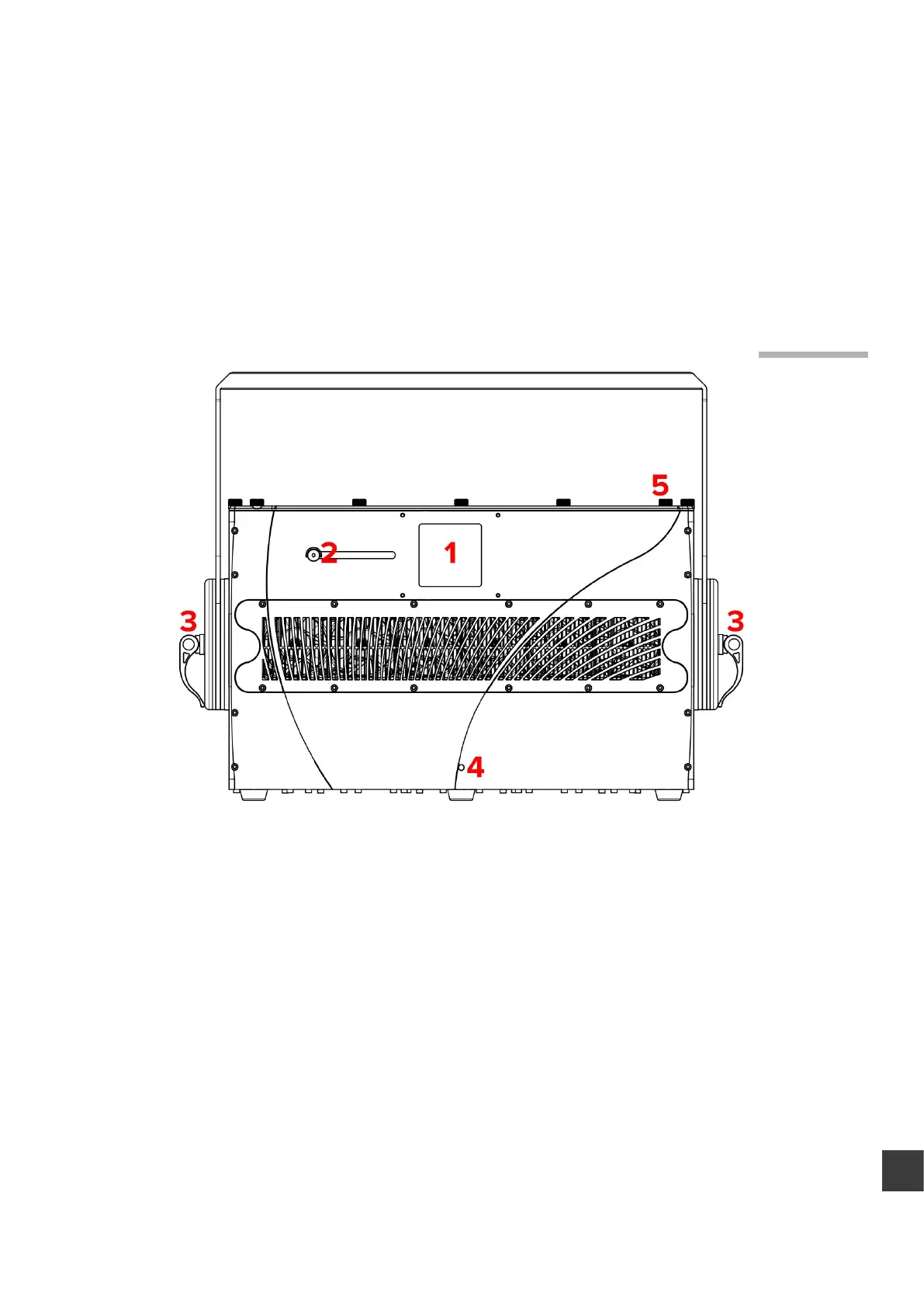

Front View
1. Laser aperture. To clean the laser aperture window from inside or to swap the aperture plate for dierent type of
aperture (i.e. DiscoScan lens attachment bracket), remove the six socket bolts that hold the laser aperture in place
and remove it.
2. Aperture masking plate. This metal masking plate can be moved left and right when locking bolt is loosened.
3. Attachment bracket. The attachment bracket spins 360 degrees around the laser body whilst it can be locked in
desired position by two small locking handles on sides. Due to the sophisticated locking mechanism there’s no need
to use excessive force when locking the system in position.
4. Laser emission indicator. When this indicator is lit up the laser system is ready to emit the laser radiation as soon as
it receives instructions from control software.
5. Optical compartment cover bolts. To access the optical compartment of the laser system undo 14 button hex bolts
and carefully remove the cover.
5 .1
