Beam Alignment
[Atom 20, LD 20 Atom, Atom 30]
1. Unscrew 14 silver bolts that hold down the top cover – they are spring loaded and will pop-up once loose.
2. Slowly remove the cover – detach the GND wire that is attached to the top cover from the inside of the system! To
detach the wire gently pull it out from the connector.
3. Removal of the cover will show the two internal defeatable magnetic interlocks. You must flip over the right side of
the magnetic interlock until it touches the other side. You will be able to read the warning label “Interlock Defeated”.
6.2
Although KVANT uses the latest technology to protect all the critical components inside this laser
system against Electrostatic Discharge, the semiconductor laser diodes within this system are extremely
vulnerable to it. This is due to some of the electronic components being exposed when the top cover is
taken o.
If you decide to proceed with the Beam Alignment process yourself, it is absolutely essential that all the
common ESD protection rules are strictly followed. We don’t accept any responsibility for Electrostatic
Discharge damages to laser diodes caused by customer.
!

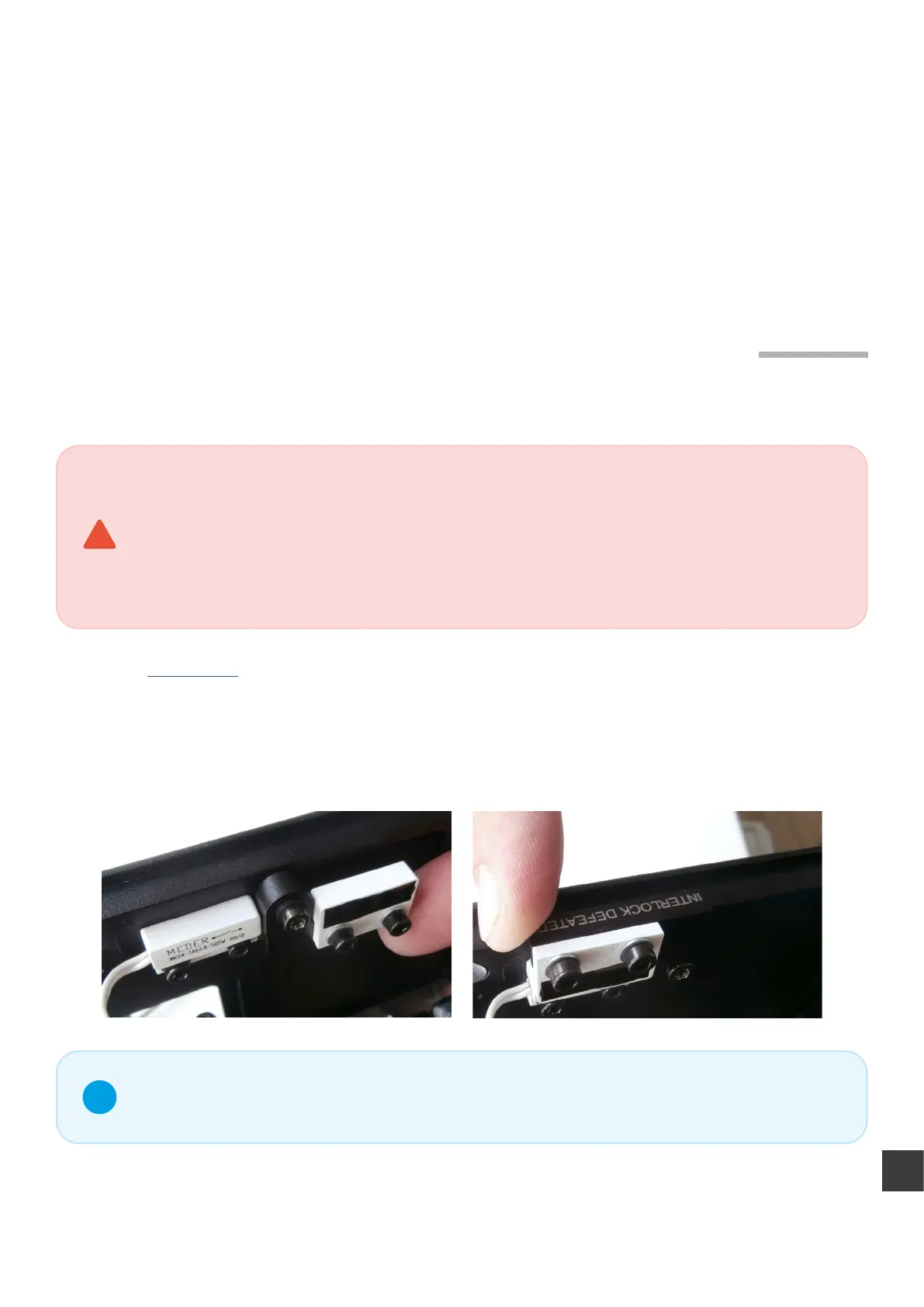

In the defeated position the label “INTERLOCK DEFEATED” becomes visible as shown in the image.
Placing the magnetic interlock in the defeated position raises the interlock higher than the edge of the
housing which will not allow the cover to be installed.
