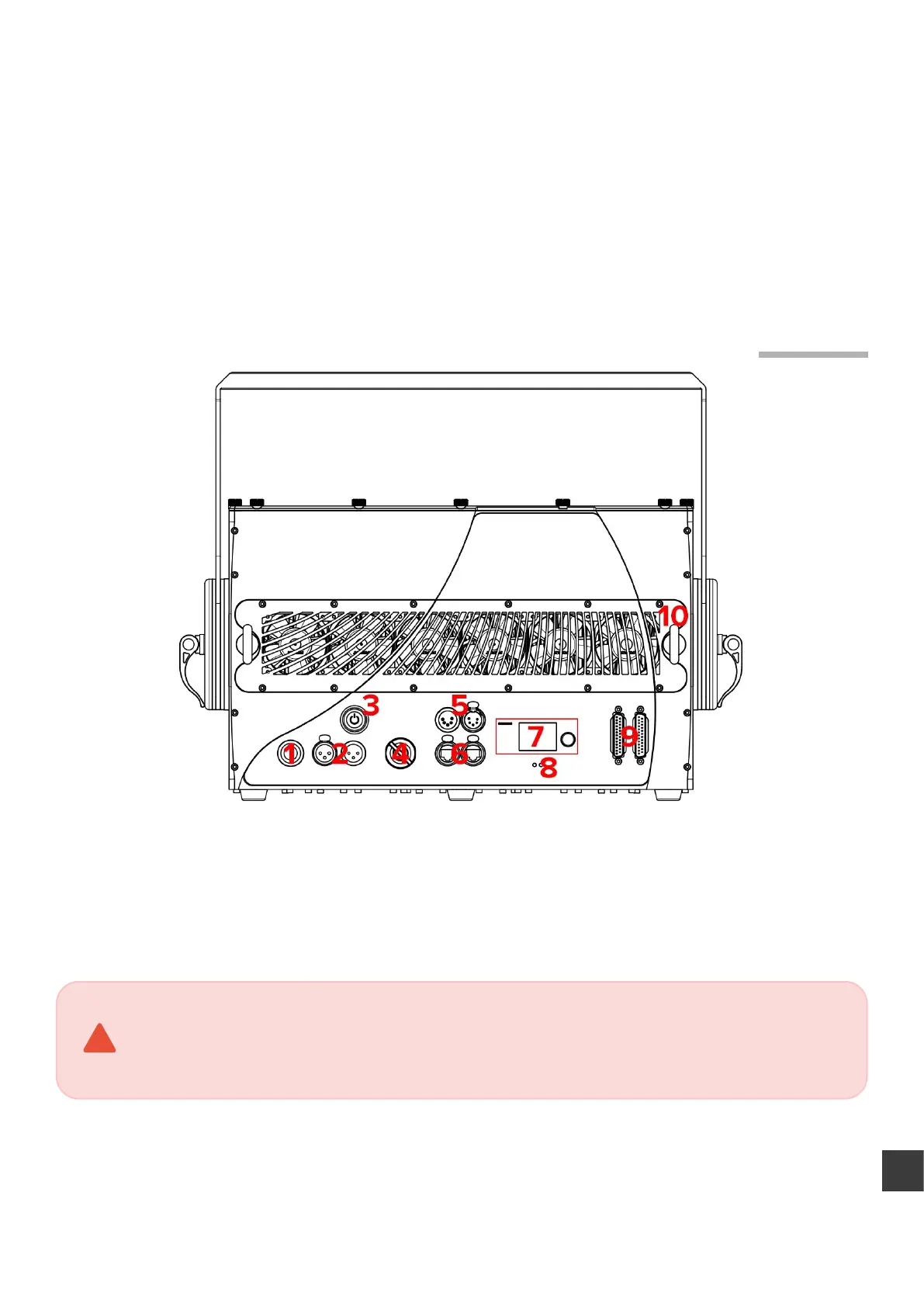

Rear View
1. Mains power. Use supplied Neutrik powerCON TRUE1 power cable to connect the laser system to mains power supply.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under
load or live.
2. E-STOP Remote connector, Interlock status indicator and User Interlock. In order to use the laser system, the
Interlock must be closed circuit. This is done by connecting the Emergency STOP Remote to the XLR REMOTE INPUT
socket on the projector using the supplied cable. The US version of the Emergency STOP must also have the Remote
Interlock Bypass inserted into it.
5.2
The E-STOP Remote is an integral part of the laser projector. It is there for the safety of the public as well
as the operator. In most countries it is required by law to have a fully working Emergency STOP in place
for every laser system used. Modifying or using anything other than the E-STOP Remote provided, in the
manner it was intended, may invalidate your laser projector’s variance.
!
To Next Page
