s. Continue by using Adjust L-Band Transmit
Power to adjust the power in 1 dB increments
as directed by the NOC and selecting Apply
changes after each increment (see Figure 56).
When directed, click Turn off signal and
complete.
NOTE: Take note of the Maximum transmit (TX)
power value provided by the NOC.
t. At Step 9, enter the P1dB compression value
and the Maximum transmit (TX) power
value provided by the NOC.
Then click Continue (see Figure 57)
u. At Step 10, click Exit commissioning mode
(see Figure 58).
v. At Step 11, click Return to dashboard (see
Figure 58).
w. Close the modem commissioning wizard.
Commissioning is complete!

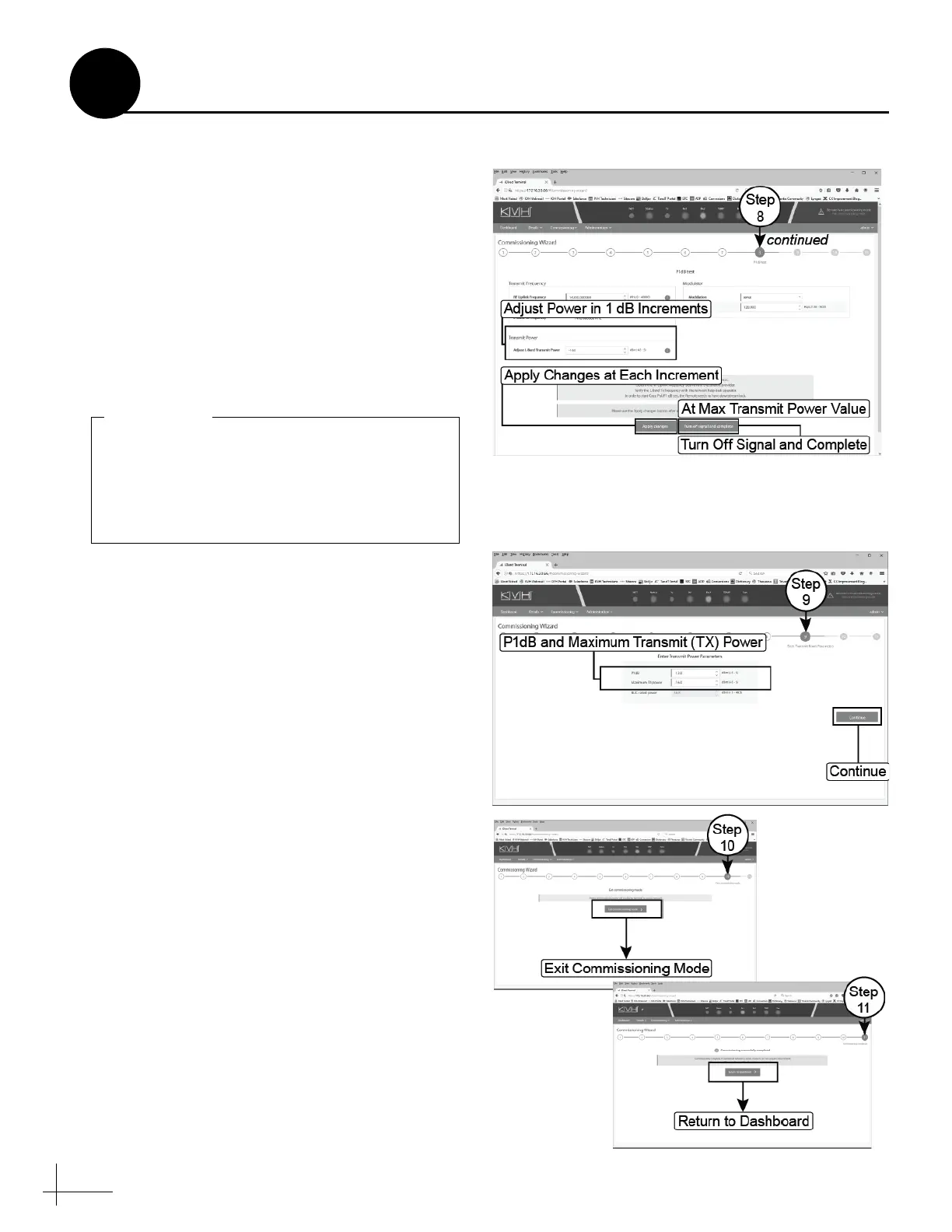

Figure 56: Commissioning – Step 8: BPSK Modulation continued
Double-check your entries for the P1dB and
Maximum TX Power. Maximum TX Power
should always be one decibel less than the
P1dB value. (For example, if P1dB = -15.0 dB
then Max TX power = -16.0 dB.)
IMPORTANT!
Figure 57: Commissioning – Step 9
Figure 58: Commissioning – Steps 10 and 11
Continued Commission the Modem
