KVH Industries TracVision R5SL Replacement Instructions

4
Step 2 - Check for Flash Wizard Updates
You need to check for flash file updates to ensure
you have the most current software available (see
Figure 7). Follow the Flash Update Wizard’s
onscreen instructions to check for updates. This
procedure requires a PC with the latest version of
the KVH Flash Update Wizard installed and an
Internet connection.
NOTE: Refer to the Flash Update Wizard’s Help file
for details on checking for updates.
Step 3 - Flash Both Antenna Boards
Connect a PC to your TracVision system, as
described in the Flash Update Wizard’s Help file.
Then follow the Flash Update Wizard’s onscreen
instructions to flash the antenna’s main and RF
boards.
NOTE: Refer to the Flash Update Wizard’s Help file
for details on flashing the antenna.
Step 4 - Configure the Antenna
Follow the steps below to configure the new
main PCB. You will enter PC commands into the
Flash Update Wizard’s “TracVision Antenna
Comms” window.
a. Set the switchplate’s POWER switch to the
On (up) (|) position (see Figure 8), then turn
on the receiver(s). Wait one minute for
system startup.
b. Type HALT then press Enter.
c. Type
DEBUGON then press Enter.
d. (R4SL Only) - Type
=TVR4SL then press
Enter.
e. (R4SL Only) - Skip to Step i on page 5.
f. (R5SL Only) - Type
=LSTEST then press
Enter to perform a limit switch test. Wait for
the test to pass or fail. If the test fails, contact
KVH Technical Support.
g. (R5SL Only) - Type EL,300 then press Enter.

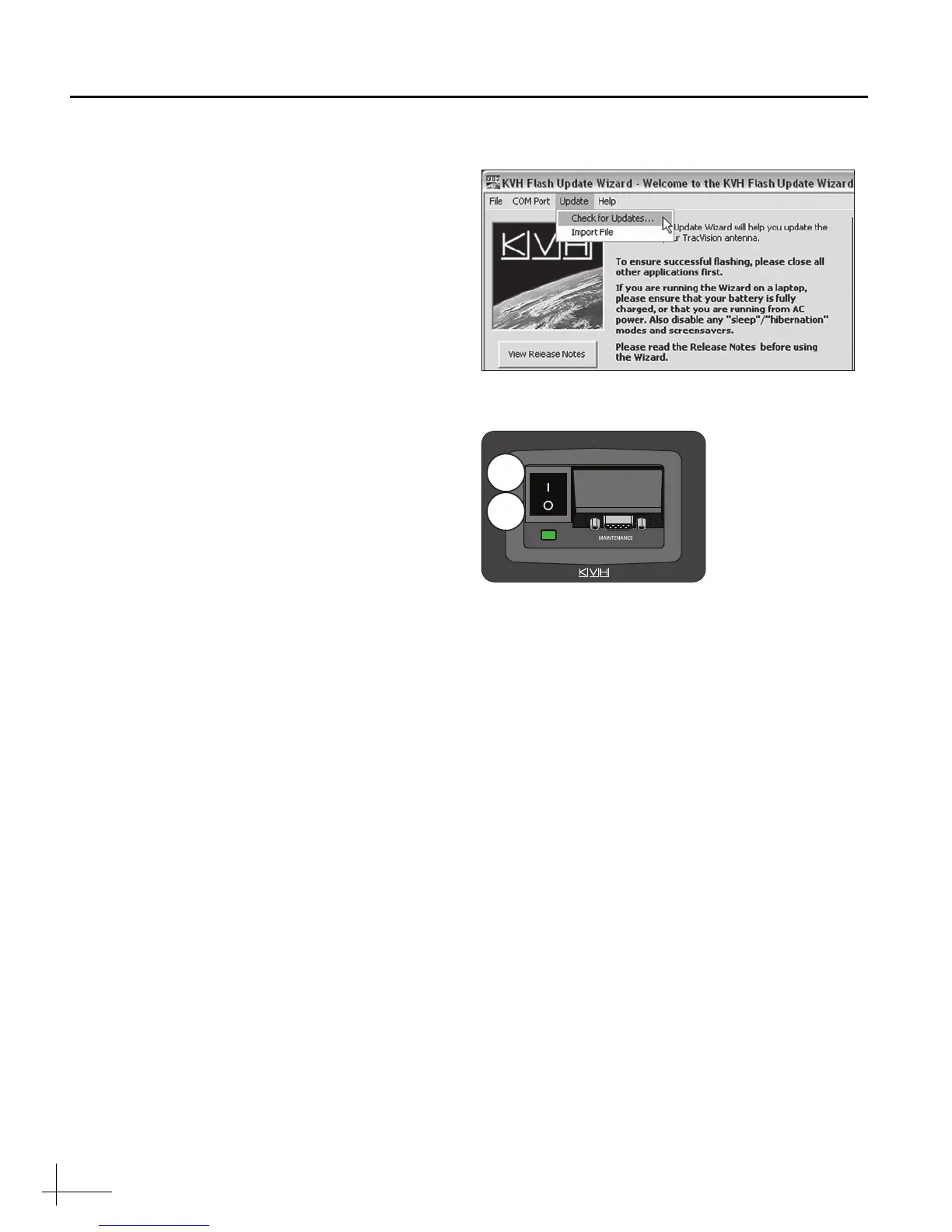

Figure 7 Check for Updates Option
