21/8"
54 mm
11/2"
38 mm
actual
size
T
What is the diameter of the hole in the door?
Install exterior keypad and mounting plate.Insert cylinder into keypad.
A
B
C
Diameter is 21/8"
(54 mm)
Diameter is 11/2"
(38 mm)
or
“D” is required for installation.
Install “D” on “F”.
“D” is not needed for
installation. Discard “D”.
Cable goes
underneath latch.
Locate screws
and keep them
within reach.
Support exterior assembly
during mounting plate installation.
Route cable through
center hole, then push
cable into side hole.
Insert key and
test latch. If latch
does not extend or
retract smoothly,
adjust screws (T).
Remove key when
inished and make
sure the latch bolt
is fully extended.
Keep parallel to
edge of door.
Tighten
screws evenly.
a
d
b
c
e
D
D
F
F
T
G
T (2x)
W
F
T
E

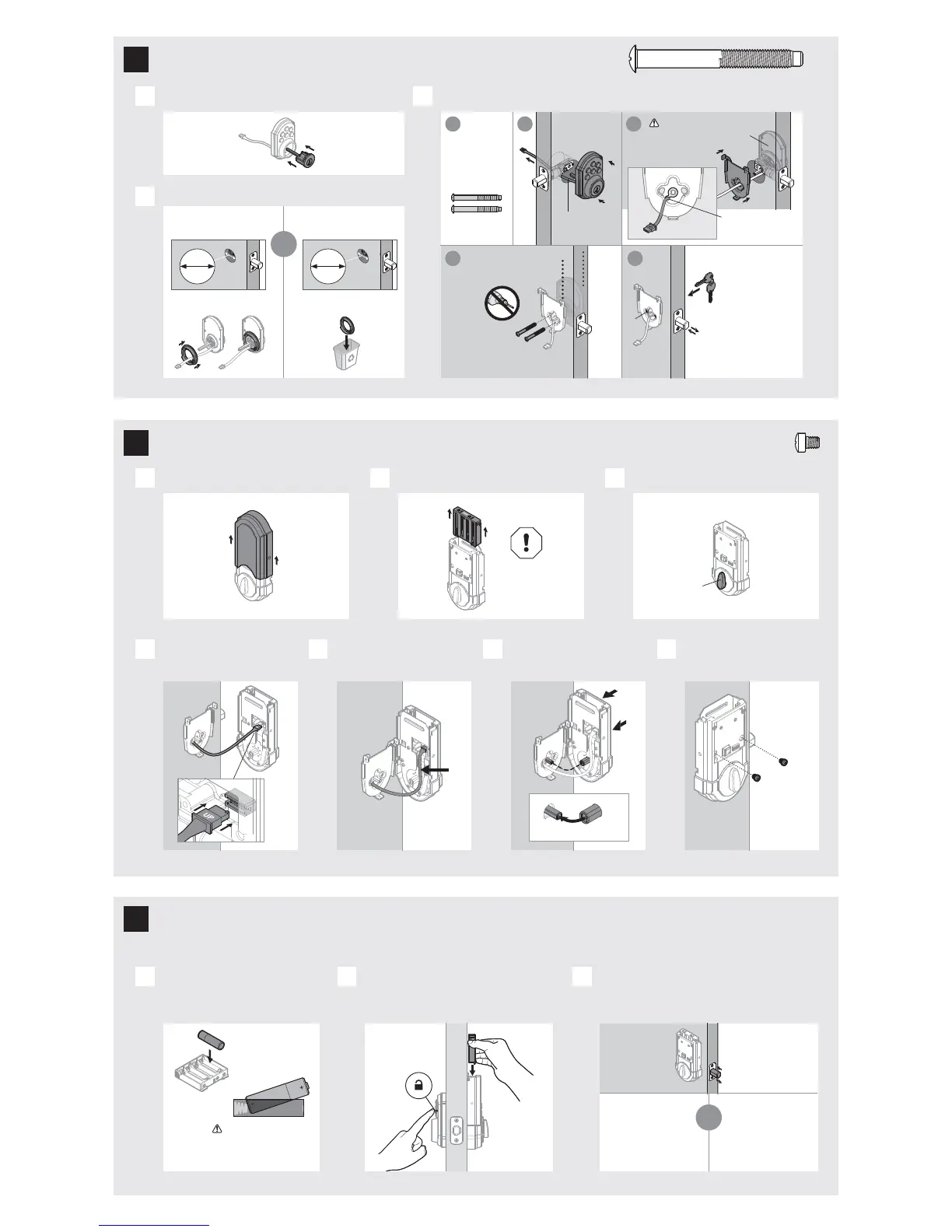

Install the exterior keypad
Remove battery cover. Remove battery pack. Make sure the turnpiece is in the vertical position.
A B C
vertical
M
L
K
L
Do not install
batteries
until step 5.
Note: Turnpiece
may not rotate
smoothly until
after step 5.
Connect cable. Ensure tight cable
connection.
Lay cable lat against the interior
housing.
Push turnpiece shaft onto
torque blade.
Secure interior assembly with
supplied screws.
D E F G
turnpiece
shaft
torque
blade
L
U (2x)
actual
size
U
Install the interior assembly
YES NO
or
Door handing process
was successful! Proceed
to next step after latch
bolt stops moving.
Remove battery
pack, wait 15 seconds,
then attempt the
process again.
This step will teach your lock the orientation of your door and is crucial to lock operation.
Install 4 AA batteries in battery pack. Press and HOLD the Lock button
while installing battery pack.
Hold button until the latch bolt
starts moving on its own.
Did the latch bolt retract and extend on its
own when the battery pack was installed?
A B C
Ensure correct polarity.
For best results, use
new, non-rechargeable
Alkaline batteries only.
K
Install the batteries and perform the door handing process
2 / 4
3
4
5
