KYMCO Mongoose 50-4T

6. ENGINE REMOVAL
6-2

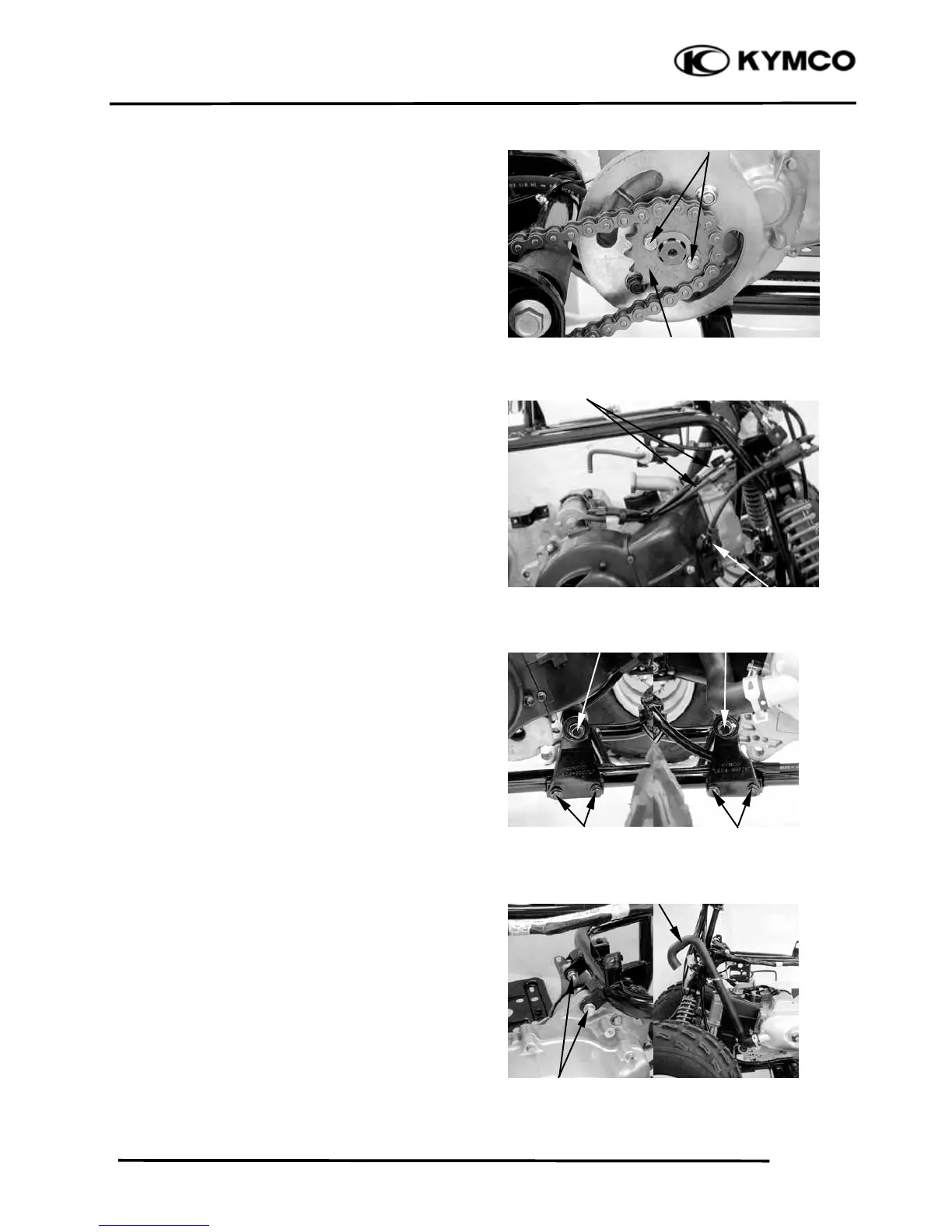

ENGINE REMOVAL
(90cc/70cc/50cc-4T)
Drain engine oil and transmission oil.
(Refer to chapter 3)
Remove frame covers and exhaust pipe.
(Refer chapter 2)
Remove air cleaner and carburetor. (Refer
to chapter 5)
Remove the two bolts on the drive sprocket.
Remove the drive sprocket and washer.
Remove the spark plug cap.
Disconnect the A.C. generator and starter
motor couplers.
Remove the front two mounting bolts and
two nuts at the engine right/left side.
Remove the four bolts and then remove the
left and right engine brackets at the engine
right/left side.
Remove the rear two mounting bolts and
two nuts.
Disconnect the inlet hose from the frame.
Bolts
A.C. Generator/Starter Motor Couplers
Bol
t
and Nu
t
Bolts
Inlet Hose
Drive Sprocke
t
Spark Plug Cap
Bol
t
and Nu
t
Bolts
Bol
t
s and Nuts
