5. FUEL SYSTEM
5-7
THROTTLE VALVE
DISASSEMBLY

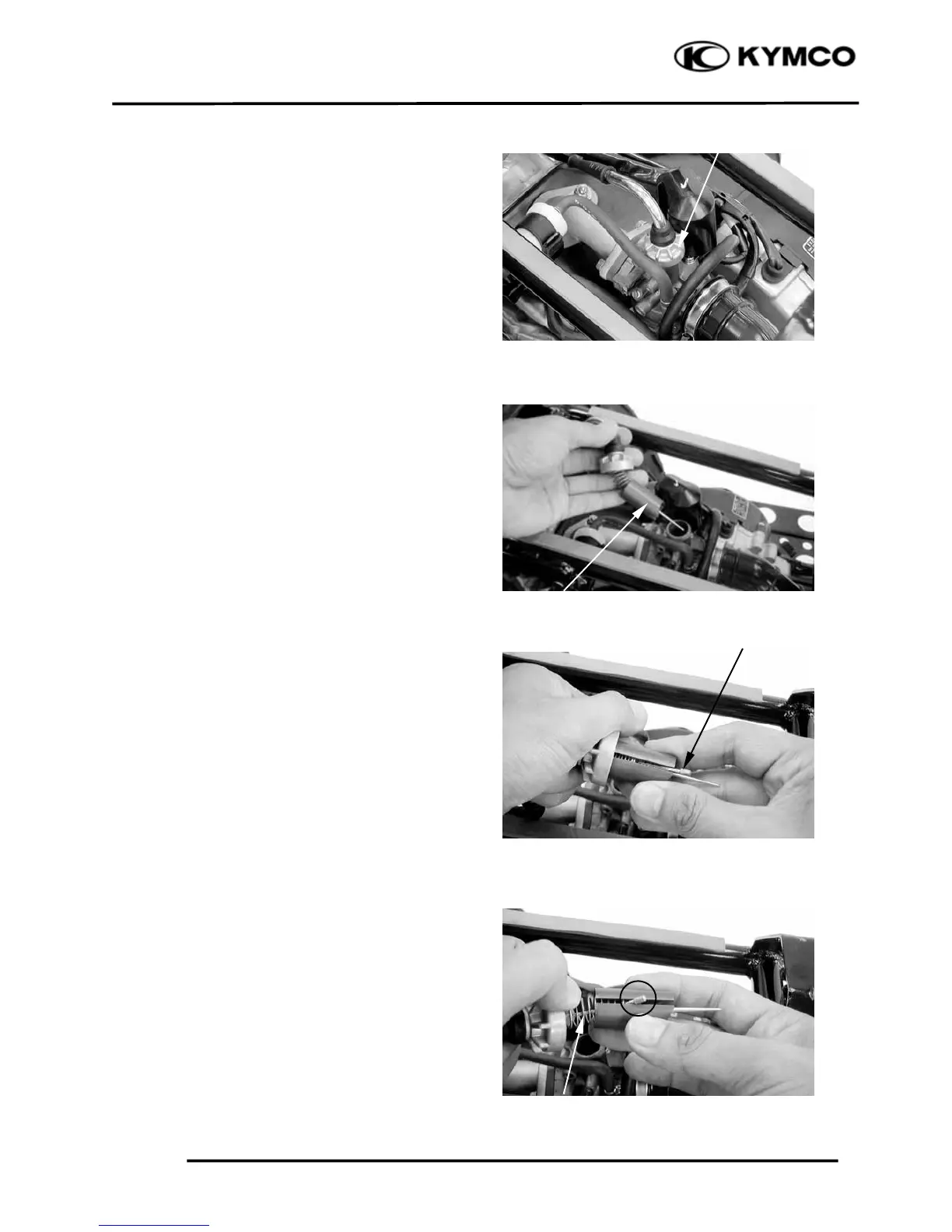

Remove the fuel tank. (Refer to “FUEL
TANK” section in the chapter 5)
Remove the carburetor cap.
Pull out the throttle valve.
Compress the spring to disconnect the
throttle cable by hand.
Remove the spring from the throttle valve
Carburetor Cap
Spring
Throttle Valve
Throttle Cable
To Next Page
