KYMCO Mongoose 50-4T

9.DRIVE AND DRIVEN PULLEYS
9-7

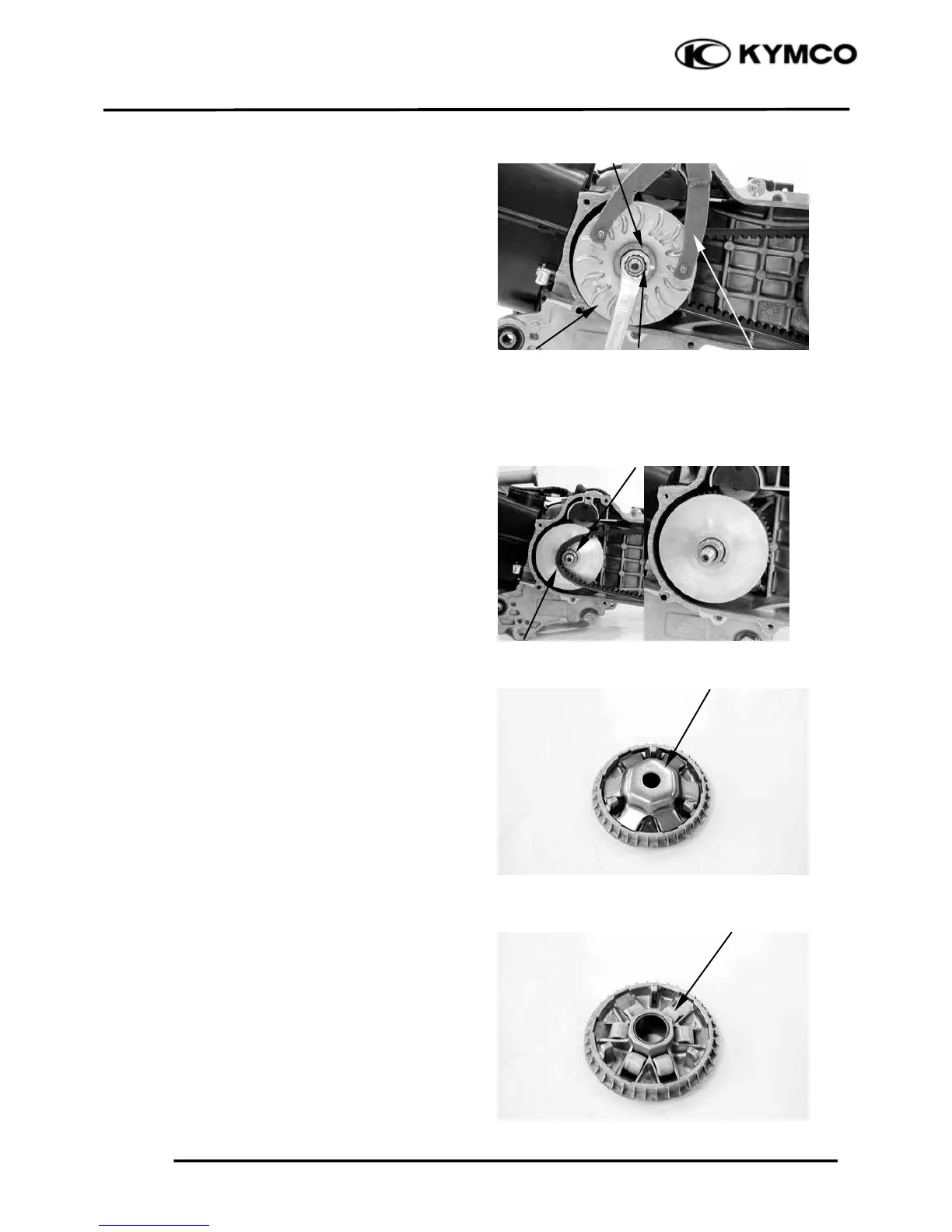

DRIVE PULLEY
REMOVAL
Remove the left crankcase cover. (Refer to
the “LEFT CRANKCASE COVER
REMOVAL” section in the chapter 9)
Hold the drive pulley using a universal
holder and remove the drive face nut and
washer.
Remove the drive pulley.
Special tool
Universal Holder A120E00017
Remove the movable drive face assembly and
drive pulley collar.
DISASSEMBLY
Remove the ramp plate.
Remove the six weight rollers.
Drive Pulley Colla
r
Drive Face
Ramp Plate
Rolle
r
Drive Pulley
N
u
t
Starting Ratche
t
Universal Holde
r
