7. CYLINDER HEAD/VALVES
(90cc/70cc/50cc-4T)
7-6

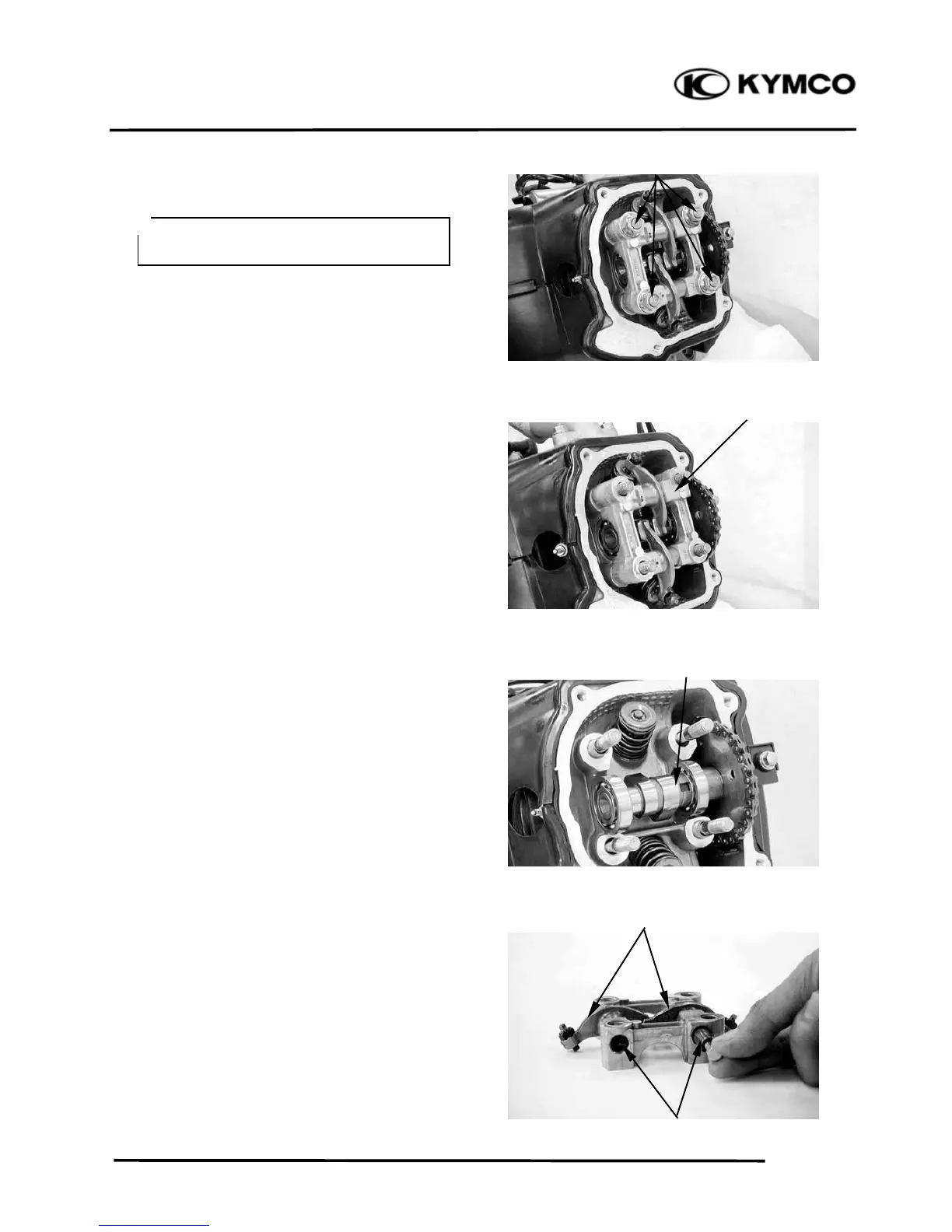

Remove the four camshaft holder nuts and
washers.
Remove the camshaft holder and dowel
pins.
Remove the camshaft gear from the cam
chain and remove the camshaft.
CAMSHAFT HOLDER DISASSEMBLY
Take out the valve rocker arm shafts using a
5mm bolt.
Remove the valve rocker arms and arm
shafts.
Diagonally loosen the cylinder head nuts
in 2 or 3 times.
＊
N
u
t
s and Washers
Camshaft Holde
r
Camshaf
t
Rocker Ar
m
s
Rocker Arm Shaf
t
s
