INSPECTION
Inspect the kick starter spindle and gear for
wear or damage.
Inspect the return spring for weakness or
damage.
Inspect the kick starter spindle bushings for
wear or damage.
Inspect the starter driven gear for wear or
damage.
Inspect the friction spring for wear or
damage.
Inspect the kick starter spindle and starter
driven gear forcing parts for wear or damage.
ASSEMBLY
Install the kick starter spindle bushing and
return spring onto the left crankcase cover.
Install the kick starter spindle.

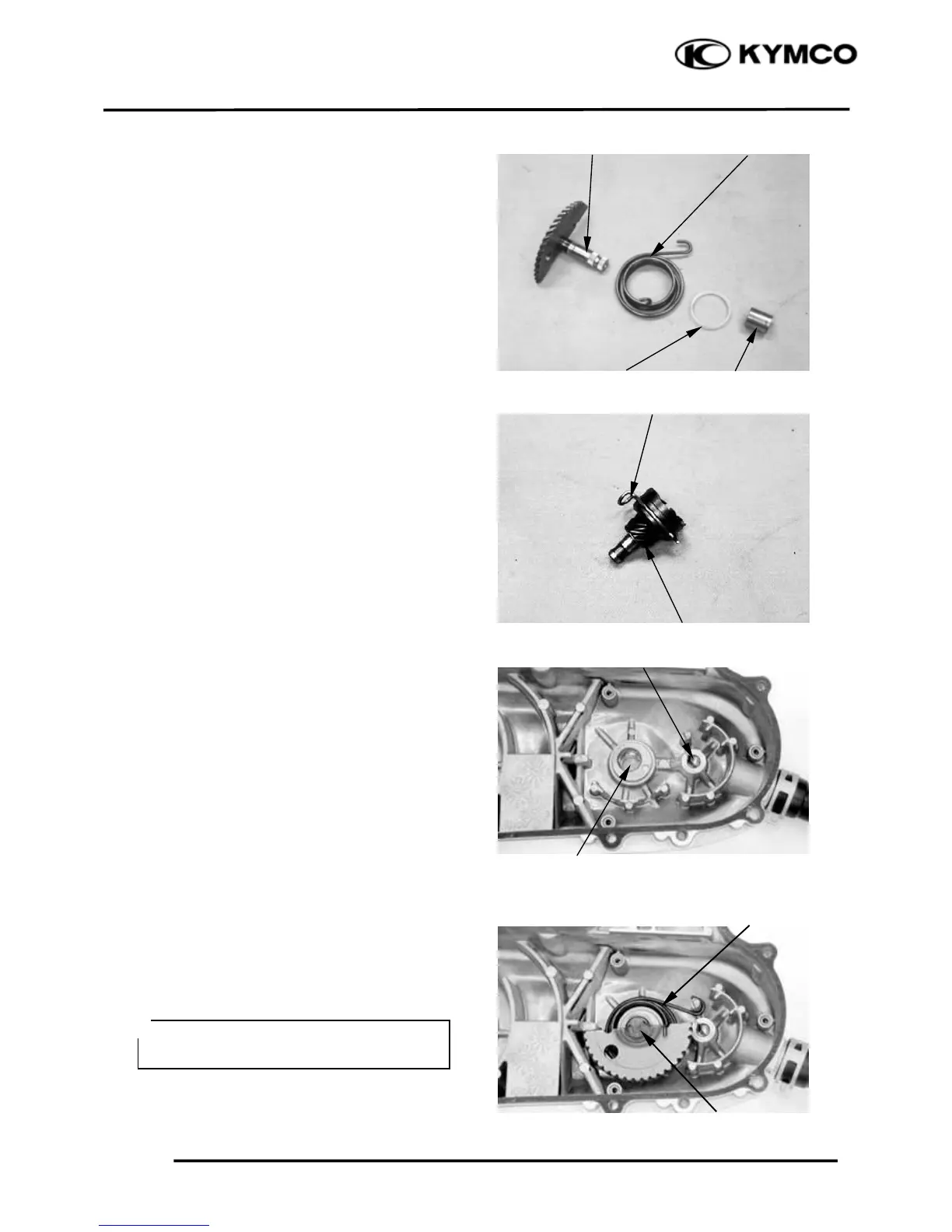

Starter Driven Gear Shaft Forcin
g
Par
t
Friction Spring
Starter Driven Gea
r
Spindle
Return Spring
Plastic Bushing
Spindle Bushing
Kick Starter Spindle Forcing Par
t
Kick Starter S
p
indle
Return S
p
rin
g
Apply grease on to the bushing an
d
spindle teeth.
＊
