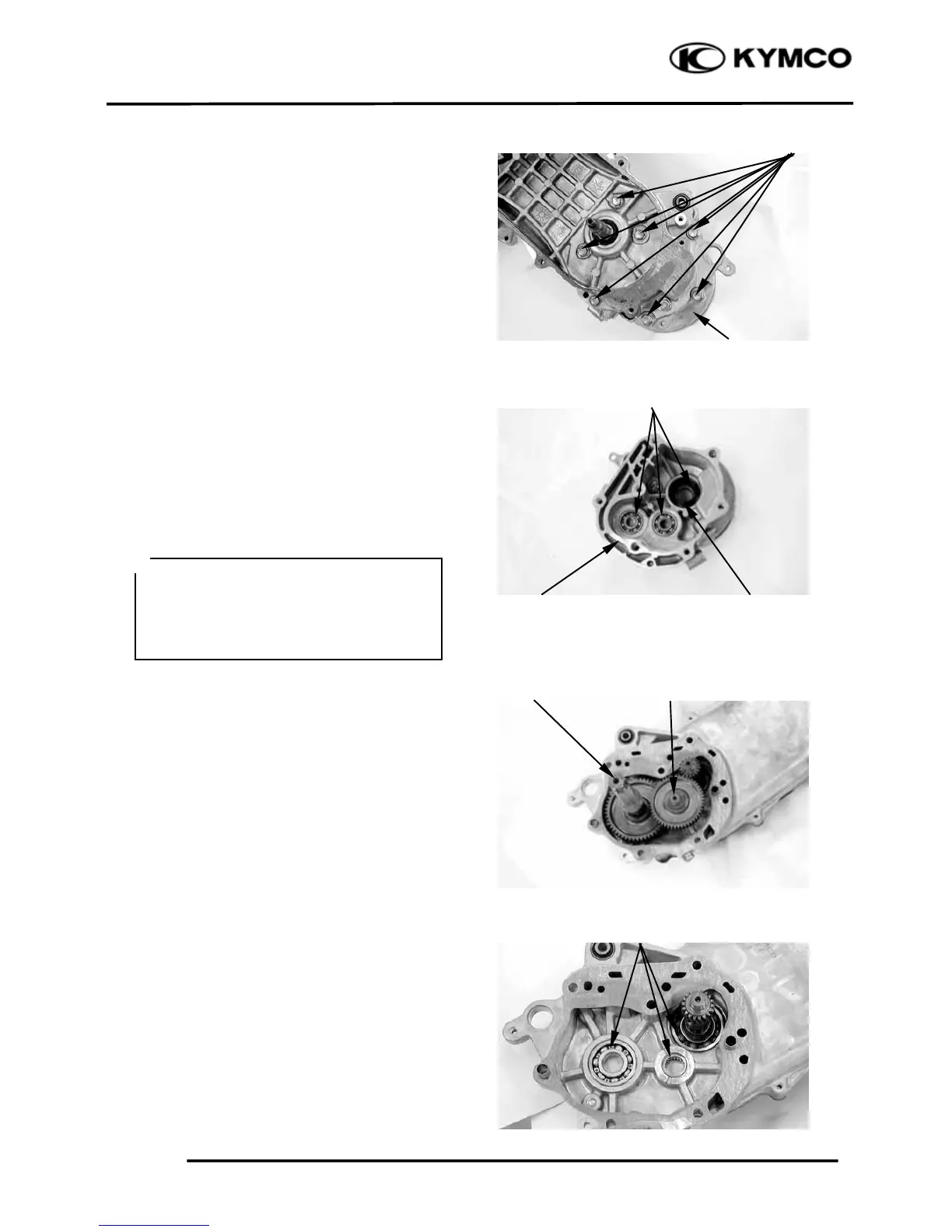

TRANSMISSION CASE COVER
REMOVAL
Remove the drive sprocket. (
Ö6
-2)
Remove the left crankcase cover. (
Ö
9-4)
Remove the clutch/driven pulley. (
Ö
9-9)
Drain the transmission gear oil into a clean
container.
Remove the transmission case cover
attaching bolts.
Remove the transmission case cover.
Remove the gasket and dowel pins.
Inspect the bearings for allow play in the
transmission case cover or the bearings turn
roughly.
If any defects are found, replace the bearing
with a new one.
Inspect the final shaft bearing oil seal for
wear or damage.
Remove the final gear and countershaft.
Inspect the bearings for allow play in the
transmission case cover or the bearing turns
roughly.
If any defects are found, replace the bearing
with a new one.
Bearings
Transmission Cove
r
Bolts
Transmission Case Cove
r
Final Gea
r
Oil Seal
Countershaf
t
Bearings
Do not remove the transmission case
cover except for necessary part
replacement. When replacing the drive
shaft, also replace the bearing and oil
seal.
＊
