10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-5

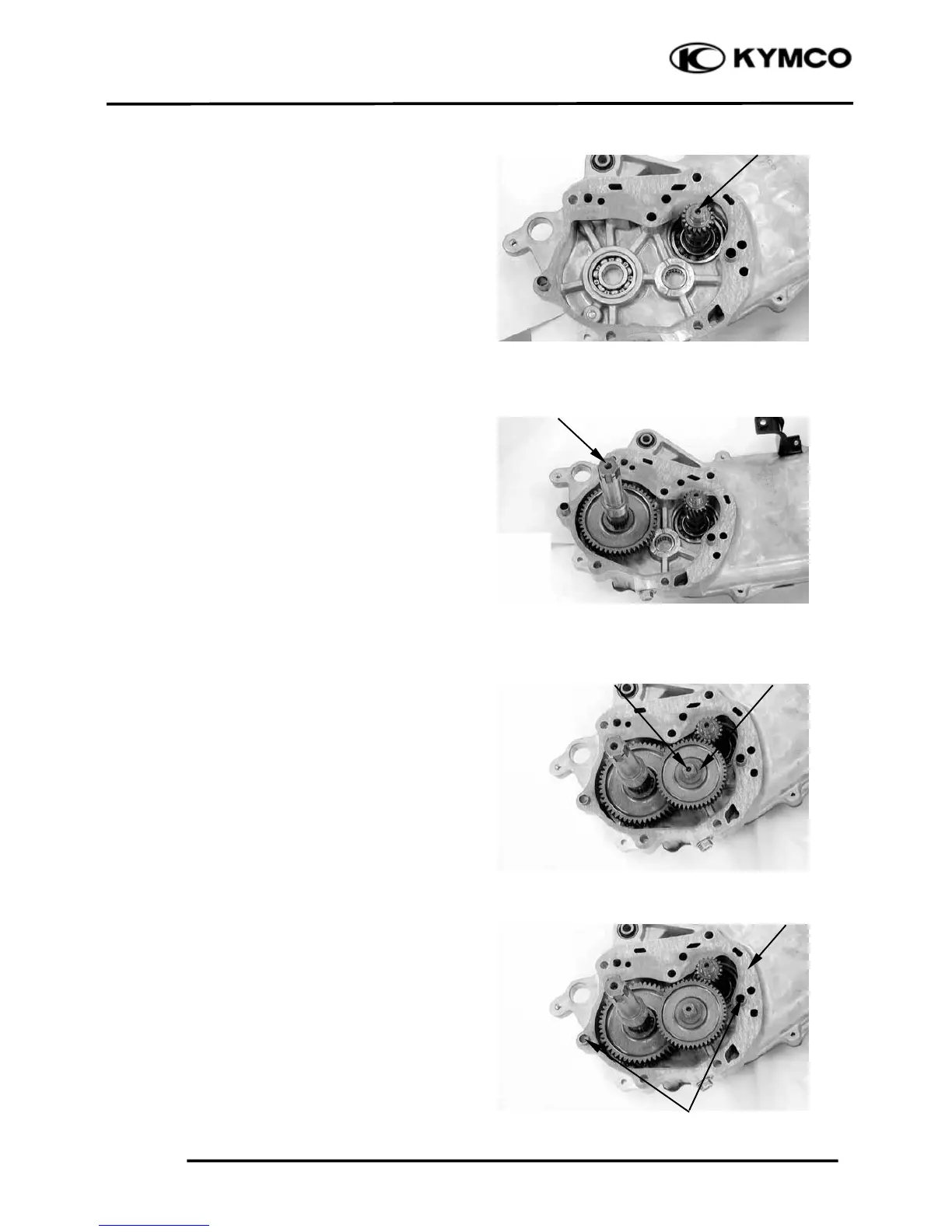

INSTALLATION
Reverse the “TRANSMISSION REVOVAL”
section procedures.
Install the primary drive axle into the left
crankcase.
Install the final gear and final shaft into left
crankcase.
Install the countershaft and washer into the
left crankcase.
Install the resin washer onto countershaft.
Install the dowel pins and a new gasket onto
the right crankcase.
Install the transmission case cover and tighten
the transmission case cover bolt.
Torque: 27 N-m (2.7 kgf-m, 19 lbf-ft)
Primary Drive Axle
Final Shaf
To Next Page
