11.CRANKSCASE/CRANKSHAFT
11-6
CRANKCASE/CRANKSHAFT
INSTALLATION

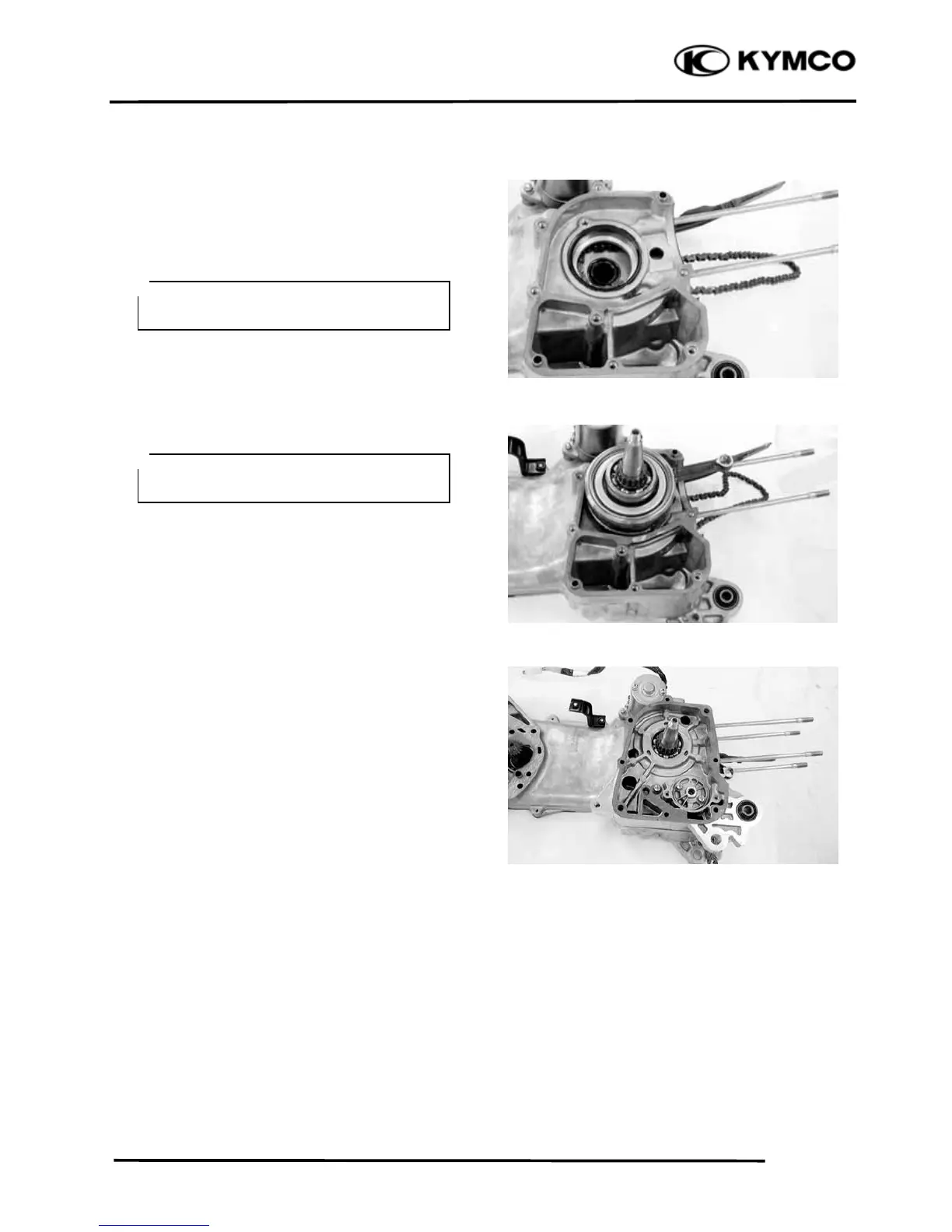

Install the cam chain into the left crankcase.
Install the dowel pins and a new gasket onto
the left crankcase.
Install the crankshaft into the left crankcase.
Install the right crankcase.
Tighten the crankcase attaching bolt.
Torque: 10 N-m (1 kgf-m, 7 lbf-ft)
Place the right crankcase over the
crankshaft and onto the left crankcase.
＊
When installing the crankshaft, be
careful not to damage the oil seal.
＊
