11.CRANKCASE/CRANKSHAFT
11-11

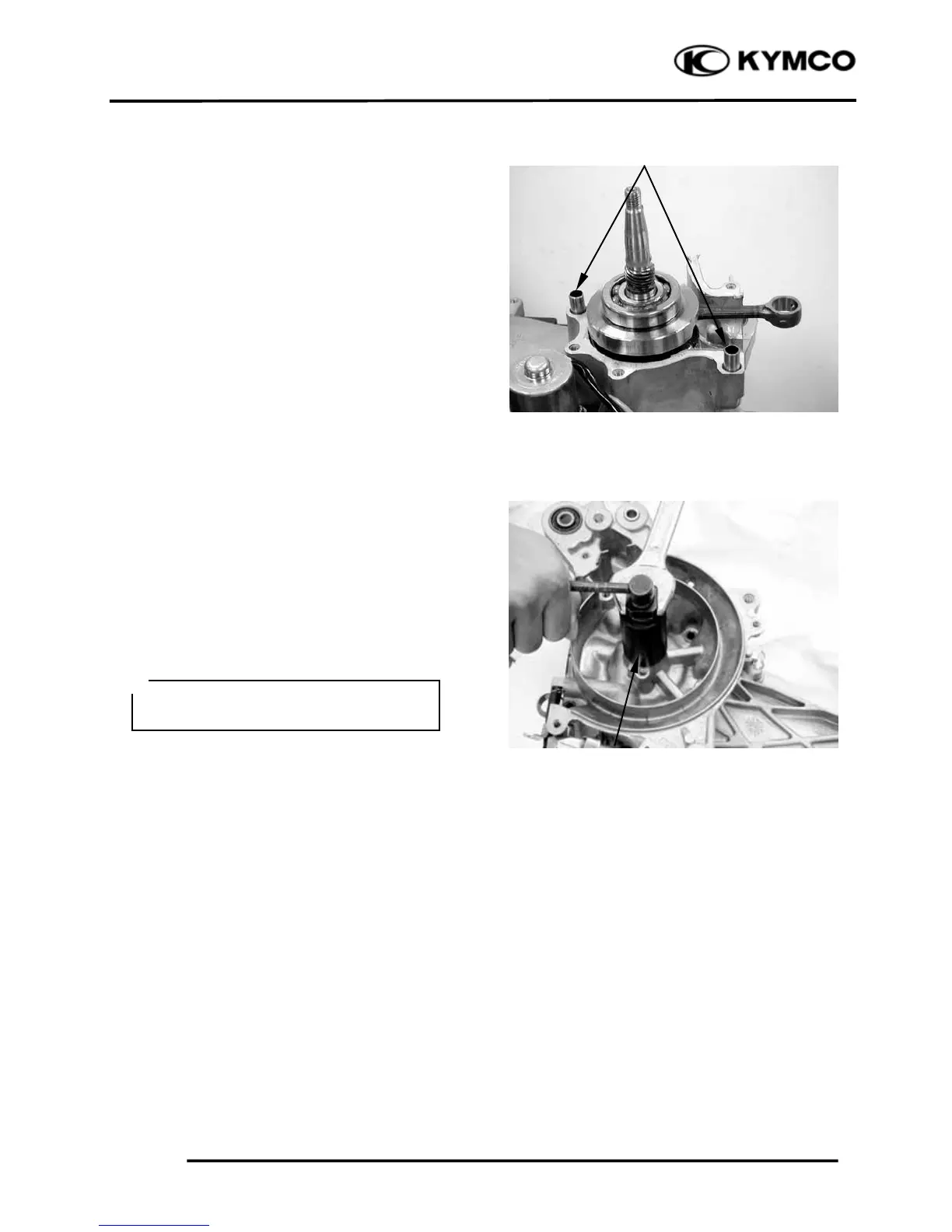

CRANKCASE ASSEMBLY
Install the dowel pins and a new gasket to
the crankcase mating surface.
Assemble the crankcase halves.
Special tool
Crankshaft & crankcase install tool
A120E00024
The distance between the right crankcase oil
seal and crankcase surface is about 12.5±0.5
mm (0.5±0.0.02 in).
Dowel Pins
Crankshaft & Crankcase Install Tool
When installing the oil seal, be careful
to press it with even force.
＊
