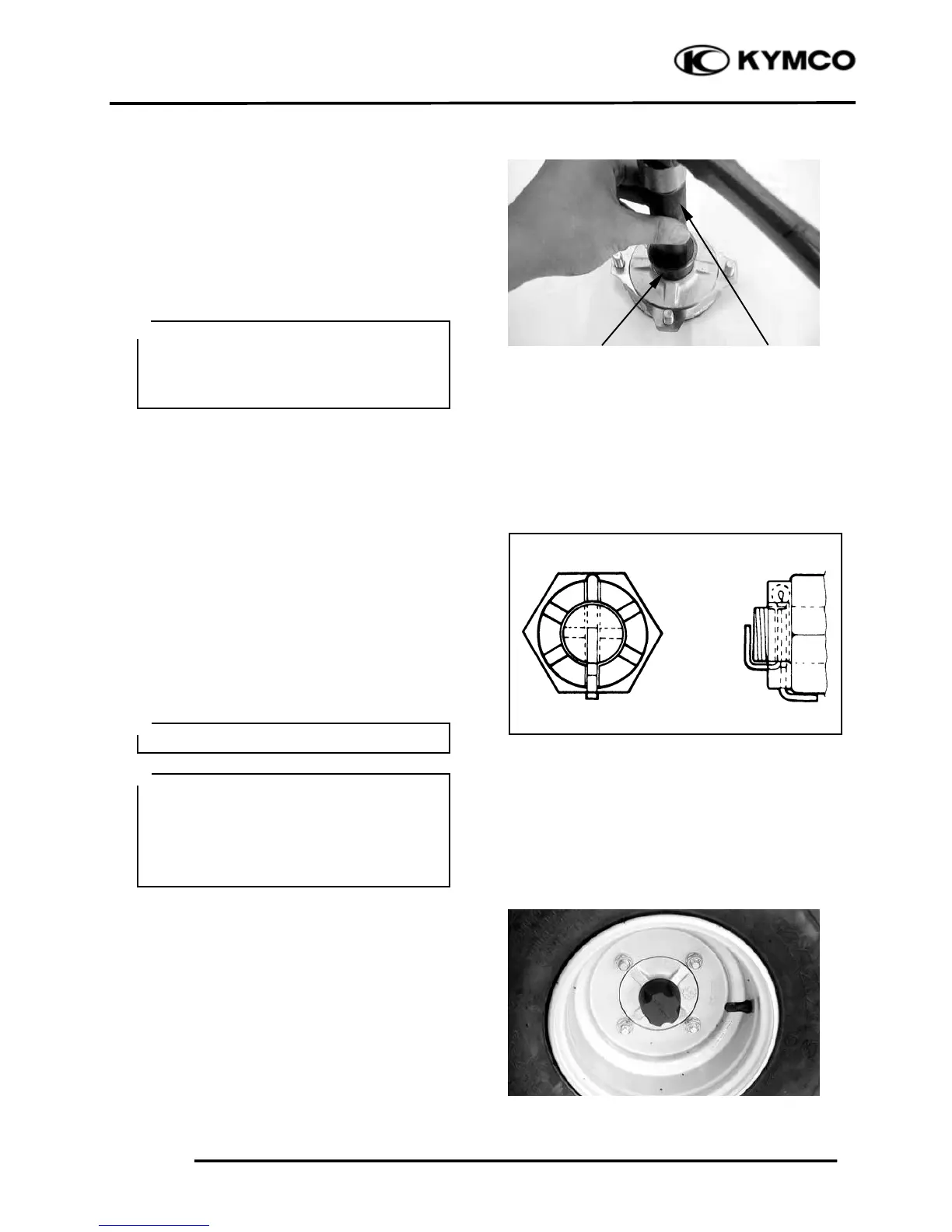

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-7
ASSEMBLY
Apply grease to a new dust seal lip and
install the dust seal.
Pack all bearing cavities with grease.
Drive in the left bearing.
Install the distance collar.
Drive in the right bearing.
Special tool
Oil seal and bearing install A120E00014
INSTALLATION
Reverse the “FRONT WHEEL
REMOVAL” procedures.
Apply the grease onto the bearings and oil
seal lips of the wheel hub.
Install wheel hub, side collar, washer and
tight the nut (wheel hub).
Torque: 60 N-m (6 kgf-m, 43 lbf-ft)
Install cotter pins and nut cover.
Install the front wheel and tighten the nuts
(wheel).
Torque: 45 N-m (4.5 kgf-m, 32 lbf-ft)
Driver Handle
Outer Drive
• Do not allow the bearings to tilt while
driving them in.
• Drive in the bearing squarely with the
sealed end facing out.
＊
Do not loosen the axle nut after torque
tightening. If the axle nut groove is not
aligned with the cotter pin hole, align
groove with the hole by tightening up on
the axle nut.
＊
Always use a new cotter pin.
＊
