14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
14-10
A.C. GNERATOR INSTALLATION
Reverse the A.C. GENERATOR
REMOVE” procedures.
Install the A.C. generator stator and pulser
coil onto the right crankcase.
Install the A.C. generator wire rubber
sleeve.
Tighten the stator and pulser coil bolts.
Torques:
Pulser Coil: 5 N-m (0.5 kgf-m, 3.6 lbf-ft)
Stator: 10 N-m (1 kgf-m, 7 lbf-ft)
Connect the A.C. generator wire connector.
Clean the taper hole in the flywheel off any
burrs and dirt.
Install the woodruff key in the crankshaft
keyway.
Install the flywheel onto the crankshaft with
the flywheel hole aligned with the
crankshaft woodruff key.

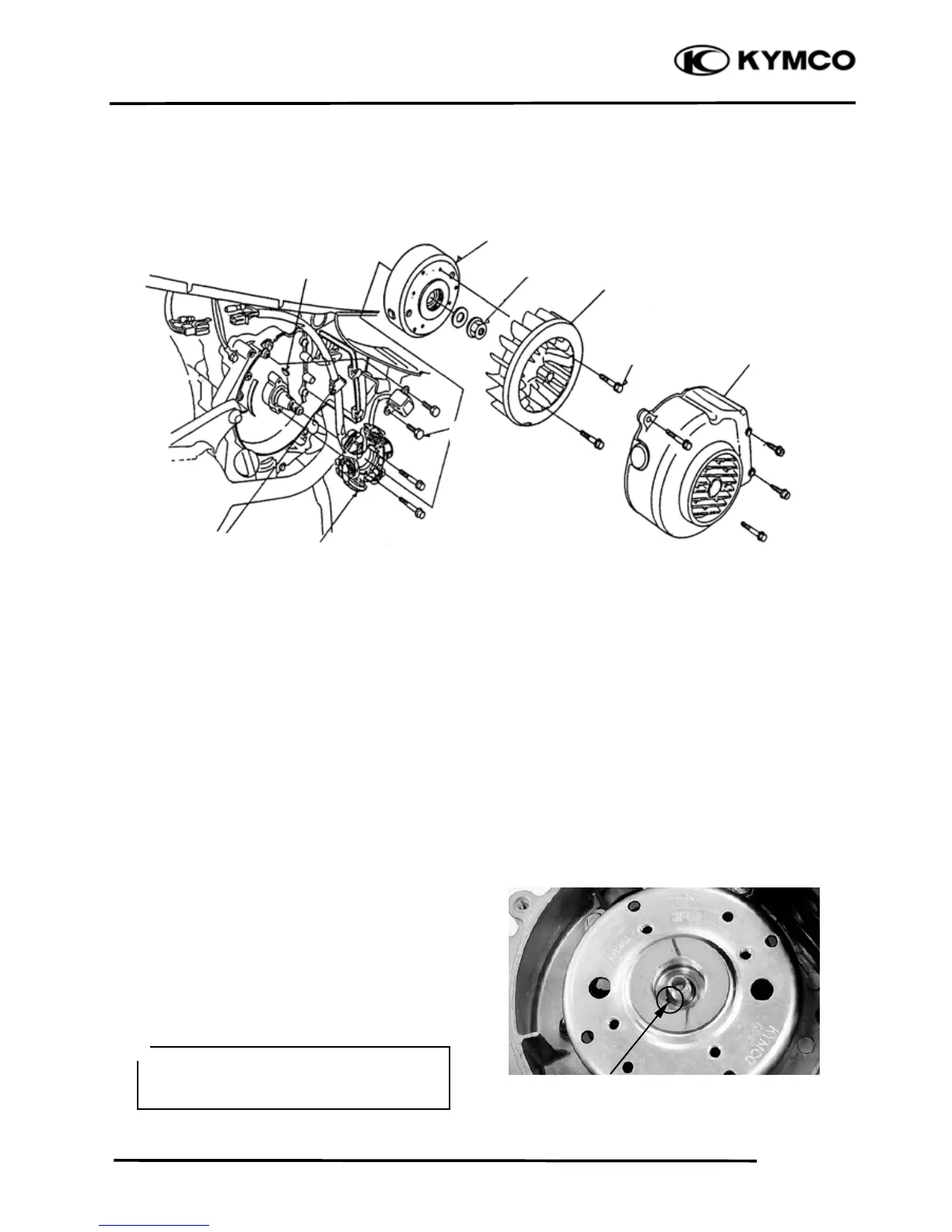

A.C. Generato
r
Wire Rubber
Sleeve
Woodruff Key
Flywheel
Cooling Fan
Stato
r
4 kgf-m
0.8 kgf-m
The inside of the flywheel is magnetic.
Make sure that there is no bolt or nut
before installation.
＊
Woodruff Ke
y
0.5 k
g
f-
m
Fan Cove
r
